5. Press the NMT sensor on a vertical wall with the sensor cable parallel to the floor. Keep the

sensor from moving. Click Next to continue with the check.

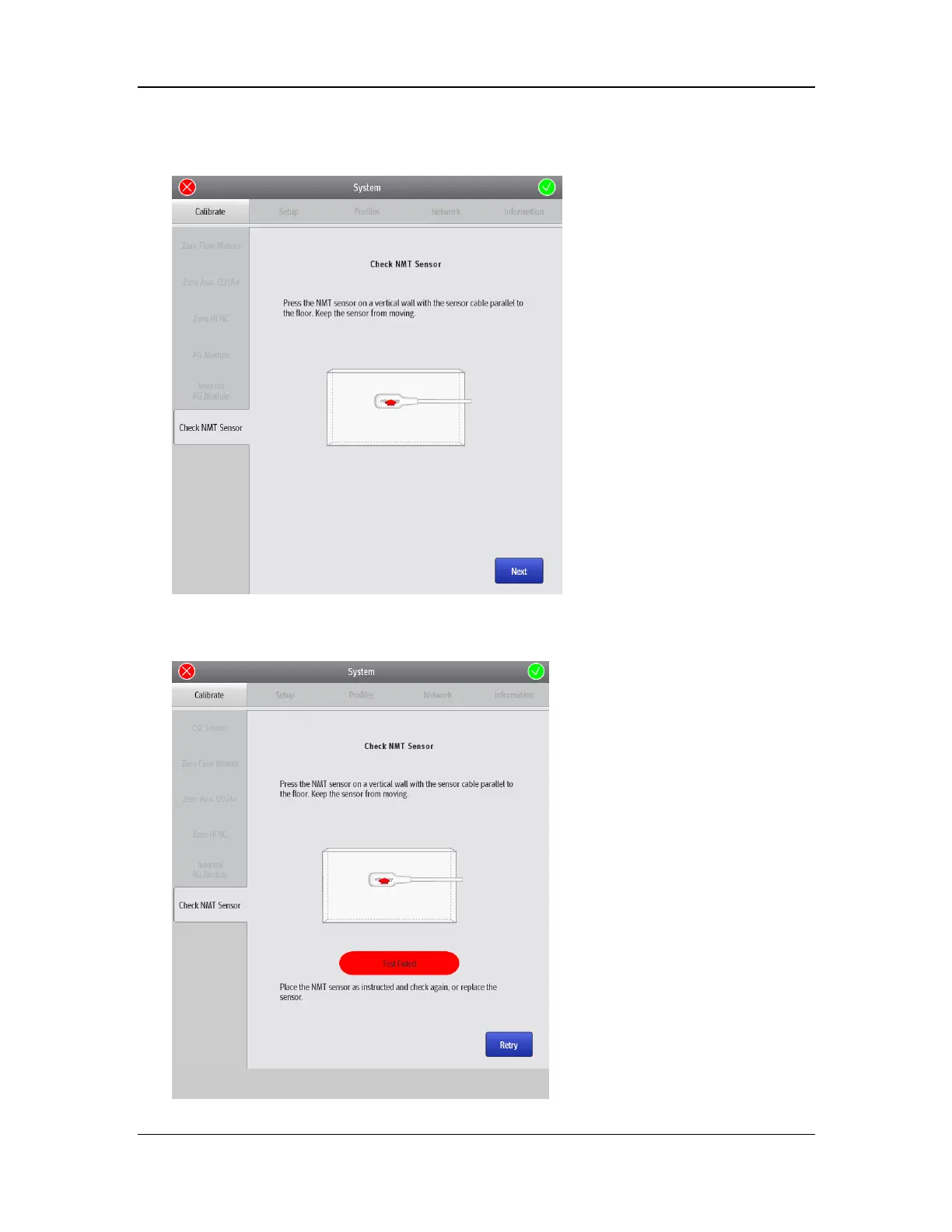

6. The screen shown below is displayed after the NMT sensor check is completed.

7. The screen shown below is displayed if the NMT sensor check fails. Select Retry to do the check

again.
