B-1

B Guide Rail Load

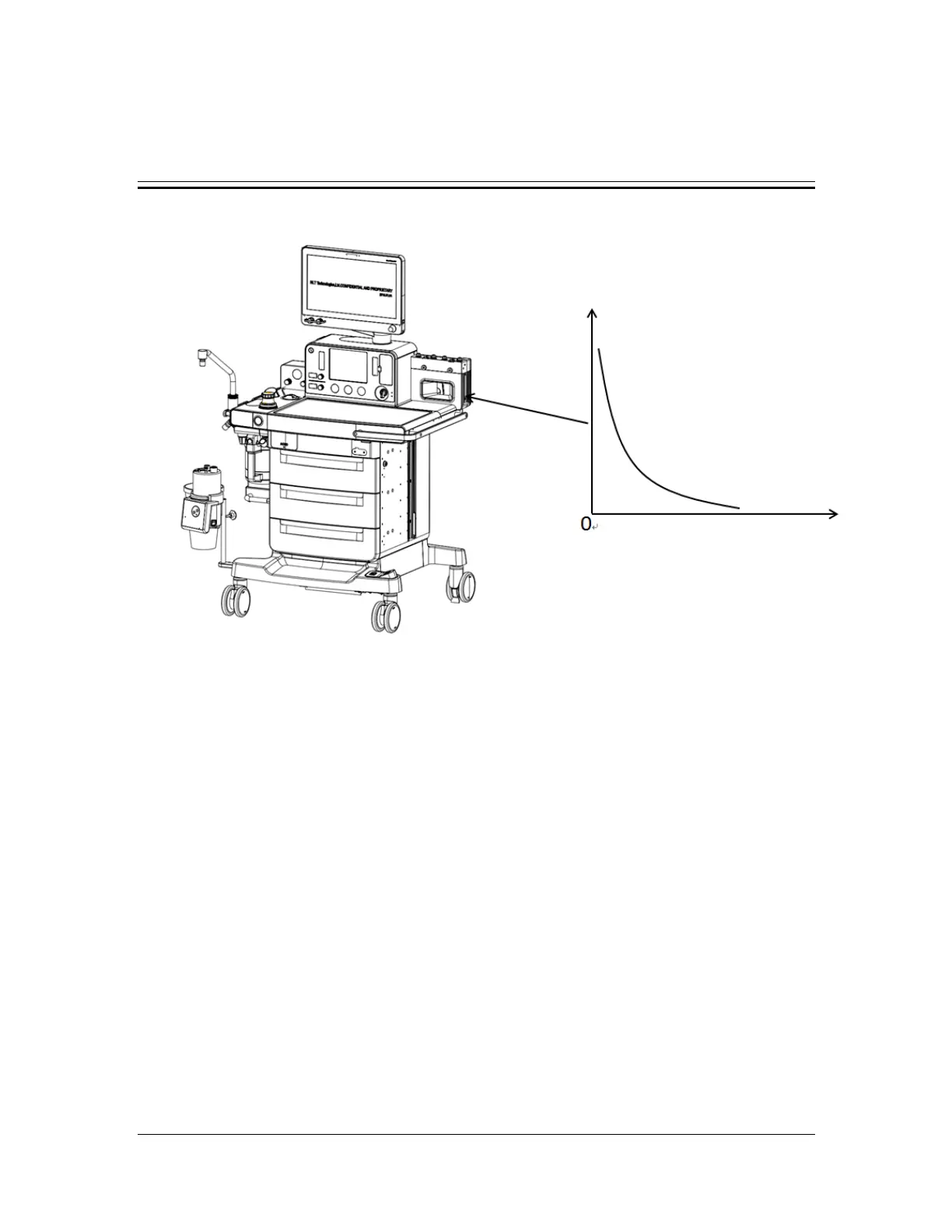

The load of the GCX guide rail for the A8 anesthesia machine is as follows:

CIS is mounted. The 12-inch arm accessory has the largest load (bending moment) among all arm

accessories recognized by Mindray, with a maximum load of 13.6 kg (30 lbs). Therefore, the

force can be calculated as follows:

max = 13.6 kg × 304.8 mm = 4150 kgf.mm (30 lbf ft)

M (kg)

L (mm)

L = 4150/M

L (mm): maximum arm length

M (kg): load
