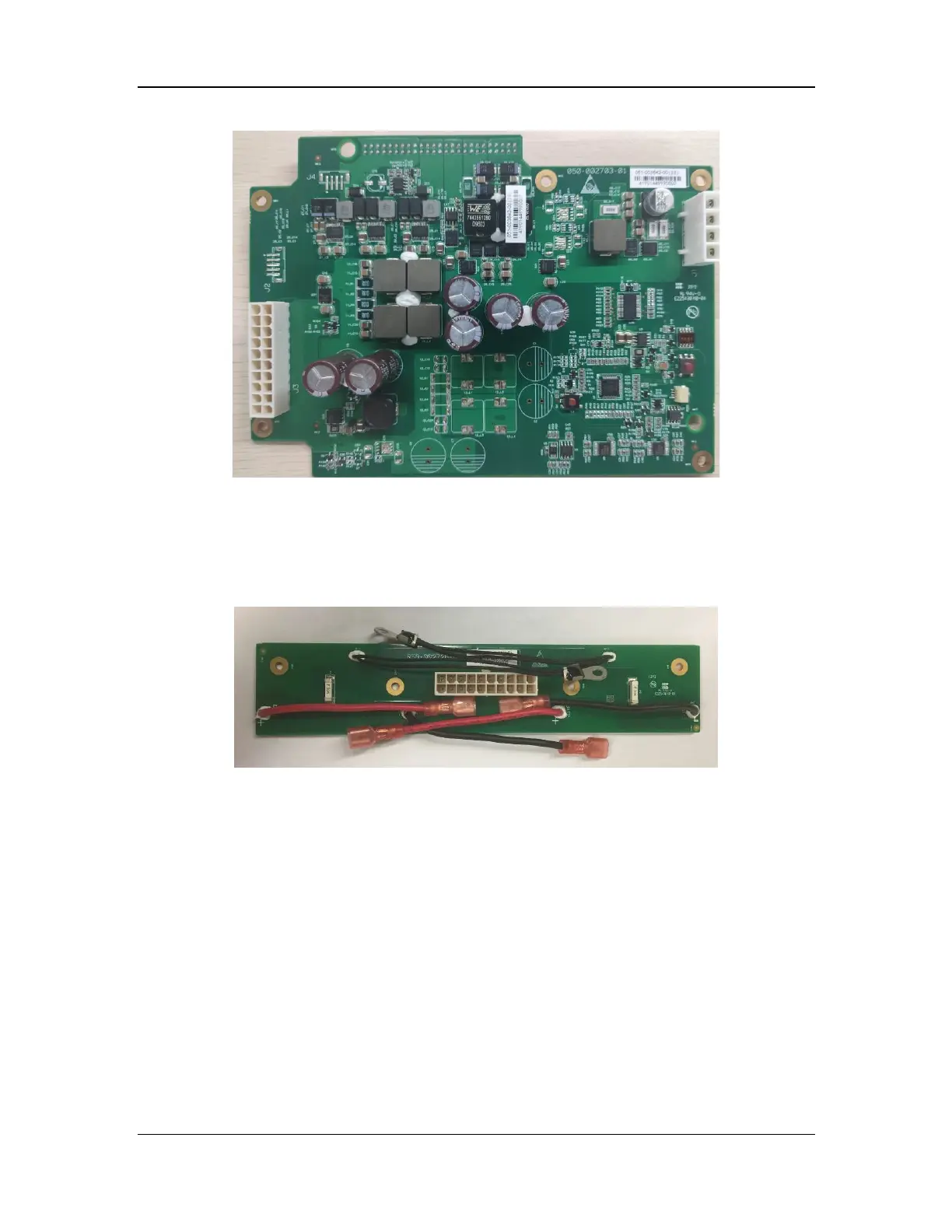

DC-DC board (A8)
2.2.2.3 Battery Adapter Board
Two types of battery adapter boards are available: dual-battery adapter board and single-battery
adapter board. The battery adapter board is an optional part installed inside the battery box. The
battery adapter board transfers battery signals to the motherboard and provides the following
functions: battery in-position detection, temperature detection, and current protection.
Dual-battery adapter board
2.2.2.4 Auxiliary Output
Auxiliary outputs supply power for other devices or instruments. The voltage ranges and
frequencies of the power supplies should be the same as those of the input mains supply for the
anesthesia machine. The auxiliary output system has four auxiliary outputs, each with a circuit
breaker.
