2-31

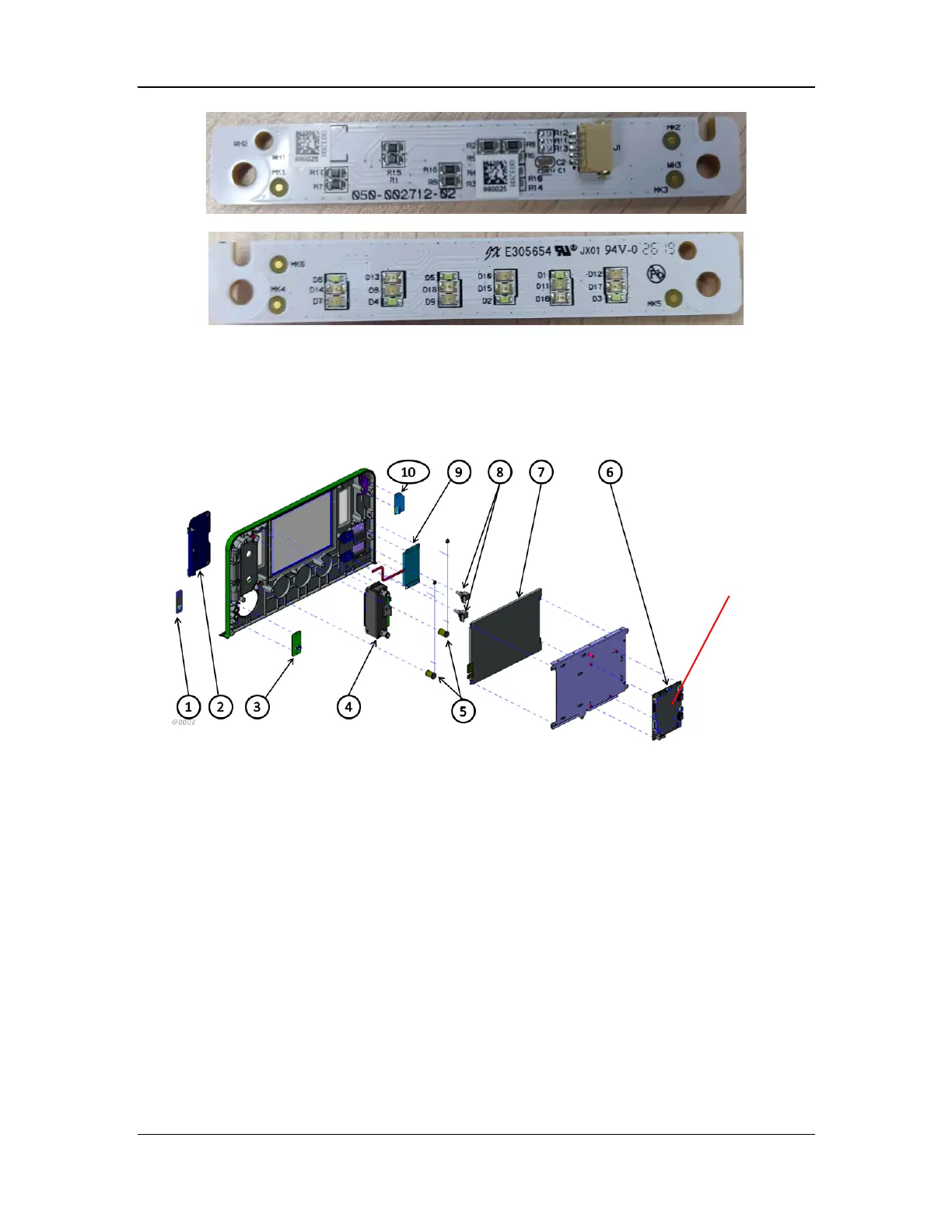

Alarm lamp board (top view)

Alarm lamp board (bottom view)

2.2.3.5 Small-Display CPU Board

The small-display CPU board is mainly used to drive small-screen display and transfer auxiliary

O2/air signals. This board is configured with small-display control software.

Installation position of the small-display CPU board

Small-display

CPU board
