2.2.4.2 Sensor Adapter Board
Two types of sensor adapter boards are available: one with intrapulmonary pressure (Canada only)
and the other without intrapulmonary pressure.
The sensor adapter board is mainly used to process inspiratory and expiratory differential
pressure sensor signals, PEEP sensor signals, PAW pressure sensor signals, intrapulmonary
pressure sensor signals, and adapter three-way valve control signals.

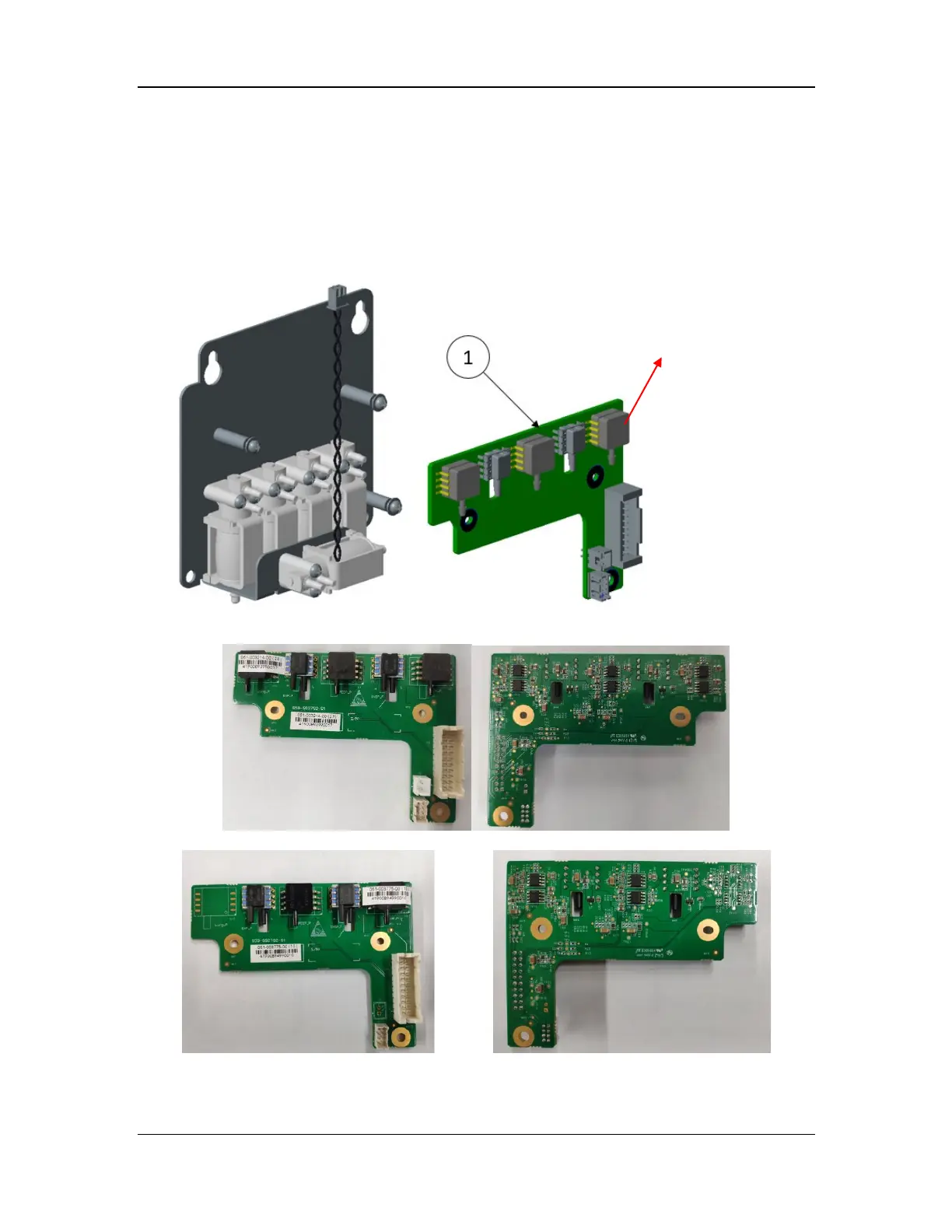

Installation position of the sensor adapter board
Sensor adapter board (with intrapulmonary pressure, Canada only)
Sensor adapter board (without intrapulmonary pressure)
