7 - 4 BeneVision N1 Patient Monitor Operator’s Manual

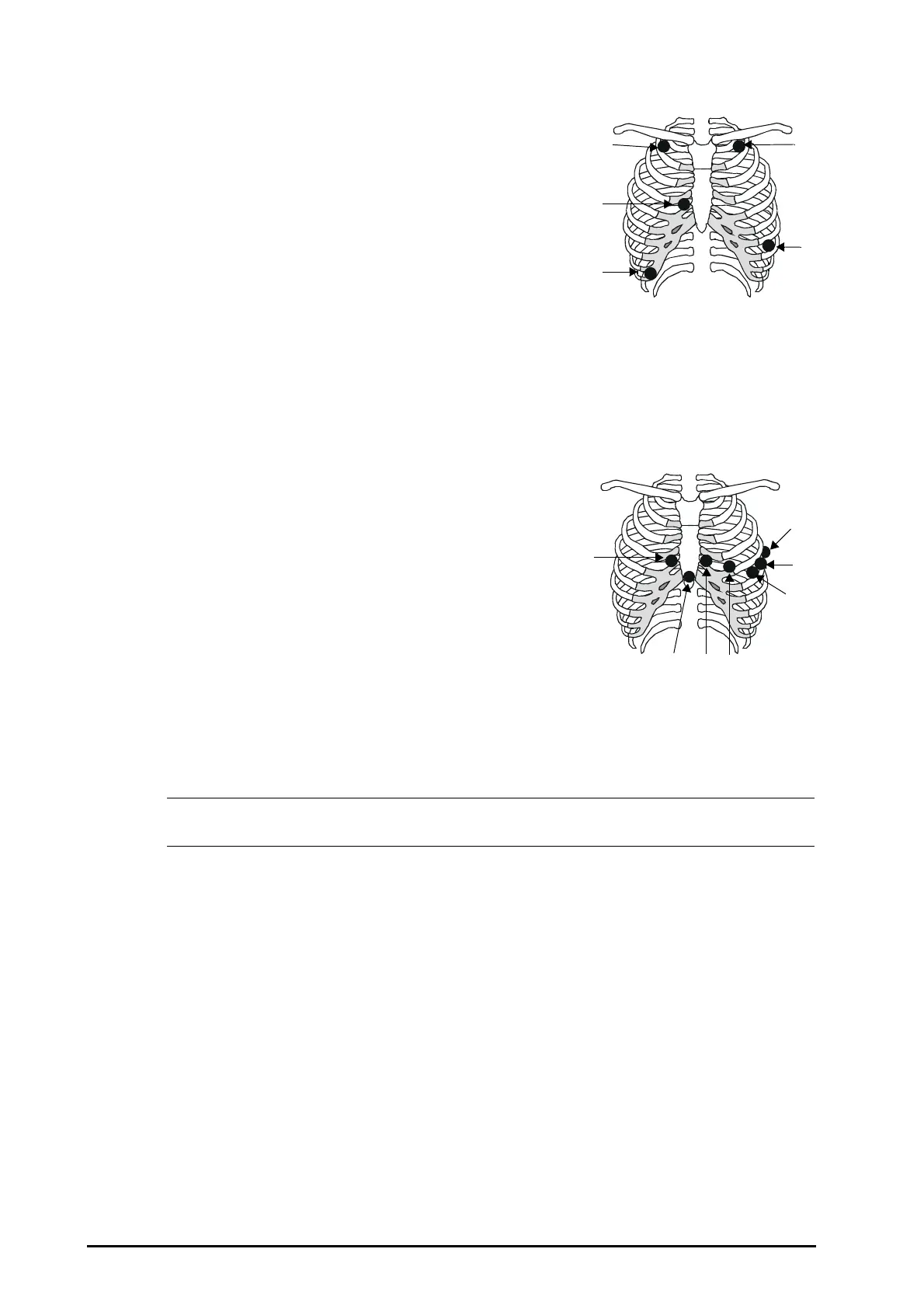

7.4.4.2 5-leadwire and 6-leadwire Electrode Placement
The following is the electrode configuration for a 5-leadwires cables:
■ RA placement: directly below the clavicle and near the right
shoulder.
■ LA placement: directly below the clavicle and near the left
shoulder.
■ RL placement: on the right lower abdomen.
■ LL placement: on the left lower abdomen.
■ V placement: on the chest in any of the V1 to V6 positions.
For 6-leadwire placement, you can use the position for the 5 -
leadwire placement but with two chest leads. The two chest leads (Va
and Vb) can be positioned at any two of the V1 to V6 positions. For
more information, see 7.4.4.3Chest Electrode Placement. The Va and
Vb lead positions are configurable. For more information, see
7.5.3.3Changing Va and Vb Labels.
7.4.4.3 Chest Electrode Placement
The chest electrode can be placed at the following positions:
■ V1 placement: on the fourth intercostal space to the right of
the sternum.
■ V2 placement: on the fourth intercostal space to the left of
the sternum.
■ V3 placement: midway between the V2 and V4 electrode
positions.
■ V4 placement: on the fifth intercostal space at the left
midclavicular line.
■ V5 placement: on the left anterior axillary line, horizontal with
the V4 electrode position.
■ V6 placement: on the left midaxillary line, horizontal with the V4 electrode position.
■ V3R-V6R placement: on the right side of the chest in positions corresponding to those on the left.
NOTE
• For the 5-leadwire and 6-leadwire placement, place the precordial electrode according to the
physician's preference.
RA
V
RL
LA
LL
V1
V6
V5
V4
V2
V3
VE
