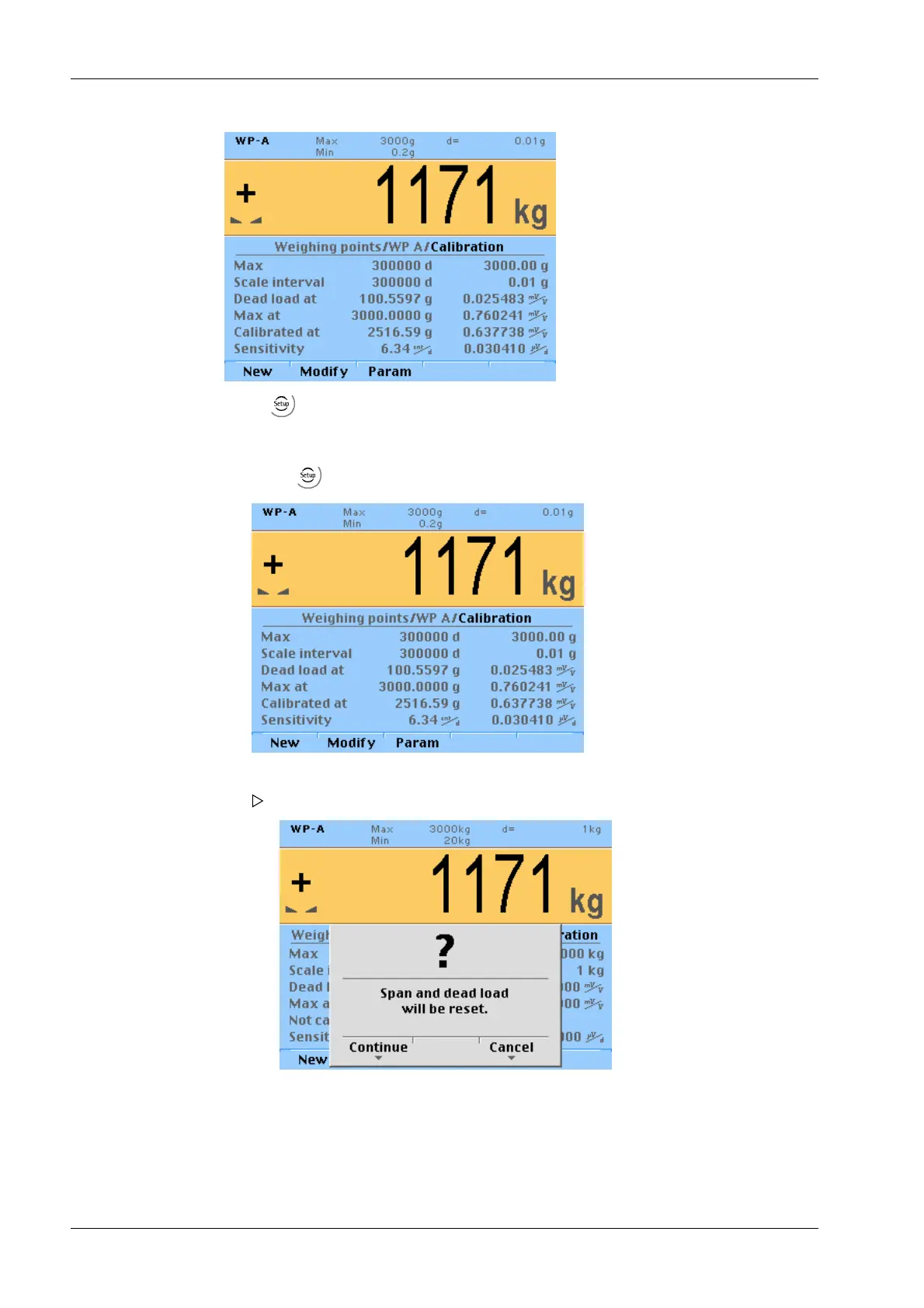

Under -[Weighing point]- [Calib] choose between [New] and [Modify].
7.12.3.1 Performing a new calibration
1. Select -[Weighing point]- [Calib] and conrm.
2. Press the [New] softkey.
A prompt window opens.
3. By pressing [Continue] the data are reset to default rst (default) before performing
calibration. Press [Cancel] to cancel selection.
4. Determining the maximum load [Max], see Chapter 7.12.4.
5. Determining the scale interval [Scale interval], see Chapter 7.12.5.
6. Determining the dead load [Deadload at], see Chapter 7.12.6.
