14 | Smart 108/116 IP
2 Installation
2.1 Overview
Install the Smart 108/116 IP system as follows:
1. Remove the Smart 108/116 IP system from the package, and check that all
components are present and in good working condition.
2. Mount the Smart 108/116 IP unit in a rack.
3. Make all hardware connections between the power source, Smart 108/116 IP,
services, network, and KVM console.
4. Power on the Smart 108/116 IP unit.
2.2 System Components
Before installing the Smart 108/116 IP system, verify that you have all the
components on the following list, as well as any other items required for installation.
The Smart 108/116 IP system consists of:
One Smart 108 IP (p/n 0SU70032) or one Smart 116 IP (p/n 0SU60005)
One RS232 Download cable (p/n 5CB40419)
ROCS - PS/2, USB (ordered separately)
CAT5 cables (1.5 m provided)
A rack mounting kit (p/n 5AC20247)
2.2.1 The Smart 108/116 IP Unit

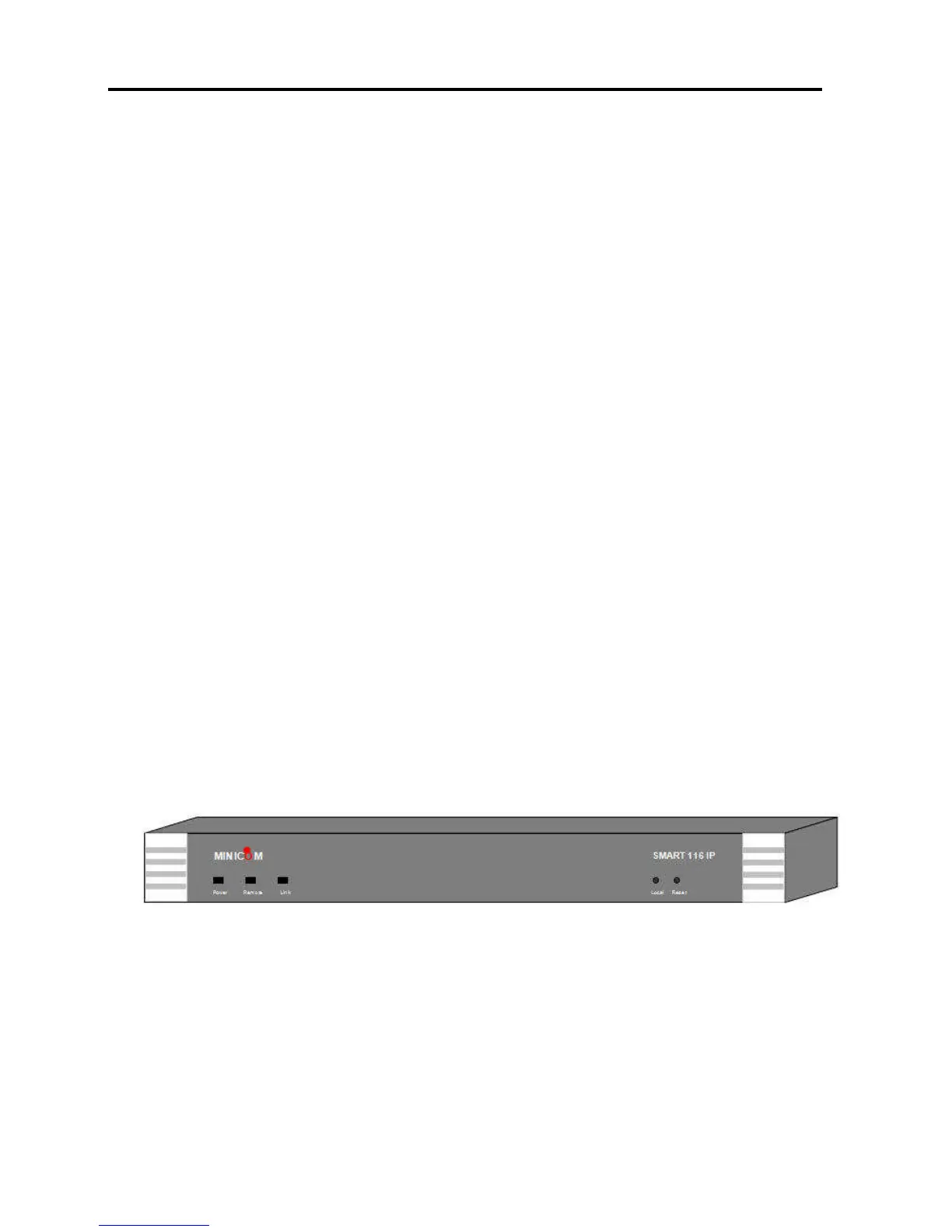

The Smart 108/116 IP Unit front panel is illustrated in Figure 1.
Figure 1 – Smart 108/116 IP Unit Front Panel
The following table describes the functionality of the LEDS and buttons on the front
panel of the Smart 108/116 IP.
