Installation
Connecting to the Servers
18 | Smart 108/116 IP

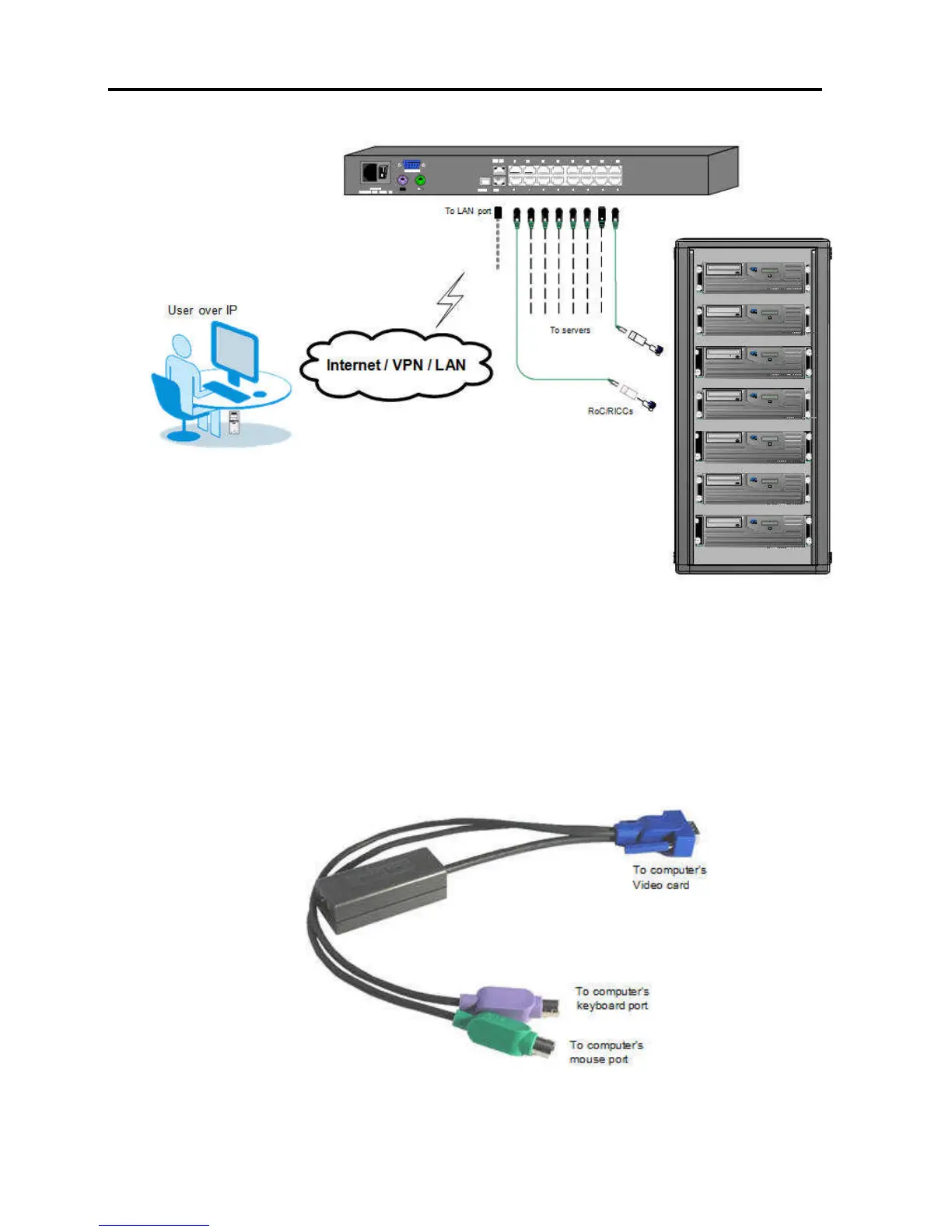

Figure 5 – Smart 108/116 IP System Overview
2.6 Connecting to the Servers
Each computer/server is directly connected to the Smart 108/116 IP via an
appropriate ROC or RICC using a CAT5 cable in star configuration. No external power
is needed at the remote RICC/ROCs. The RICC/ROCs draw their power from the
computer’s keyboard port (RICC/ROC PS/2, SUN) or from the USB port (RICC/ROC
USB). Figure 6 and Figure 7 illustrate the ROC PS/2 and ROC USB.
Figure 6 – ROC PS/2
