5 Connection of Equipment
5.1.1.
Q173PX(
manual pilser input
unit specification
Add Q173DPX unit into PLC base unit Q3□DB when the customer use CR750-Q/CR751-Q series,
CRnQ-700 series tracking function. Please refer to
"Q173DCPU/Q172DCPU user's manual" about details of this unit.

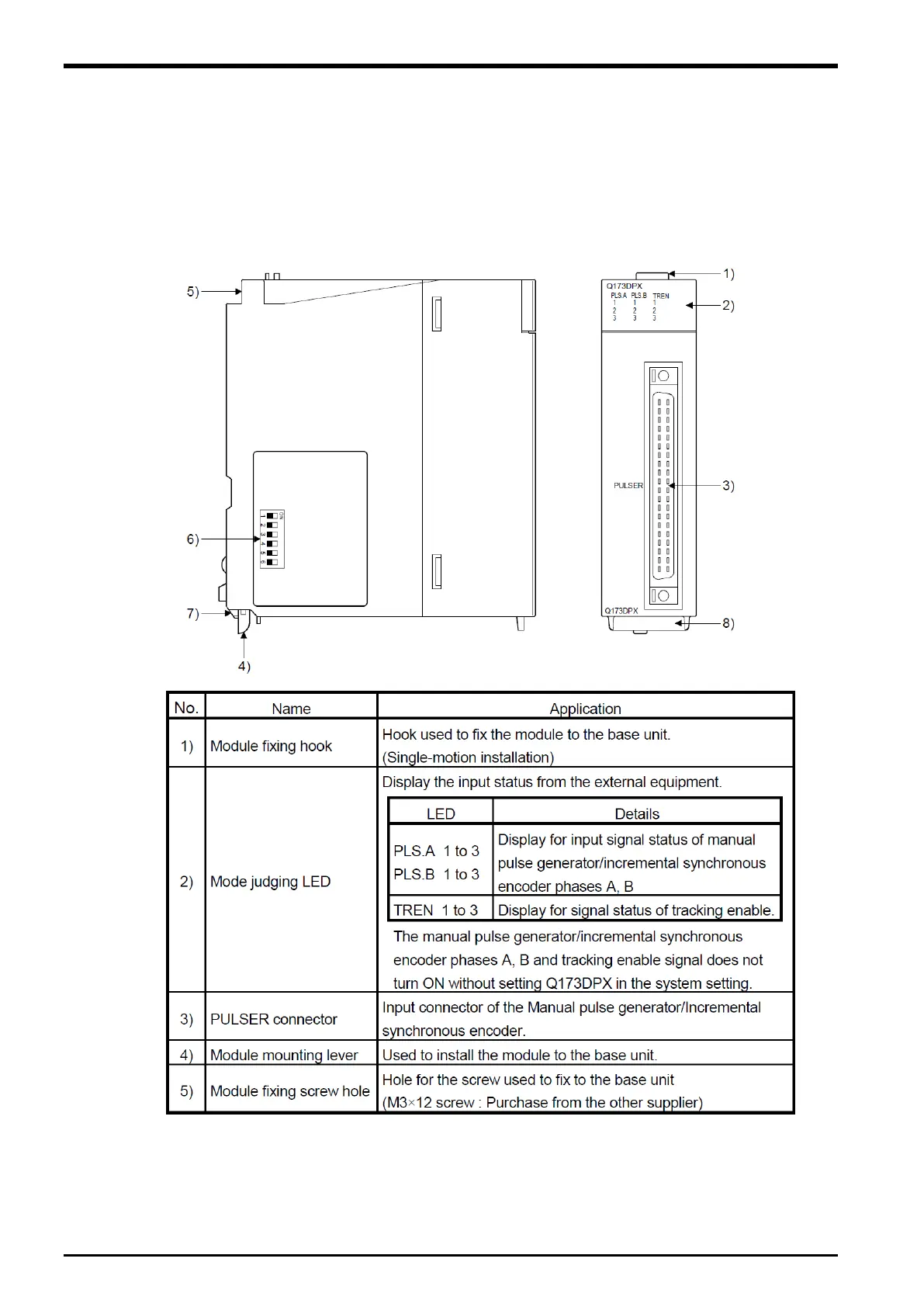

(1) External and name of Q173DPX unit
Figure 5
1 Externals of Q173DPX unit
5-14 Preparation of Equipment
