10.2.3. Connection of Photoelectronic Sensor
If a photoelectronic sensor is used for detection of workpieces, connect the output signal of the
photoelectronic sensor to a general input signal of the robot controller. Any general input signal number of
the robot controller can be selected.
In this section, a connection example where the photoelectronic sensor signal is connected to the 6th
general input signal is shown in “Figure 10−13 Photoelectronic Sensor Connection Example (6th General
Input Signal is Used).”

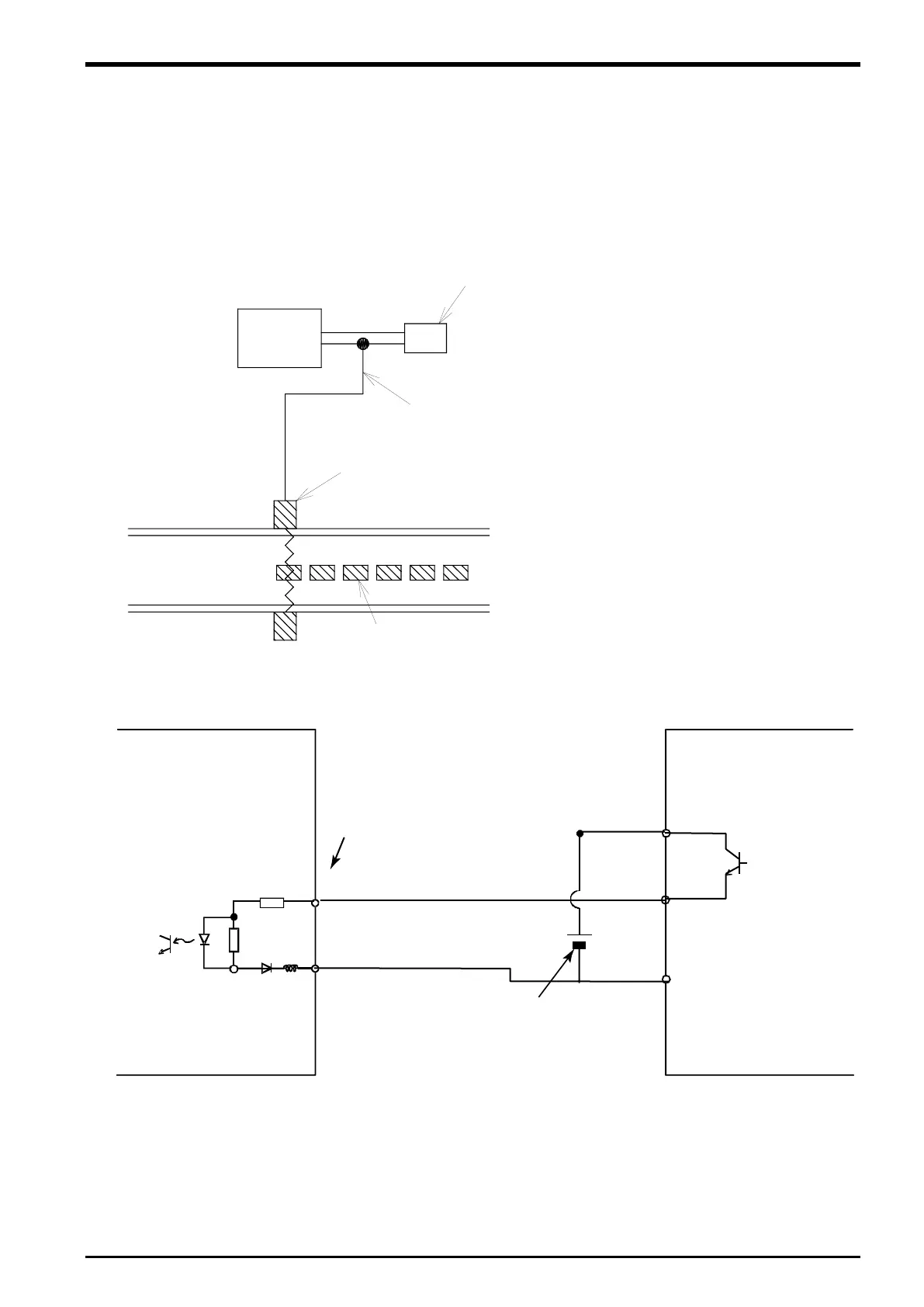

Figure 10
−12 Photoelectronic Sensor Arrangement Example
Figure 10
−13 Photoelectronic Sensor Connection Example (6th General Input Signal is Used)
Input circuit external power supply
Connects to the controller general purpose input
Example of 3 line type)
21(General-purpose input 6)
Note) The external power supply and photoelectric sensor must be prepared by the
customer.
Note) This connection example shows the connection of the source type.
