10 Connection of Equipment
10.2.2. Installation of encoder cable
The installation method of the encoder cable is shown by controller to be used.
*CR750-D series: "Figure 10-6 Installation of encoder cable (CR750-D series) "
*CR751-D series: "Figure 10-7 Installation of encoder cable (CR751-D series)"
*CR1D-700 series: "Figure 10-8 Installation of encoder cable (CR1D-700 series) "
*CR2D-700 series: "Figure 10-9 Installation of encoder cable (CR2D-700 series) "
*CR3D-700 series: "Figure 10-10 Installation of encoder cable (CR3D-700 series) "
And, the description about the measures against the noise is shown in the figure "Figure 10-11 Example of
noise measures of tracking system".
(1)CR750-D series

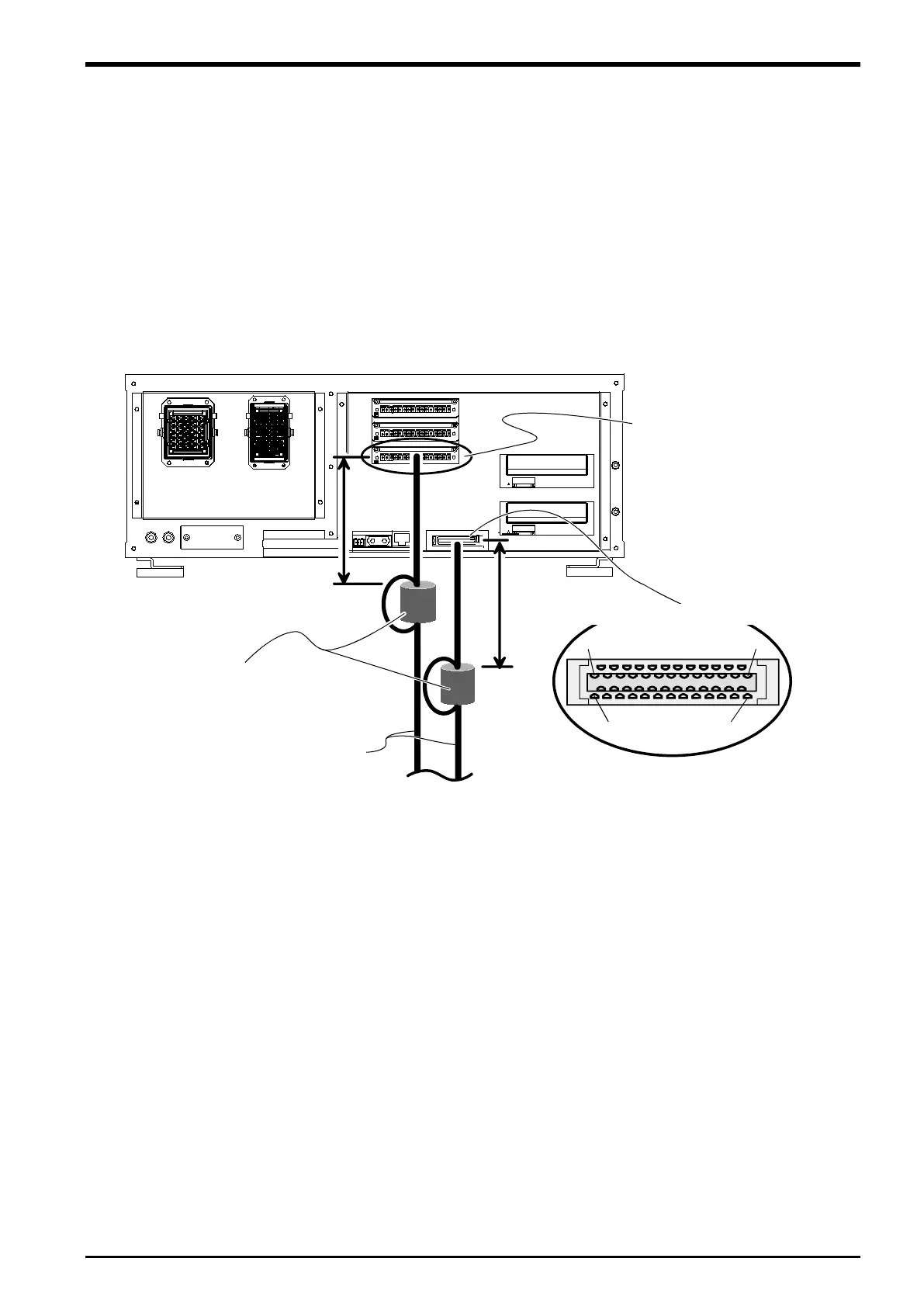

Figure 10-6 Installation of encoder cable (CR750-D series)
300mm以内
フェライトコア（付属品）
2回通し
エンコーダケーブル
1
25
26
50
<CR750-Dシリーズコントローラ(背面)>
300mm以内
CNUSR13コネクタ
CNUSR2コネクタ
<CR750-D series controller (rear)>
CNUSR11 connector
CNUSR12 connector
CNUSR13 connector
Within 300mm
Within 300mm
CNUSR2 connector
Ferrite core (attachment)
Pass twice
Encoder cable
Connection of Equipment 10-41
