APPENDICES
APPEN
DIX
Appendix 1 Parameter Setting Appendix 1.2 PLC Parameter

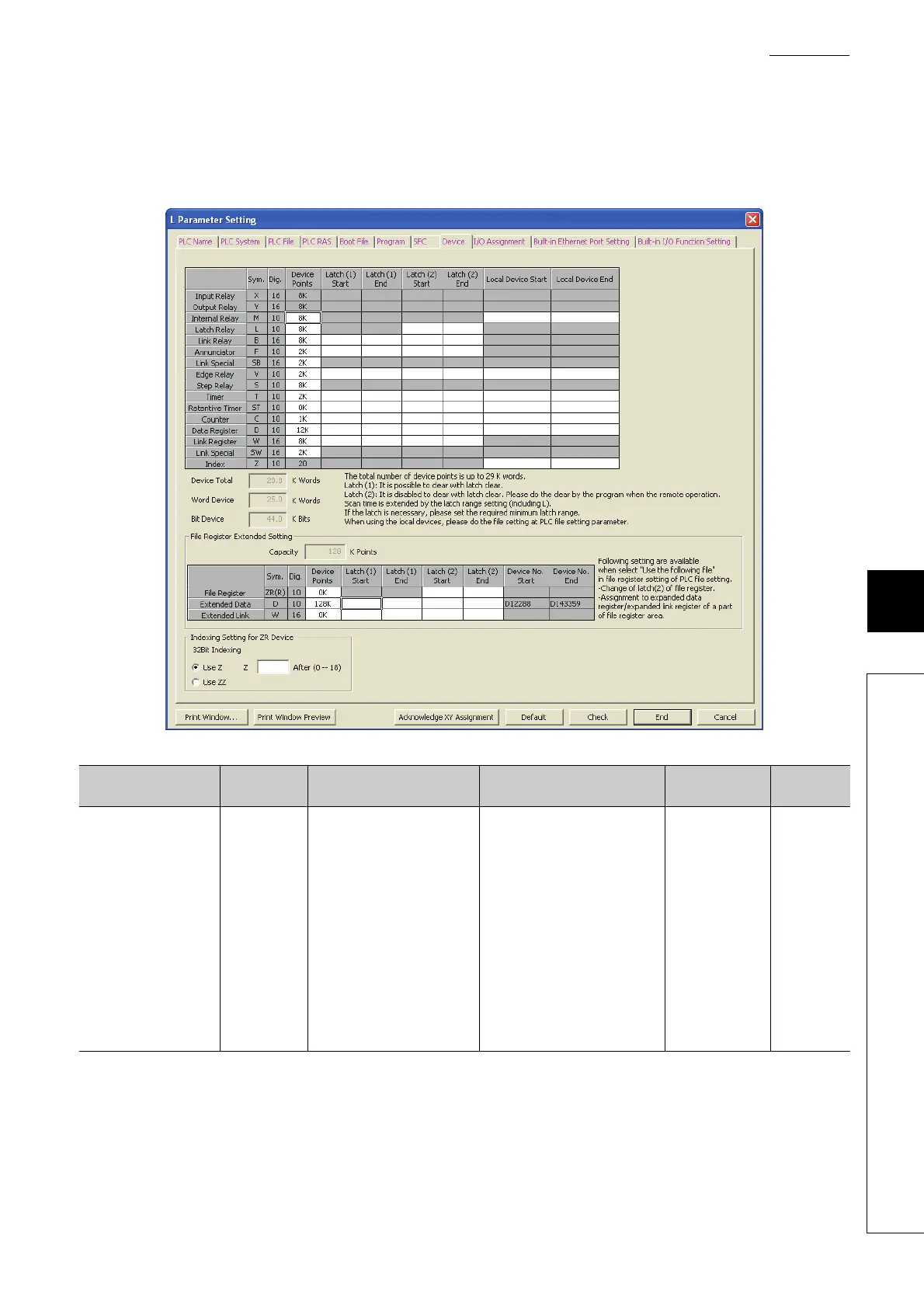

(8) Device Setting
Number of points, latch range, and local device range are set for each device.
(To the next page)
Item
Parameter
No.
Description Setting range Default Reference
Device Points
*1
2000
H
Set the number of device points
that is appropriate to the system.
X, Y, S
*3
are fixed to 8K points.
Setting is available within the range
of 29K words in total, including the
above fixed points.
• One device: Up to 32K points
• Total bit device points: Up to 64K
points
•X: 8K
•Y: 8K
•M: 8K
•L: 8K
*2
•B: 8K
•F: 2K
•SB: 2K
•V: 2K
•S: 8K
*3
•T: 2K
•ST: 0K
•C: 1K
•D: 12K
•W: 8K
•SW: 2K
Page 83,
Section 3.4
