Mitsubishi Q02CPU

3
SEQUENCE PROGRAM CONFIGURATION AND
EXECUTION CONDITIONS
3.4 Operation Processing
3.4.4 END processing
3
- 60
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication with Intelligent Function Module
8
Parameters
3.4.4 END processing

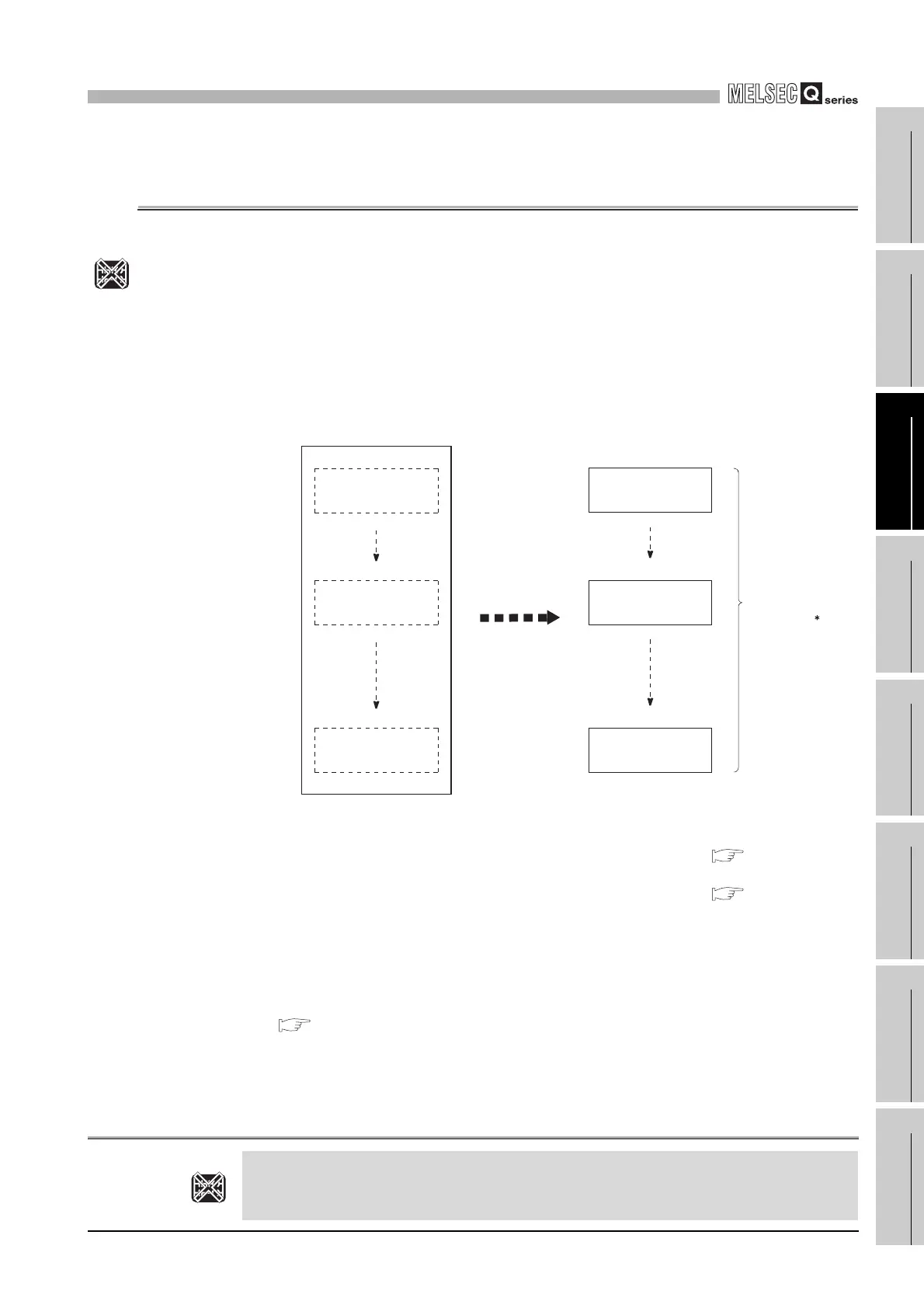

This is a post-processing to return the sequence program execution to step 0 after
completing the whole sequence program operation processing once.
(1) Operations of END processing
The END processing includes the following.
: Executed : Not executed
POINT
1. When the constant scan function( Section 6.2)is set, END processing
time result is stored until when END processing is completed or the next scan
starts.
2. When executing the low speed execution type program, the low speed END
processing starts after the all low speed execution type programs are
completed.
Note3.34
( Section 3.3.3)
Note34
Table3.5 END processing list
END processing item
CPU modules performing END processing
Reference
Basic model
QCPU
High
Performance
model QCPU
Process CPU
Redundant
CPU
MELSECNET/H or CC-Link refresh
processing
----
Automatic refresh processing of
intelligent function module
Section 7.1.1
Self-diagnostic processing Section 6.17
Communication with external device
such as GX Developer
----
Processing of instructions dedicated
to intelligent function modules
----
Collection of device data by sampling
trace function (when trace point is set
to every scan (after END instruction
execution)
Section 6.14
Automatic refresh processing of CPU
shared memory
QCPU User's
Manual (Multiple
CPU System)
Watchdog timer reset processing Section 6.16
Setting values to special relays/
special registers (when setting is
made at END processing)
Appendix 1
Appendix 2
Note34
Basic
Redundant
Note3.34
Since the Basic model QCPU and Redundant CPU cannot use low speed execution type
programs, the low speed END processing is not performed.
Note3.34
Redundant
Basic
