6.4 Setting Output (Y) Status when Changing between STOP and RUN
6 - 17
1
Overview
2
Performance
Specification
3
Sequence Program
Configuration and
Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files
Handled by CPU Module
6
Functions
7
Communication using
built-in Ethernet ports of
CPU module
8
Communication with
Intelligent Function
Module
(4) Setting the Output (Y) Status when Changing from STOP Status to RUN
Status
Set the output (Y) status when changing from the STOP status to the RUN status in
the PLC system of the PLC parameter dialog box.
(5) Precaution
If an output (Y) is forcibly turned ON when the CPU is in STOP status, the output (Y)
when changing from STOP status to RUN status is as shown in Table6.4.

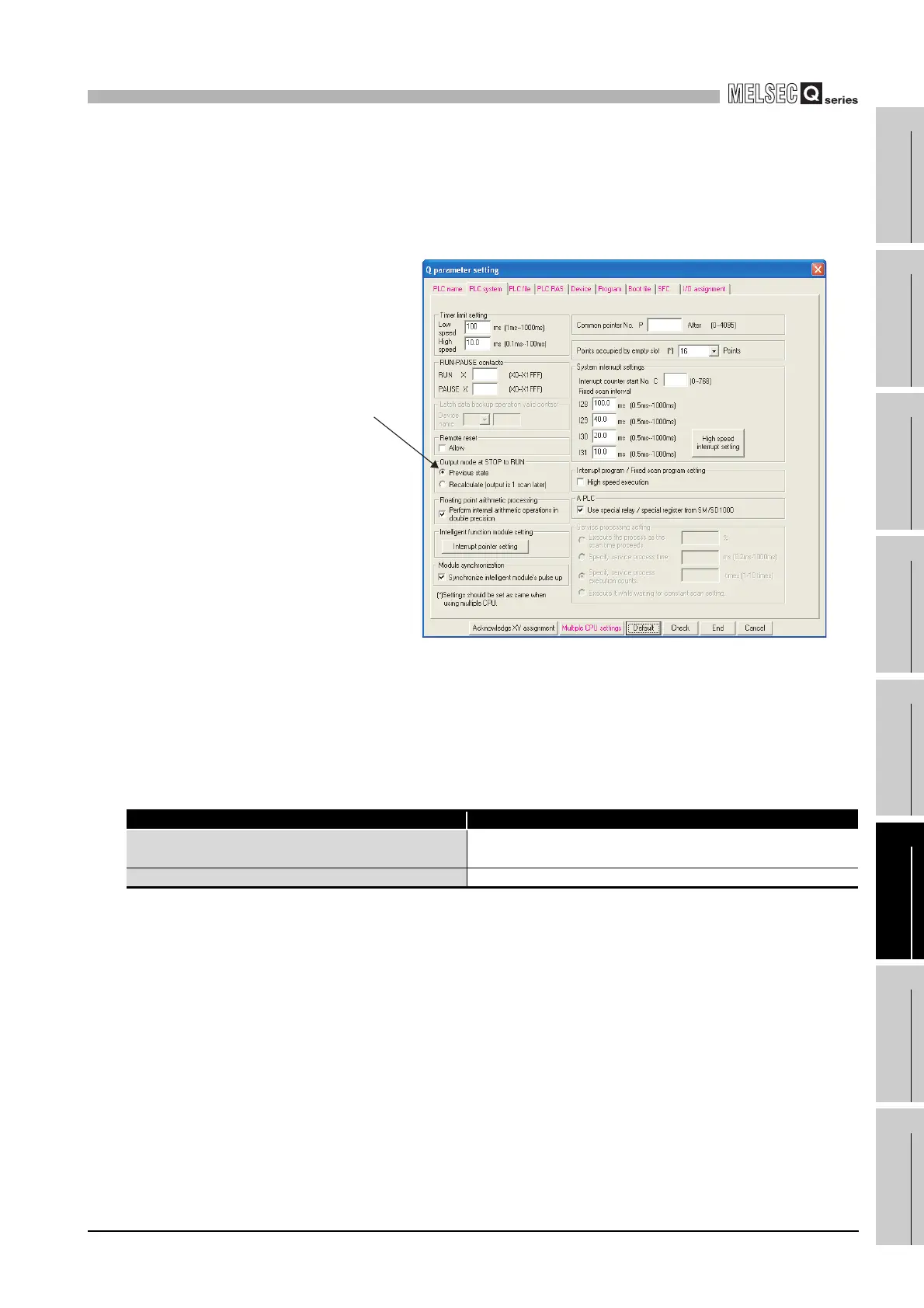

Figure 6.10 PLC system screen
Table6.4 Output when changing from STOP status to RUN status after forcibly turning ON output (Y) in STOP status
Output mode when changing from STOP to RUN Output when changing from STOP status to RUN status
Output (Y) status prior to STOP is output
The status prior to STOP is output.
If output (Y) is OFF prior to STOP, ON status is not maintained.
Output (Y) is cleared ON status is maintained.
Output mode at
STOP to RUN
