9.10 Interrupt pointer (I)
(1) Definition
Interrupt pointers are used as labels at the beginning of interrupt programs.
The interrupt pointers can be used in all running programs.
(2) Number of available interrupt pointer points
Table9.16 indicates the number of available interrupt pointer points.

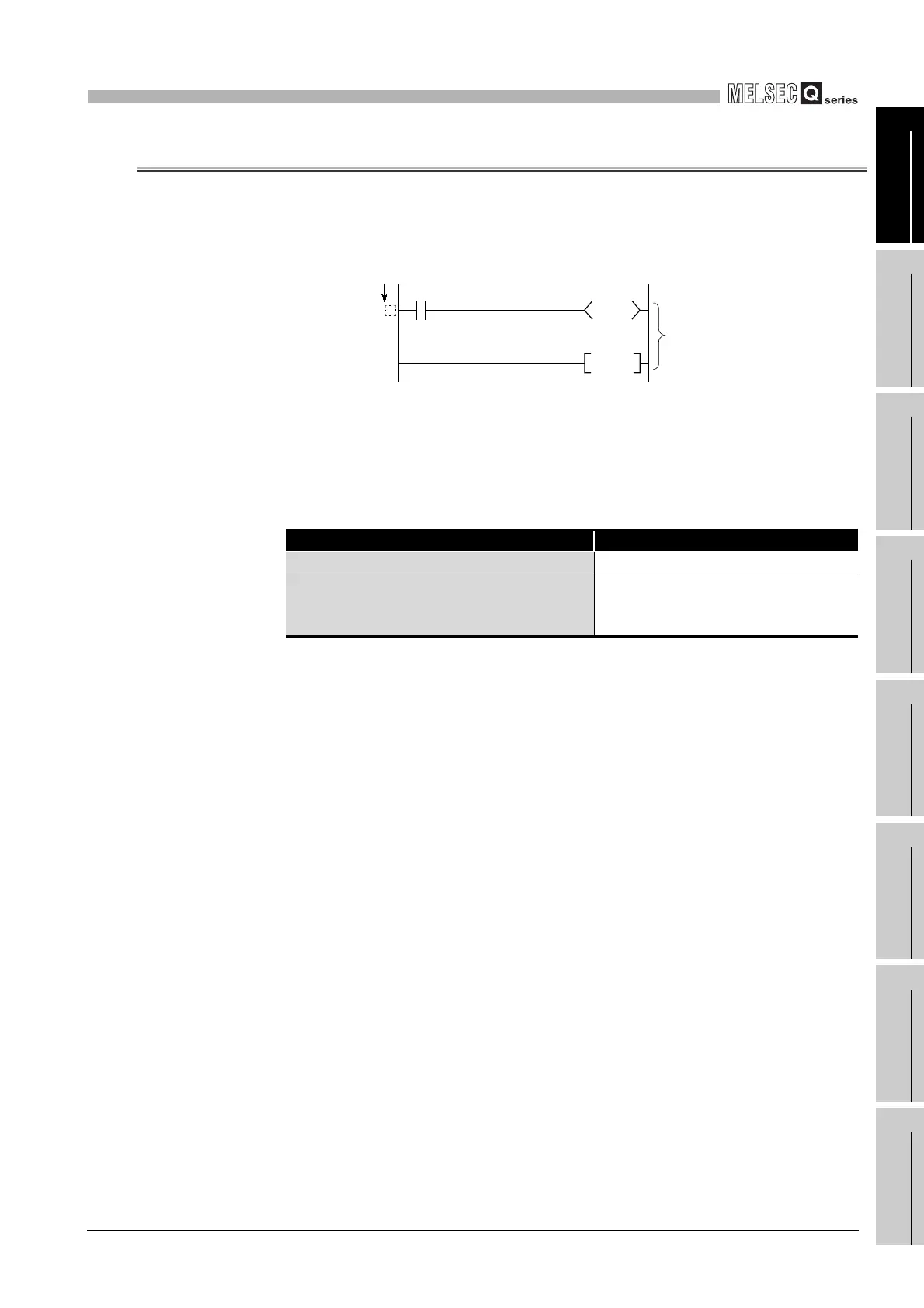

Diagram 9.84 Interrupt pointer
Table9.16 Number of available interrupt pointer points of each CPU module
CPU module Number of points
Basic model QCPU 128 points (I0 to 127)
High Performance model QCPU
Process CPU
Redundant CPU
256 points (I0 to 255)
Interrupt pointer (interrupt program label)
Interrupt program
IRET
I
