5.1.2 Program memory
(1) Definition of program memory
The program memory stores the program used by the Basic model QCPU to perform
operation.
The program stored in the standard ROM is booted (read) to the program memory to
perform operation.
(2) Storable data
The program memory can store parameters, intelligent function module parameters,
programs, device comments, device initial values and user setting system area data.
Refer to Section 5.1.1(2) for the list of data that can be stored into each memory.
POINT
If the total volume of the data to be stored into the program memory exceeds its
capacity, examine reducing the user setting system area data.
(3) Before using the program memory
Before using the program memory, be sure to format it by GX Developer.
(a) Formatting
To format the program memory, choose [Online] [Format PLC memory] on GX
Developer, and select "Program memory/Device memory" as the target memory.

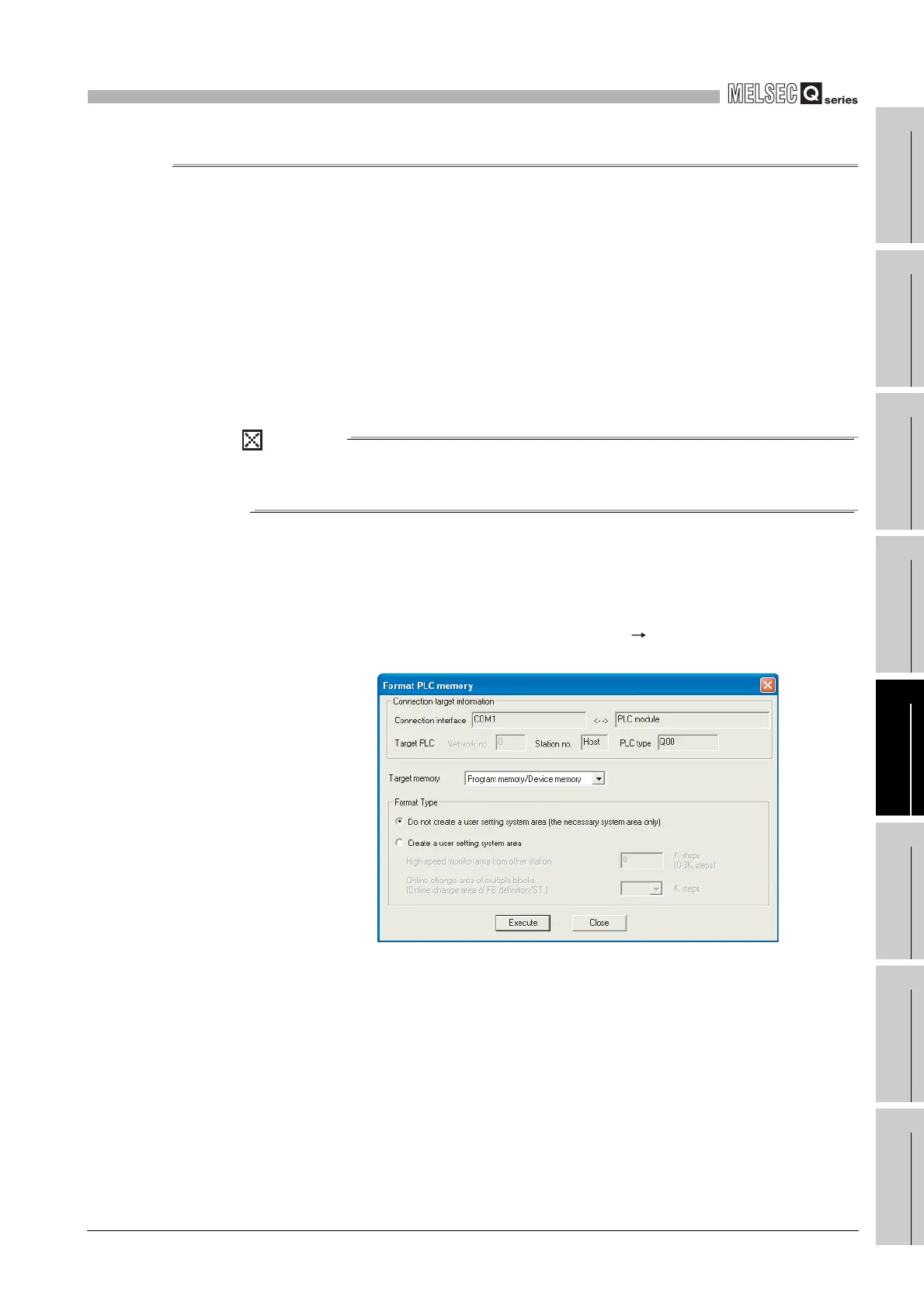

Diagram 5.2 Program memory formatting
