10.1.4 Factors that can shorten scan time by changing the settings
The scan time can be shortened by changing the PLC parameter settings of GX Developer
described in this section.
(1) A series CPU compatibility setting ( Section 8.1.2(2))
Note10.11
Note12
The scan time can be shortened by the processing time indicated in Table10.26 by
selecting "Do not use special relays/special registers SM1000/SD1000 and later"
(removing the check mark on the setting screen) in the PLC system setting.
POINT
After selecting "Do not use special relays/special registers SM1000/SD1000 and
later" (removing the check mark on the setting screen), replace the following A
series compatible special relays with the Q series dedicated special relays.
• A series compatible special relays (SM1000 to 1299)
Q series dedicated special relays (SM0 to 999)
• A series compatible special registers (SD1000 to 1299)
Q series dedicated special registers (SD0 to 999)
Note12
Table10.26 Processing time for each A series CPU module model
CPU module Processing time
Q02CPU 0.07ms
Q02HCPU,Q06HCPU,Q12HCPU,Q25HCPU,
Q12PHCPU,Q25PHCPU
0.03ms

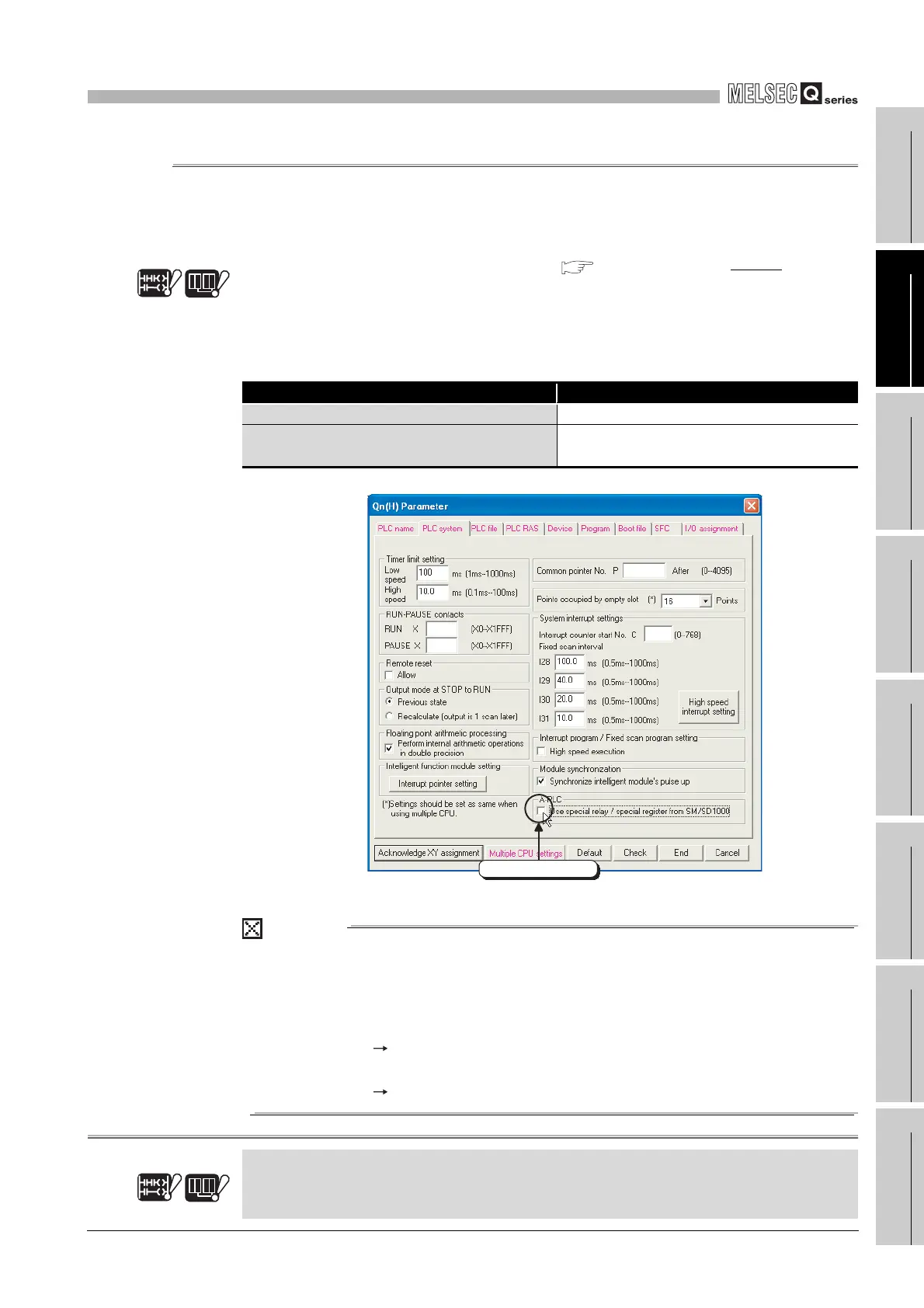

Diagram 10.5 A series CPU compatibility setting
Basic
Redundant
Note10.11
The Basic model QCPU and Redundant CPU do not support the A series CPU compatibility
setting.
Basic
Note10.11
Redundant
Remove checkmark!
