11.2 High Performance Model QCPU, Process CPU, Redundant CPU
11.2.4 Procedure for writing multiple programs
11
PROCEDURE FOR WRITING PROGRAM TO CPU
MODULE
11.2.4 Procedure for writing multiple programs
This section explains the procedure for writing the parameters and multiple programs
created by GX Developer to the High Performance model QCPU, Process CPU or
Redundant CPU.
This section explains the procedure for writing the programs to the program memory
( Section 5.2.2).
When storing the programs into the standard ROM or memory card and executing boot
run, perform the procedure given in this section, and then carry out the procedure given in
Section 11.2.5.
In the following procedure, indicates the operation on the GX Developer side, and
indicates that on the High Performance model QCPU, Process CPU or Redundant CPU
side.
............

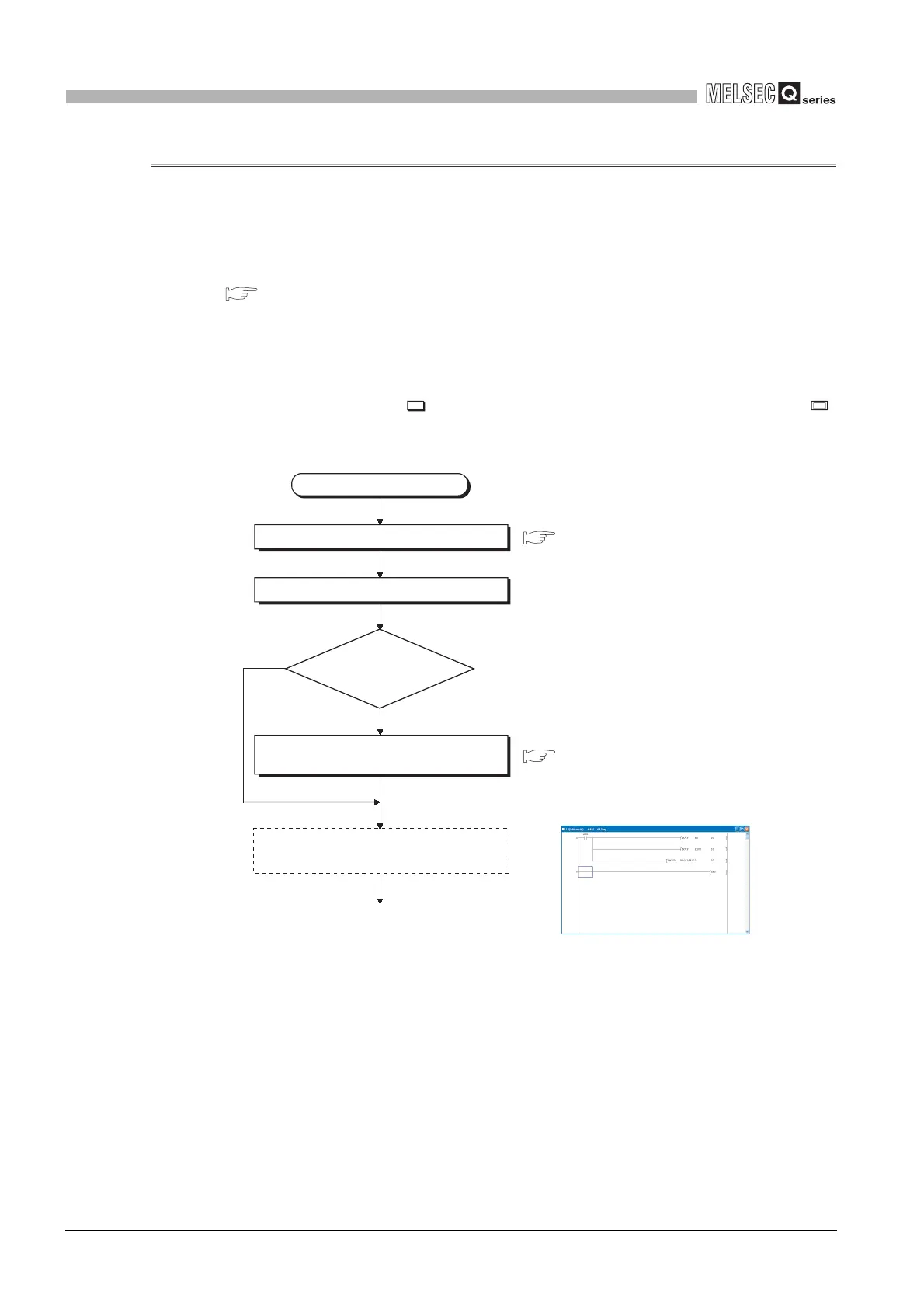

Start
Start GX Developer.
Set the project.

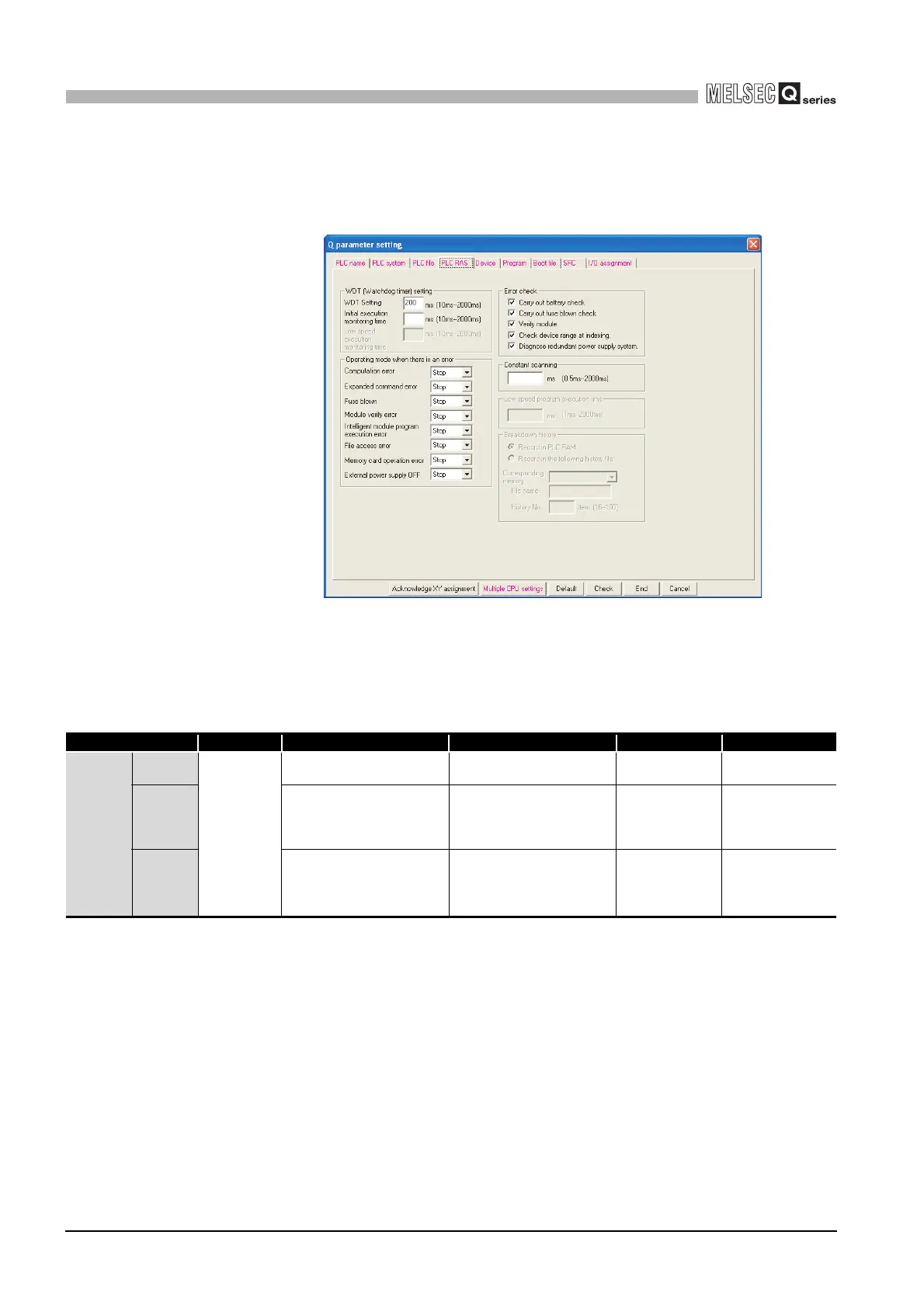

Change the number of device points in
device setting of PLC parameter.
Create a program to be executed in the
CPU module.
GX Developer Operating Manual
Section 9.2
Ladder (write) screen
Do you
change the number
of device points
used?
NO
YES
1)
