9.7.4 File register registration procedureNote16
To use file registers, register the file registers with the CPU module in the following steps.
Note16

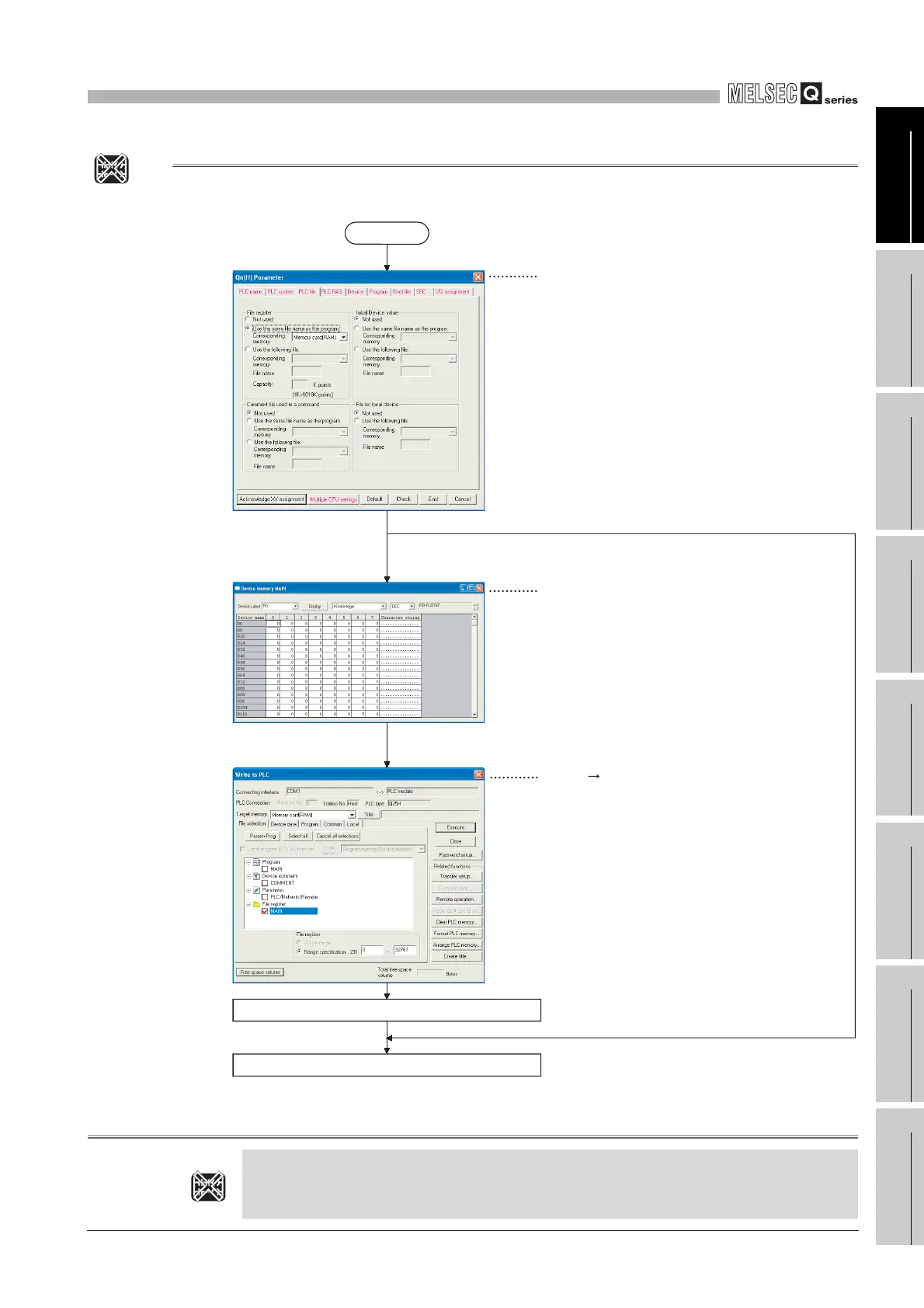

Diagram 9.69 File register registration procedure
Basic
Note9.16
When using the Basic model QCPU, it is not necessary to register the file registers.
The file registers are automatically registered to the standard RAM.
Basic
Note9.16
"PLC file" tab screen at(PLC)
"parameter" dialog box
File register setting
Creating new device memory screen
"Use the following files" is selected.
Writing of the file register
[Online] [Write to PLC] screen
Writing of the parameter to the CPU module
Writing of the file register to the CPU module
Start
Setting of file
register to be used
"Not used" or "Use the same file
name as the program" is selected.
To Next Page
