9.4 Link direct device
(1) Definition
MELSECNET/H network modules. Link direct devices are used to directly access the
link devices in the MELSECNET/H network modules.
At END processing of sequence program, a data refresh (data transfer) is performed
between the High Performance model QCPU.
(2) Designation method and application example of link direct device
(a) Designation method
Link direct devices are designated by network No. and device No.
(b) Application example
For link register 10 (W10) of network No.2, the designation would be "J2\W10"
• For a bit device (X, Y, B, SB), digit designation is necessary.
Designation example : J1\K1X0, J10\K4B0

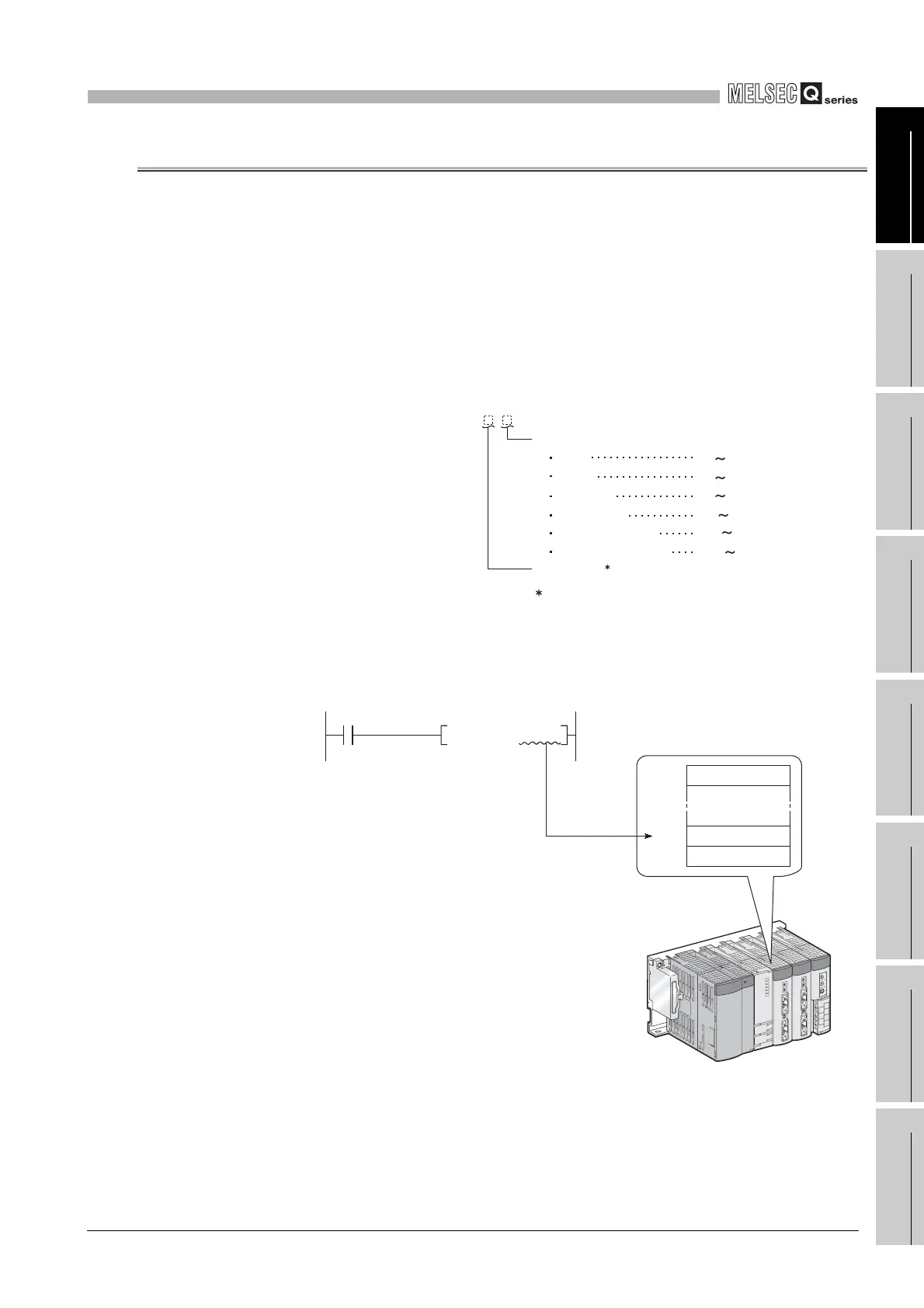

Diagram 9.47 Link direct device designation method
Diagram 9.48 Link direct device application example
Designation method: J \
Device No.
Input
Output
Link relay
Link register
Link special relay
Link special register
Network No.
Basic model QCPU: No.1 to 239
High Performance model QCPU,
Process CPU, Redundant CPU: No.1 to 255
X0
Y0
B0
W0
SB0
SW0
:
K100 J2\W10MOVP
LW 0
LW10
Network modules at
network No.2
