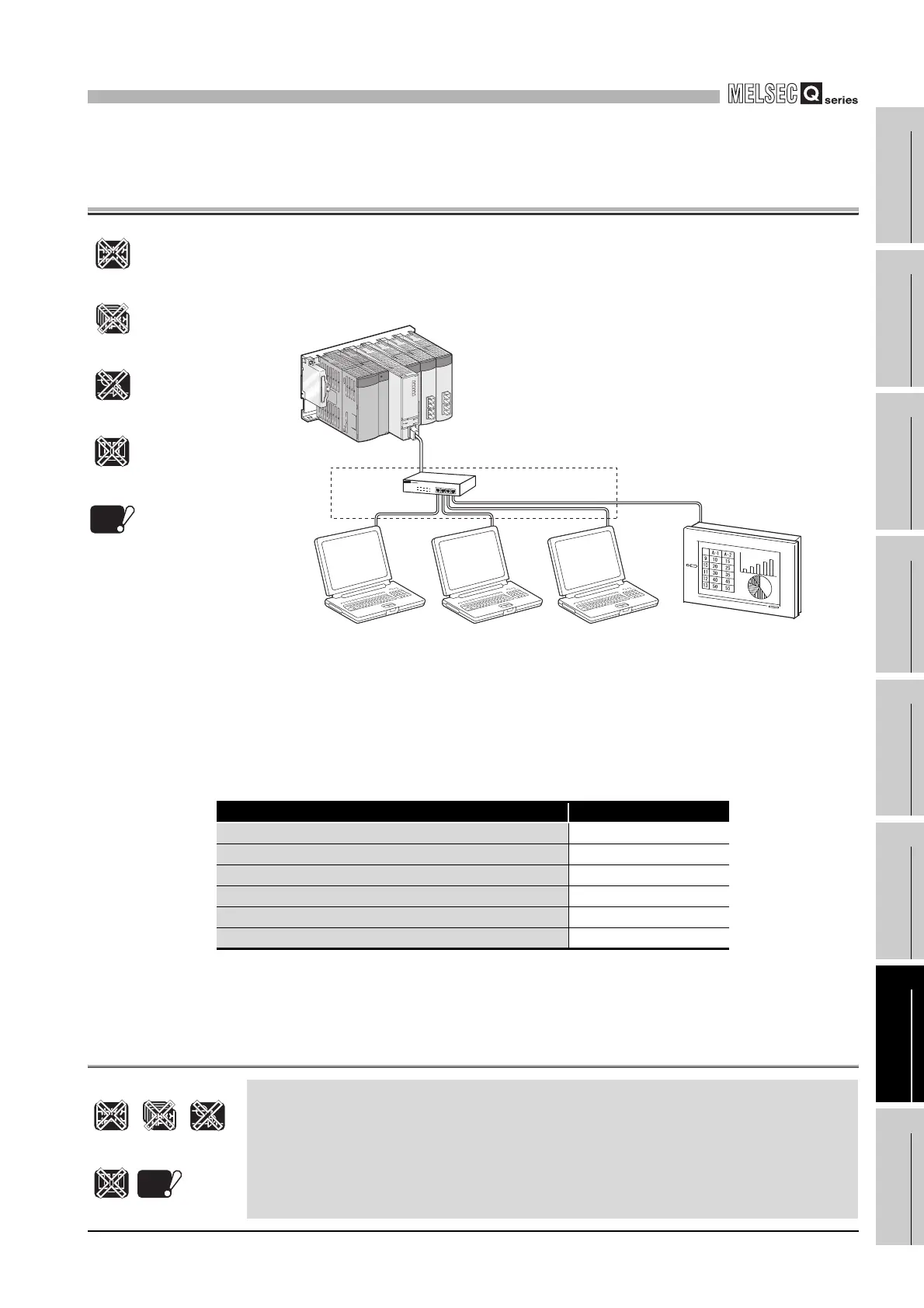

9.7.2 File register capacity
(1) Using the Standard RAM
The standard RAM can store the following points of file registers.
* 1 : Since the Basic model QCPU does not have local devices, it can use the above number of file
register points.
The High Performance model QCPU, Process CPU and Redundant CPU can use the above
number of point when they do not use local devices.
* 2 : The number of available points changes since the standard RAM capacity changes depending on
the CPU module version. ( Appendix 3.1, Appendix 3.2)
(2) Using the SRAM Card
Note9.15
Note14
The size of a file can be expanded at the rate of 32 k words per block, up to 32 blocks,
1017 k words. The number of expandable blocks depends on the size of programs or
device comments stored on a memory card.
(3) Using the Flash Card
Note9.15
The size of a file can be expanded at the rate of 32 k words per block up to 32 blocks,
1018 k words. The number of expandable blocks depends on the size of programs or
device comments stored on a memory card.
Remark
For details regarding the High Performance model QCPU memory cards, see
Section 5.2.5.
Table9.12 File register capacity of each CPU module
CPU module
Number of points
*1*2
Basic model QCPU
Q00JCPU File registers unavailable
Q00CPU, Q01CPU 64k points
High Performance model
QCPU
Q02CPU 32k points
Q02HCPU, Q06HCPU 64k points
Q12HCPU, Q25HCPU 128k points
Process CPU Q12PHCPU, Q25PHCPU 128k points
Redundant CPU Q12PRHCPU, Q25PRHCPU 128k points
Note14
Basic
Note9.15
The Basic model QCPU does not support the memory card.
Basic
Note9.15
Basic
Note9.15
