Mitsubishi Q02CPU

6
FUNCTIONS
6.22 High Speed Interrupt Function
6.22.2 High speed I/O refresh, high speed buffer transfer
6
- 140
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication with Intelligent Function Module
8
Parameters
6.22.2 High speed I/O refresh, high speed buffer transferNote60Note61
High speed I/O refresh is a function that updates I/O signals between the I/O and
intelligent function modules and CPU module at interrupt cycle intervals.
High speed buffer transfer is a function that updates data between the intelligent function
module buffer memories and CPU module devices at interrupt cycle intervals.
(1) Setting method
To execute this function, set "High speed interrupt I49 fixed scan interval" shown in
Section 6.22.1, "High speed I/O refresh setting" and "High speed buffer transfer
setting".
(a) High speed I/O refresh setting
Note60
Note61

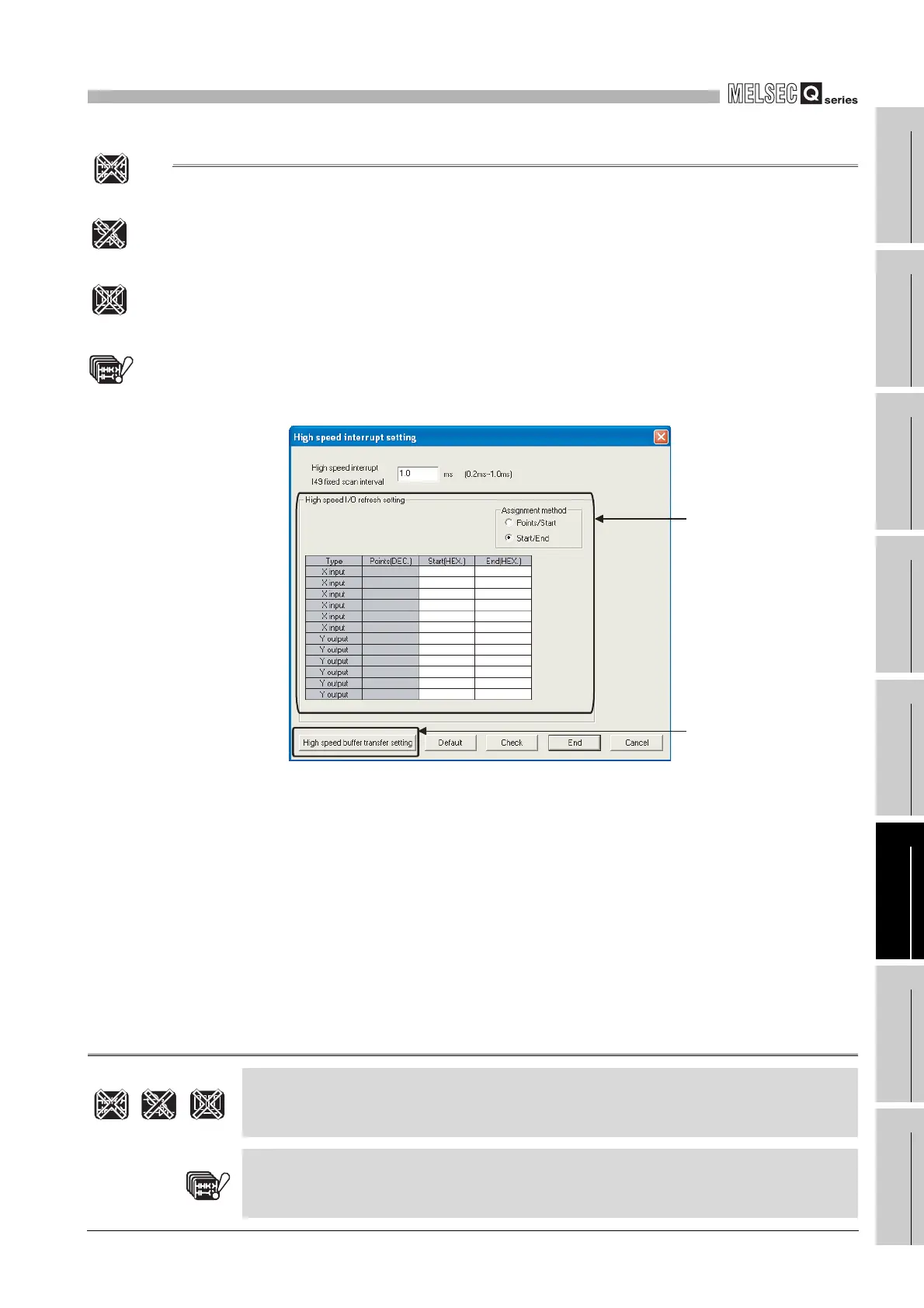

Diagram 6.82 High speed interrupt setting screen
Basic
Process
Redundant
Note6.59
Note6.59
Note6.59
High
Performance
Note6.60
The Basic model QCPU, Process CPU and Redundant CPU do not support the high speed I/O
refresh and high speed buffer transfer function.
Basic
Process
Redundant
Note6.59Note6.59 Note6.59
The Q02CPU does not support the high speed I/O refresh and high speed buffer transfer
function.
High
Performance
Note6.60
Set the X/Y refresh
ranges.
Choose here when setting
the high speed buffer
transfer ranges.
