(c) Sampling trace interrupt
When SM801 (sampling trace start) is turned off during sampling trace, the
sampling trace is interrupted.
When sampling trace is interrupted, the number of traces is cleared.
When turning on SM801 again, trace is restarted.

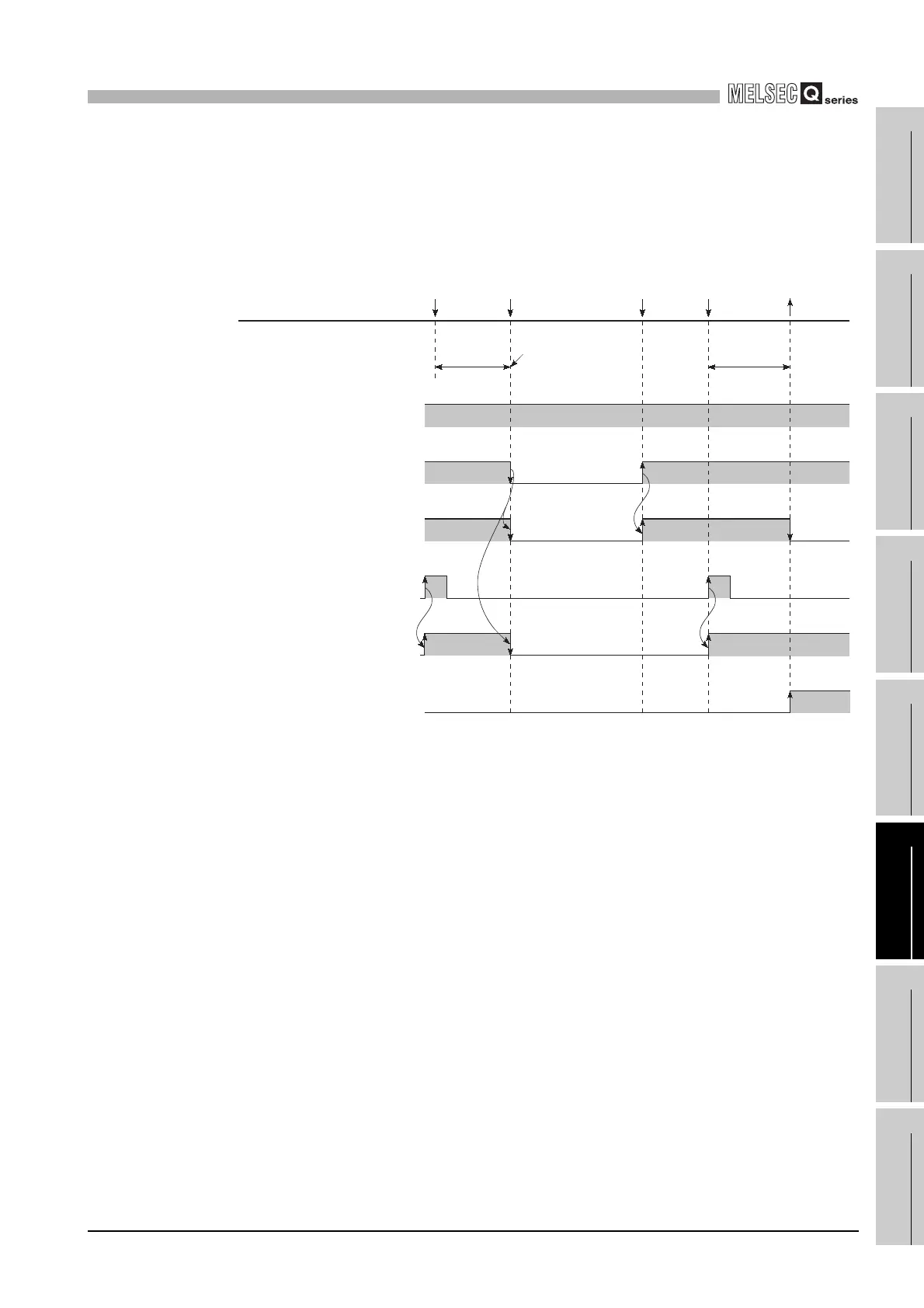

Figure 6.70 Sampling trace timing chart (When sampling trace is interrupted)
SM800
SM801
SM802
SM803
SM804
SM805
(Sampling trace ready)
(Sampling trace start)
(Sampling trace executing)
(Sampling trace trigger)
(After sampling trace trigger)
(Sampling trace complete)
Trigger
execution
SM801
OFF
SM801
ON
Trigger
execution
Trace
complete
Number of
trace after
trigger
Number of
trace after
Clear the trace count
When trace is interrupted from GX Developer, the SM800 is also turned off.
*1
*1:
