9.11 Other Devices
9.11.4 I/O No. designation device (U)
9
DEVICE EXPLANATION
9.11.4 I/O No. designation device (U)
(1) Definition
I/O No. designation devices are used with instructions dedicated to intelligent function
module to designate I/O numbers.
(2) Designating the I/O No. designation device
I/O No. designation devices are designated with the intelligent function module
instructions as shown in Diagram 9.86.
Remark
For details on intelligent function module instructions, refer to the corresponding
manual for the intelligent function module to be used.

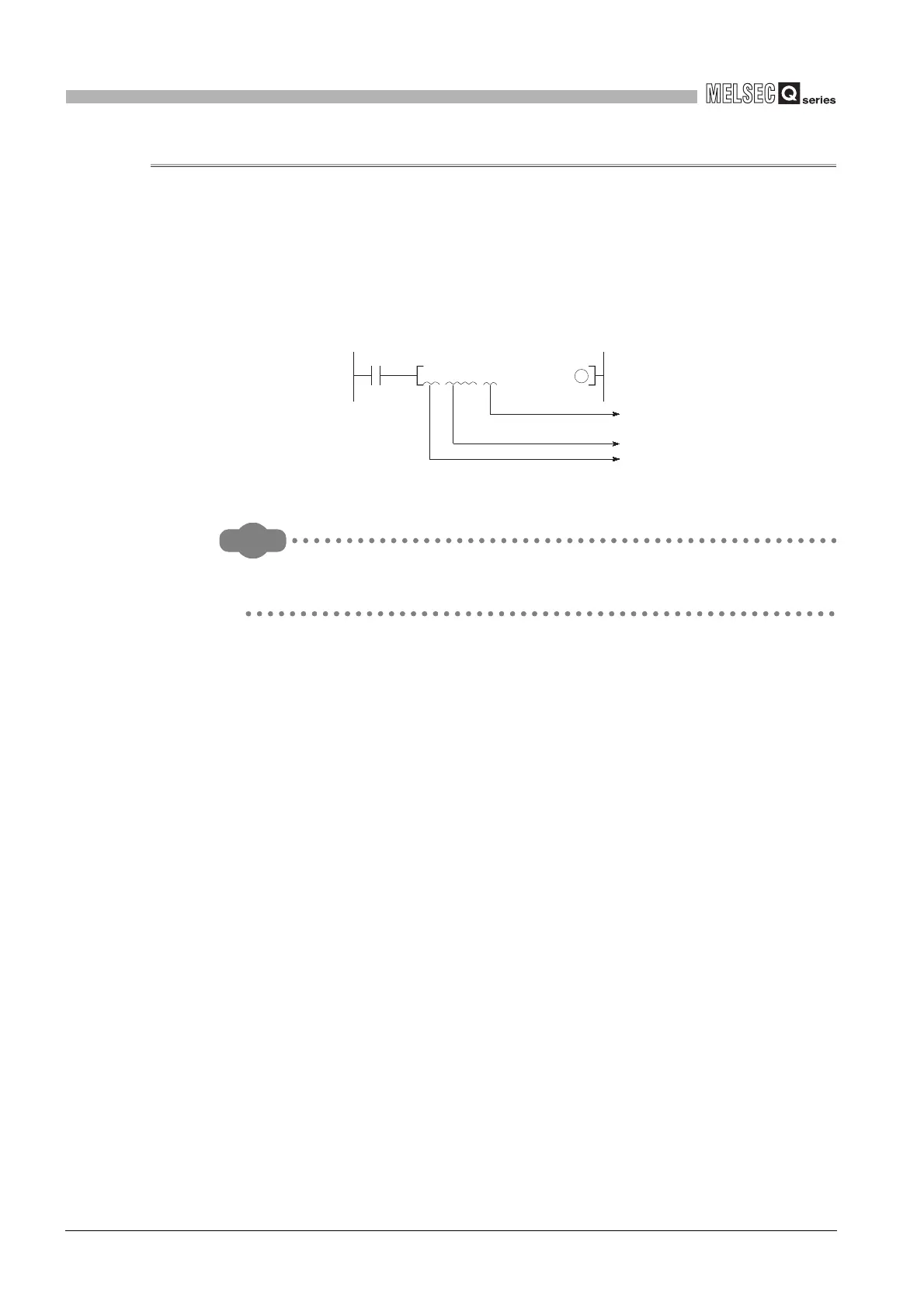

Diagram 9.86 How to specify the I/O No. designation device
UnGP.READ S1 S2 S3 D
Instruction name
I/O No. designation
device (n: I/O No.)
I/O No. designation
instruction
