Mitsubishi Q02CPU

6
FUNCTIONS
6.11 Monitor Function
6
- 42
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication with Intelligent Function Module
8
Parameters
6.11 Monitor Function
(1) Definition of Monitoring Function
This is a function to read the program, device and intellignet function module status of
the CPU module by using GX Developer.
: Available : Partly applicable : N/A
* 1 : The Basic model QCPU is irrelevant to the difference between global devices and local devices
( Section 9.13.1).
Therefore, it is not necessary to make the monitor setting of the local devices on GX Developer.
* 2 : The Basic model QCPU can only execute enforced ON/OFF by device test.

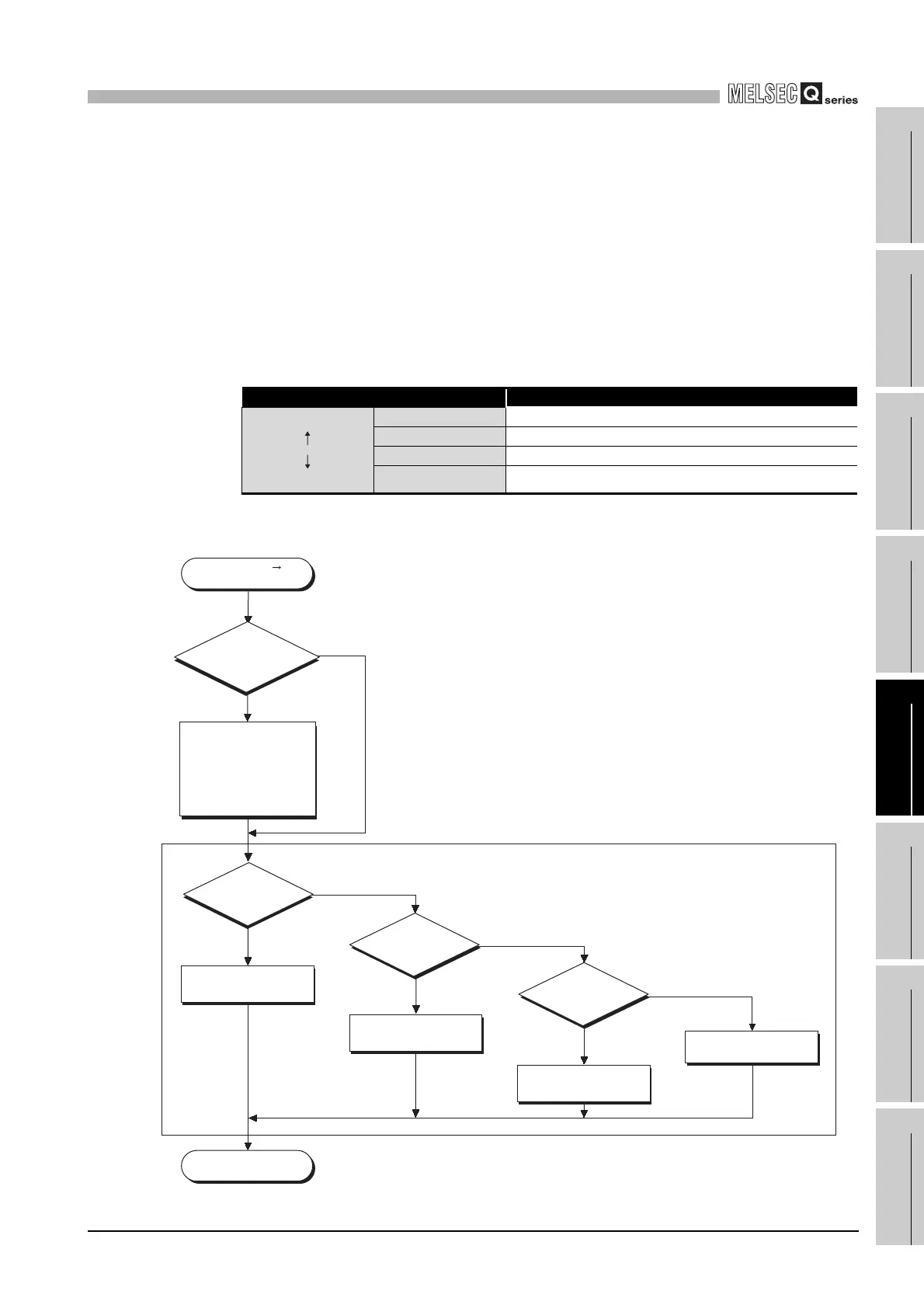

(2) Monitor request processing timing and displayed data
The CPU module performs the END processing to handle monitor requests from GX
Developer.
The results of CPU module END processing are displayed on the GX Developer side.
Table6.15 Monitor function list and applicable CPU
Monitor function
Applicability for CPU modules
Reference
Basic model
QCPU
High
Performance
model QCPU
Process CPU
Redundant
CPU
Ladder monitor
GX Developer
Operating
Manual
Device/buffer memory batch monitor
Device registration monitor
Device test
Ladder registration monitor
Monitor condition setting Section 6.11.1
Local device monitor/test
*1
Section 6.11.2
Enforced ON/OFF of external I/O
*2
Section 6.11.3
