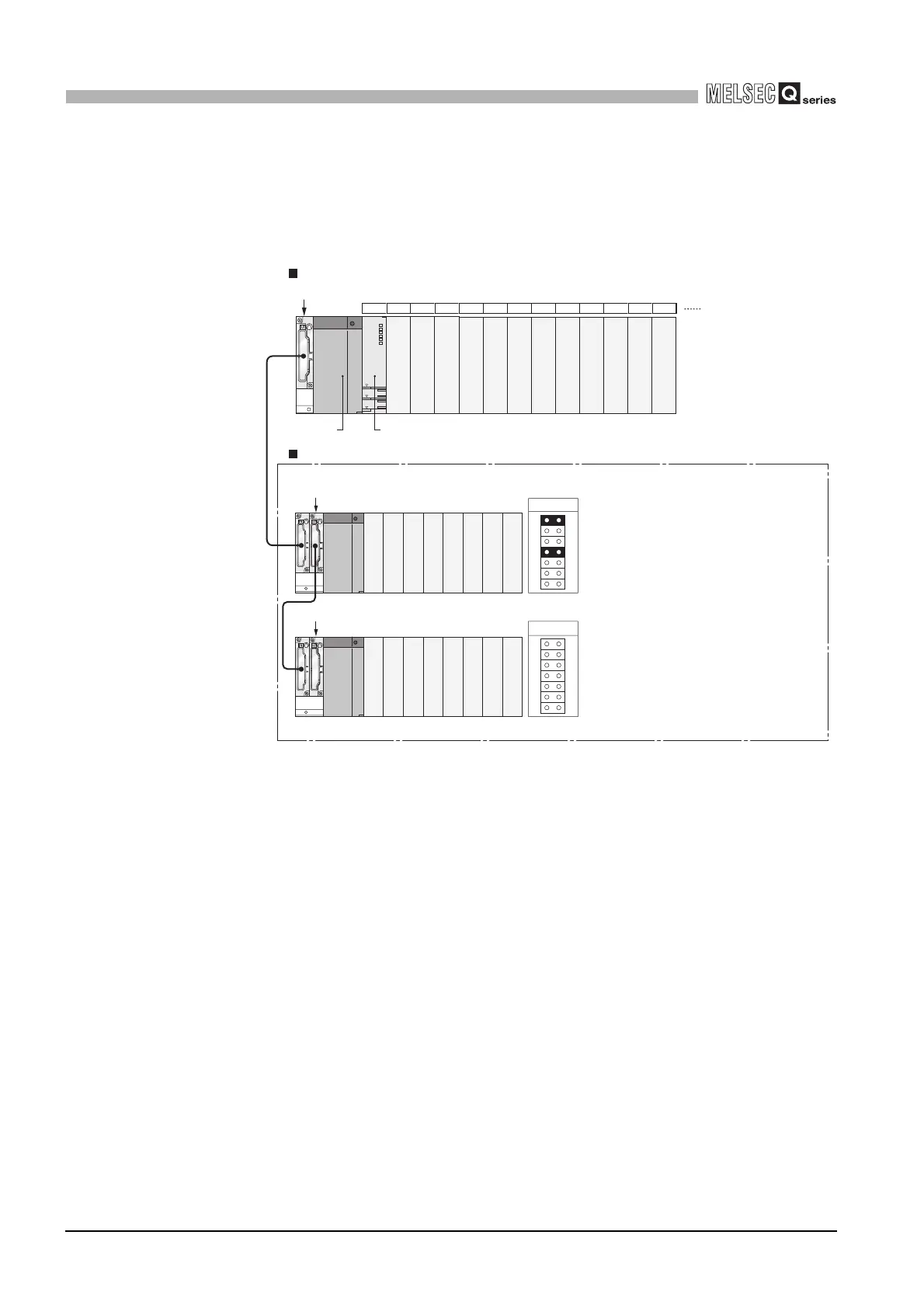

5.2 High Performance Model QCPU, Process CPU and Redundant CPU
5.2.1 Memory configuration and storable data
5
MEMORIES AND FILES HANDLED BY CPU MODULE
5.2 High Performance Model QCPU, Process CPU and Redundant
CPU
5.2.1 Memory configuration and storable data
This section explains the memories handled by the High Performance model QCPU,
Process CPU and Redundant CPU and the data that can be stored into the memories.
(1) Memory configuration

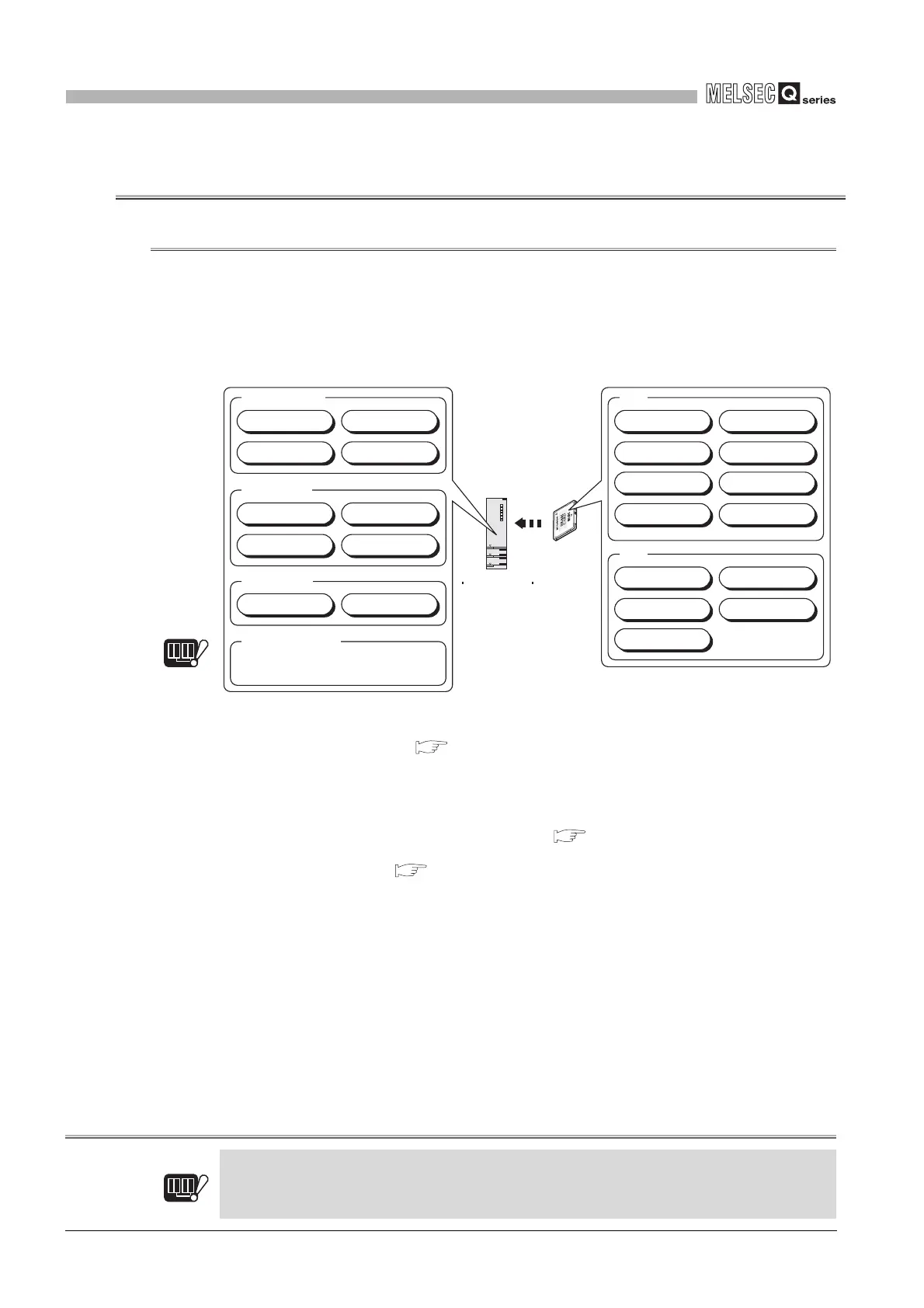

Diagram 5.13 Memory configuration of High Performance model QCPU, Process CPU or Redundant CPU
(a) Program memory ( Section 5.2.2)
Note5.1
Note1
The program memory stores the program used by the High Performance model
QCPU, Process CPU or Redundant CPU to perform operation.
The program stored in the standard ROM or memory card is booted (read) to the
program memory to perform operation. ( Section 5.2.8)
(b) Standard ROM ( Section 5.2.3)
The standard ROM stores parameters, programs and other data used to execute
boot run by the High Performance model QCPU, Process CPU or Redundant
CPU.
Note1
CPU module
Memory card
Parameter Program
Device initial value
Device comments
Program memory
Parameter Program
Device initial value
Device comments
Local devices
Standard ROM
Standard RAM
CPU shared memory
File register
Parameter Program
Device initial value
Device comments
RAM
File register Local devices
Parameter Program
Device initial value
Device comments
File register
Failure history
Sampling trace file
ROM
Note5.1
Note5.1
Redundant
The Redundant CPU does not include CPU shared memory.
Note5.1
Redundant
