5.2 High Performance Model QCPU, Process CPU and Redundant CPU
5.2.2 Program memory
5
MEMORIES AND FILES HANDLED BY CPU MODULE
5.2.2 Program memory
(1) Definition of program memory
The program memory stores the program used by the High Performance model
QCPU, Process CPU or Redundant CPU to perform operation.
The program stored in the standard ROM or memory card is booted (read) to the
program memory to perform operation. ( Section 5.2.8)
(2) Storable data
The program memory can store parameters, intelligent function module parameters,
programs, device comments, device initial values and user setting system area data.
Refer to Section 5.2.1(2) for the list of data that can be stored into each memory.
POINT
The capacity of the program memory is the same as the program capacity of each
module ( Section 5.2.1(3)).
If the total volume of the data to be stored into the program memory exceeds its
capacity, examine the following.
1. Reduce the user setting system area.
2. Transfer the data other than the programs to the standard ROM or a memory
card.
(3) Before using the program memory
Before using the program memory, be sure to format it by GX Developer.
(a) Formatting
To format the program memory, choose [Online] [Format PLC memory] on GX
Developer, and select "Program memory/Device memory" as the target memory.

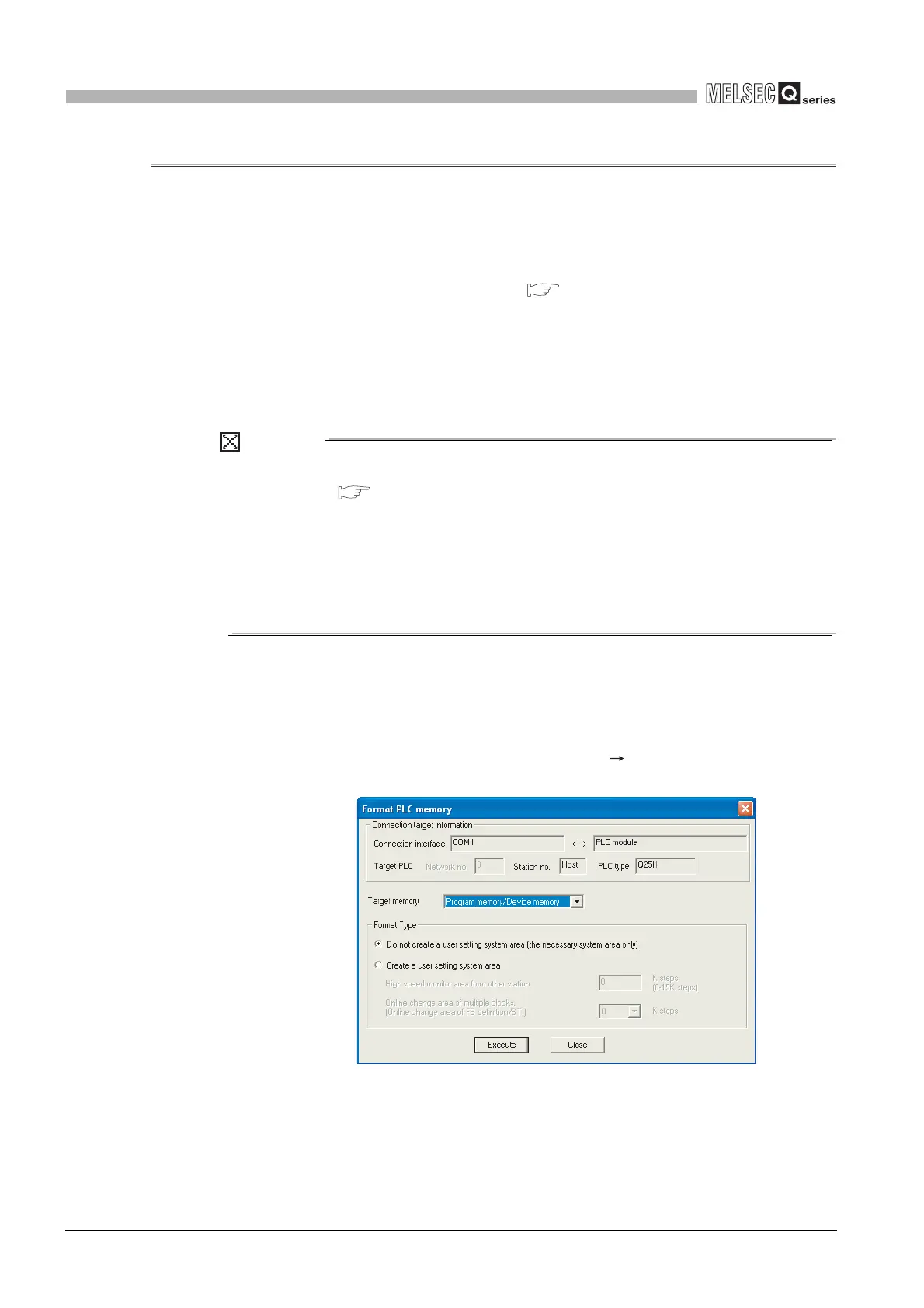

Diagram 5.14 Program memory formatting
To Next Page
