6 - 68
6.11 Monitor Function
6.11.4 Executional conditioned device test
6
FUNCTIONS
(4) Operation method
(a) Registering executional conditioned device test settings
Select the registration target step number on the program editing screen in GX
Developer. Then, select [Online] [Debug] [Executional conditioned device
test] [Register executional conditioned device test].
* 1 : When a word device which is index-modified or indirectly-specified is set, only "16 bit integer" can
be specified.
1) Multiple executional conditioned device test registrations for the same
step number
Multiple executional conditioned device test settings can be registered for one
step number.
Note, however, that multiple executional conditioned device test settings with
same device name cannot be registered for the same step number. If this
occurs, the registration data will be overwritten. (Even though the same device
is specified, if the execution timing differs, two settings can be registered for
one step; one for "Before executing instruction" and the other for "After
executing instruction".)

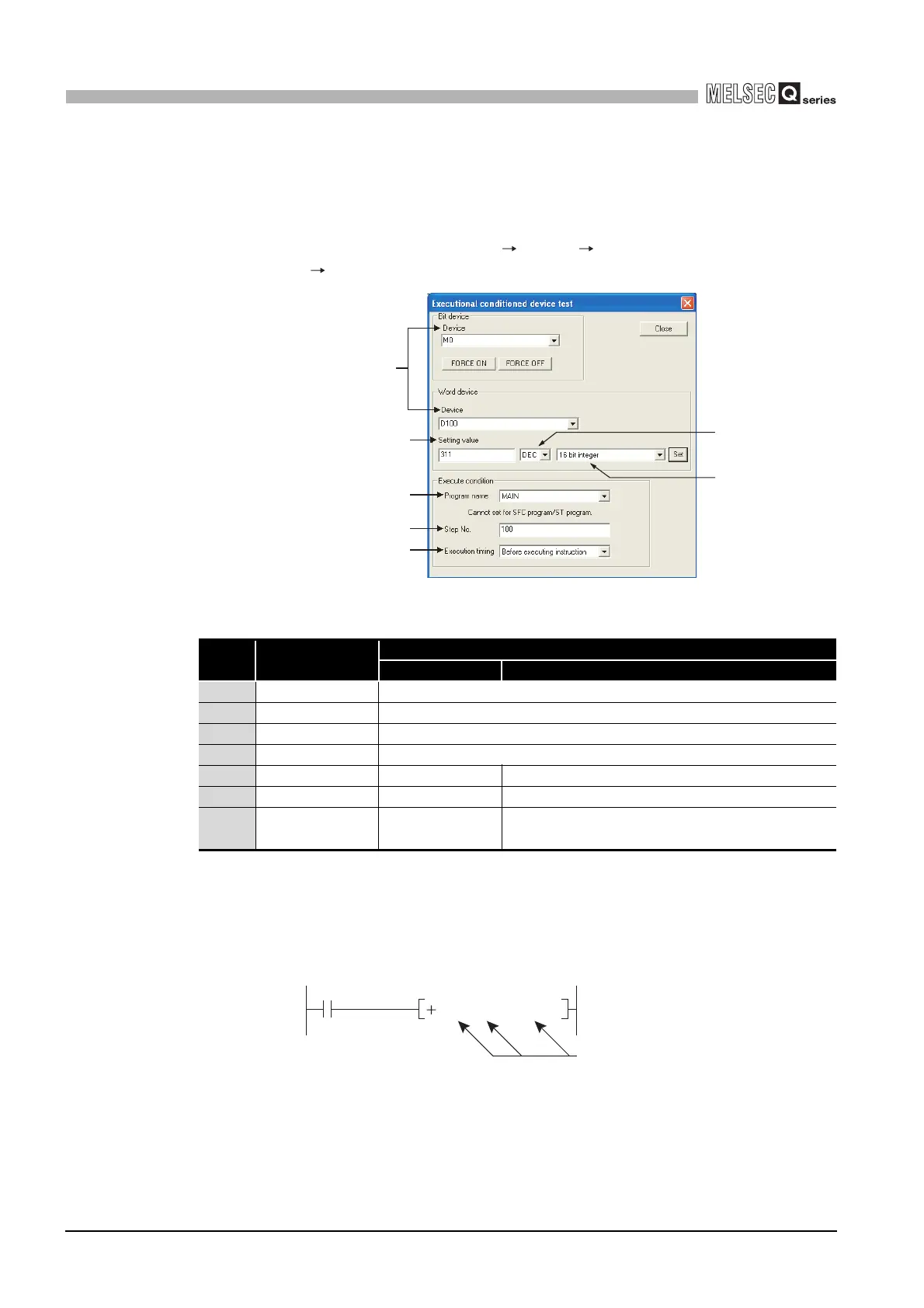

Figure 6.42 Screen for registering executional conditioned device test settings
Table6.23 Items on the screen for registering executional conditioned device test settings
No. Item
Setting range
For bit device For word device
1) Program name Name of a program registered in the CPU module
2) Step No. 0 to (Step No. for the END instruction)
3) Device Device listed at (2) in this section
4) Execution timing Before executing instruction / After executing instruction
5) Setting value - (Not specified) Setting range corresponding to each value format
6) DEC / HEX - (Not specified) DEC (decimal) / HEX (hexadecimal)
7)
Value format
*1
- (Not specified)
16 bit integer / 32 bit integer / Real number (single
precision) / Real number (Double precision)
3)
5)
1)
2)
4)
6)
7)
Devices that executional conditioned
device test settings can be registered
for the start step of the + instruction.
D0 D10 D20
To Next Page
