6
FUNCTIONS
6.22 High Speed Interrupt Function
6.22.1 High speed interrupt program execution
6
- 138
1
Overview
2
Performance
Specification
3
Sequence Program
Configuration and
Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files
Handled by CPU Module
6
Functions
7
Communication with
Intelligent Function
Module
8
Parameters
6.22.1 High speed interrupt program executionNote58Note59
The high speed interrupt program execution function is designed to run an interrupt
program according to the setting of high speed interrupt pointer I49.
(1) Setting method
Set the high speed interrupt pointer I49 at "High speed interrupt I49 fixed scan
interval" after choosing "PLC system" - "System interrupt settings" - "High speed
interrupt setting" on the PLC parameter screen.
(2) Precautions
(a) High speed interrupt while interrupt is disabled
The high speed interrupt program is only executed as interrupt enable.
Refer to Section 6.22.4 (3) for the items that delay high speed interrupt's start
from interrupt disable.

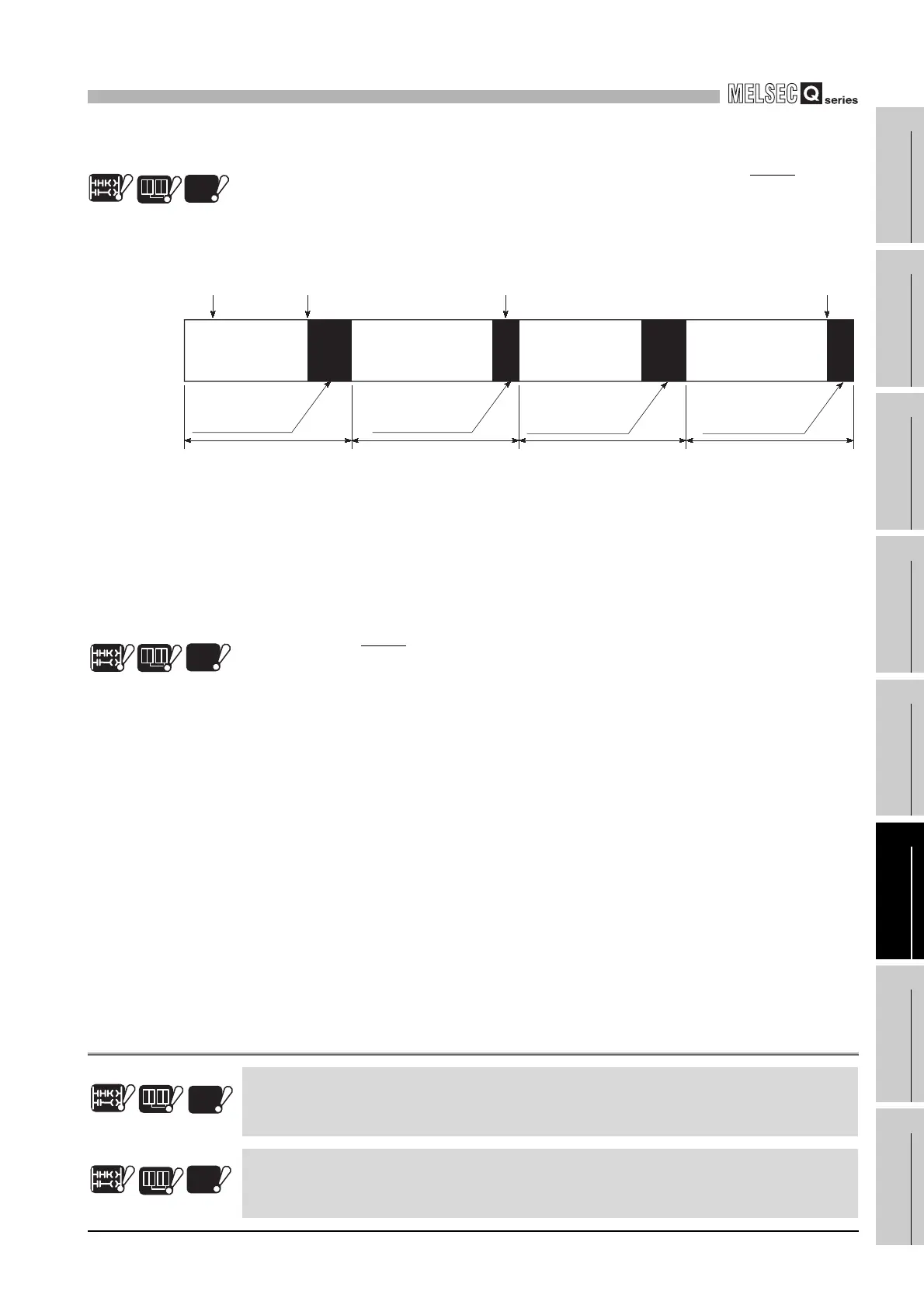

(b) When high speed interrupt is ignored
If the interrupt disable period continues longer than the set interrupt cycle interval,
high speed interrupt may be ignored.
High speed interrupt is ignored once when it occurs twice during interrupt disable.
Note58
Note59

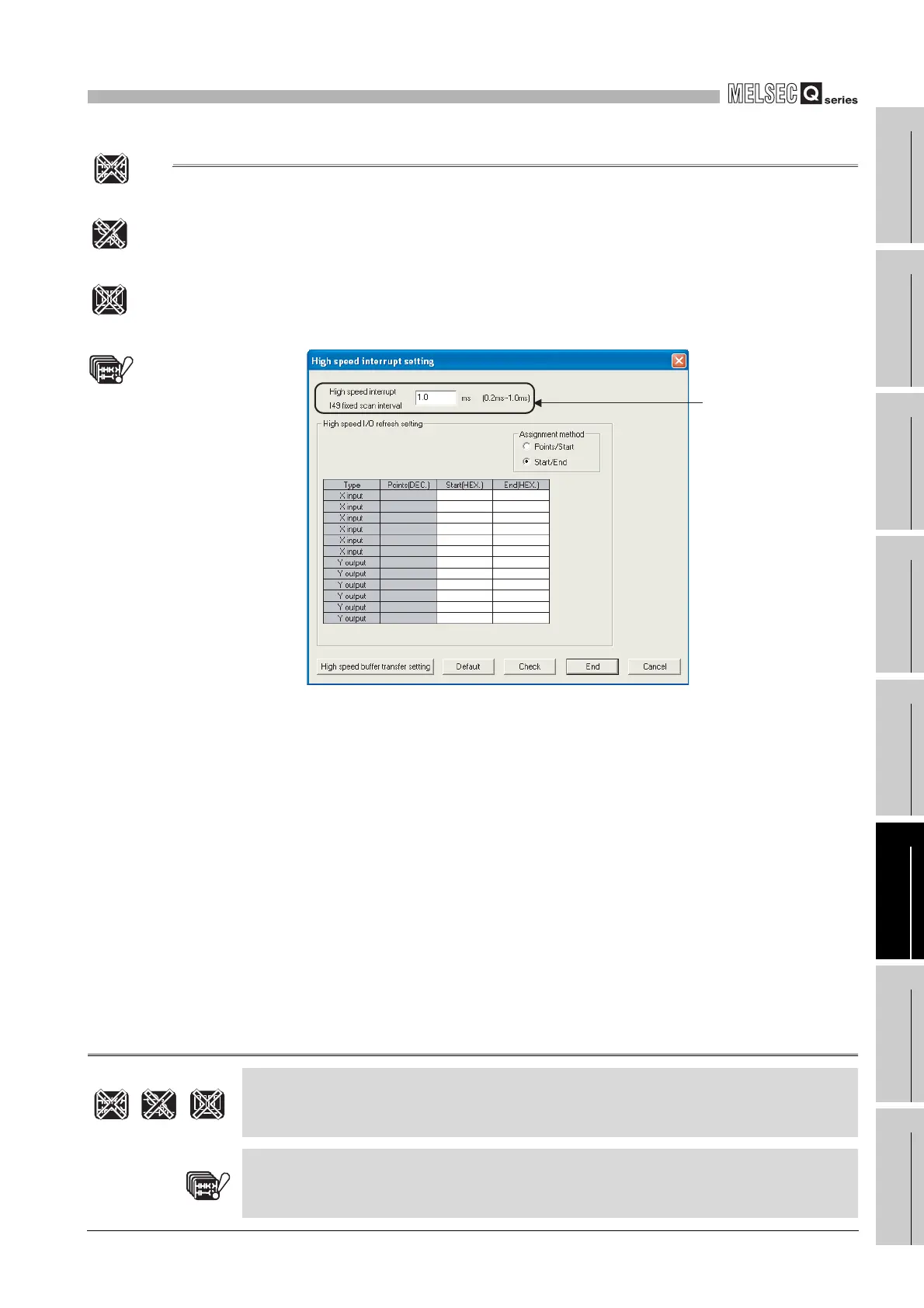

Diagram 6.81 High speed interrupt setting
Basic
Process
Redundant
Note6.57
Note6.57
Note6.57
High
Performance
Note6.58
The Basic model QCPU, Process CPU and Redundant CPU do not support the high speed
interrupt program function.
Basic
Process
Redundant
Note6.57 Note6.57Note6.57
The Q02CPU does not support the high speed interrupt program function.
High
Performance
Note6.58
Set within the range
0.2 to 1.0ms.
