(b) Checking the memory capacity after formatting
To check the memory capacity, choose [Online] [Read from PLC] on GX
Developer.
1) Select "Standard RAM" as the target memory on the Read from PLC screen.
2) Click the button.
3) The memory capacity appears in the Total free space volume field.

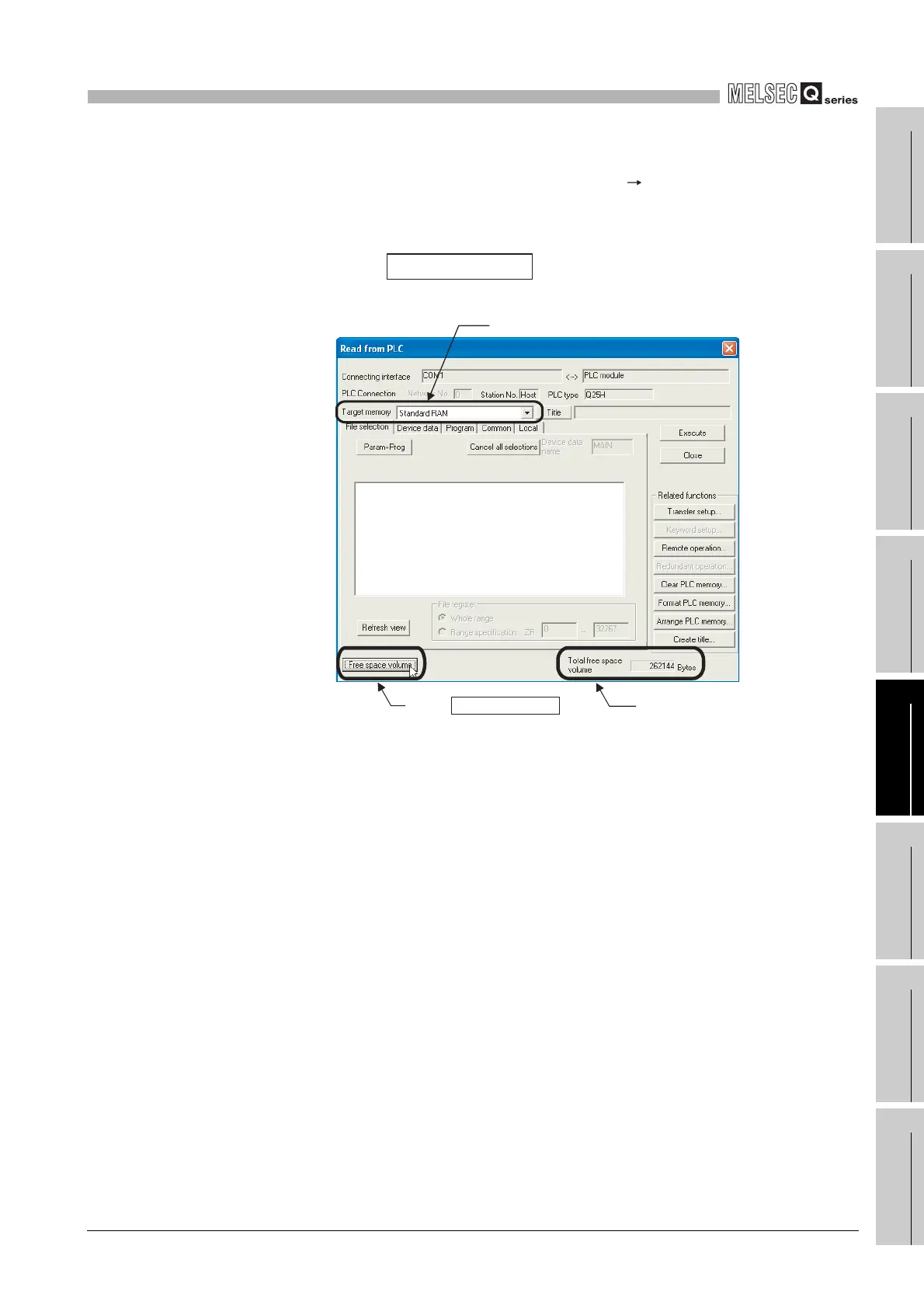

Diagram 5.19 Memory capacity checking procedure
Free space volume
1) Select target memory.
2) Click Free space volume button.
3) Memory capacity is displayed.
