FUNCTIONS
6.13 Execution Time Measurement
6.13.1 Program list monitor
6 - 95
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication using built-in Ethernet ports of CPU module
8
Communication with Intelligent Function Module
(3) Startup program
Note6.36
Note37
Program can be started on the program list monitor screen.
Clicking the button displays the following dialog box.
(a) Program name
Select the program set in the program setting of the PLC parameter dialog box.
A program name cannot be entered as desired.
(b) Startup mode
The stand-by type program can be changed to "Scan execution", "Low speed
execution"
Note6.37
or "Fixed scan execution".
The value set in the program setting of the PLC parameter dialog box is displayed
as the default value of fixed scan execution. ms or scan be selected as the
unit.Note38
Note37

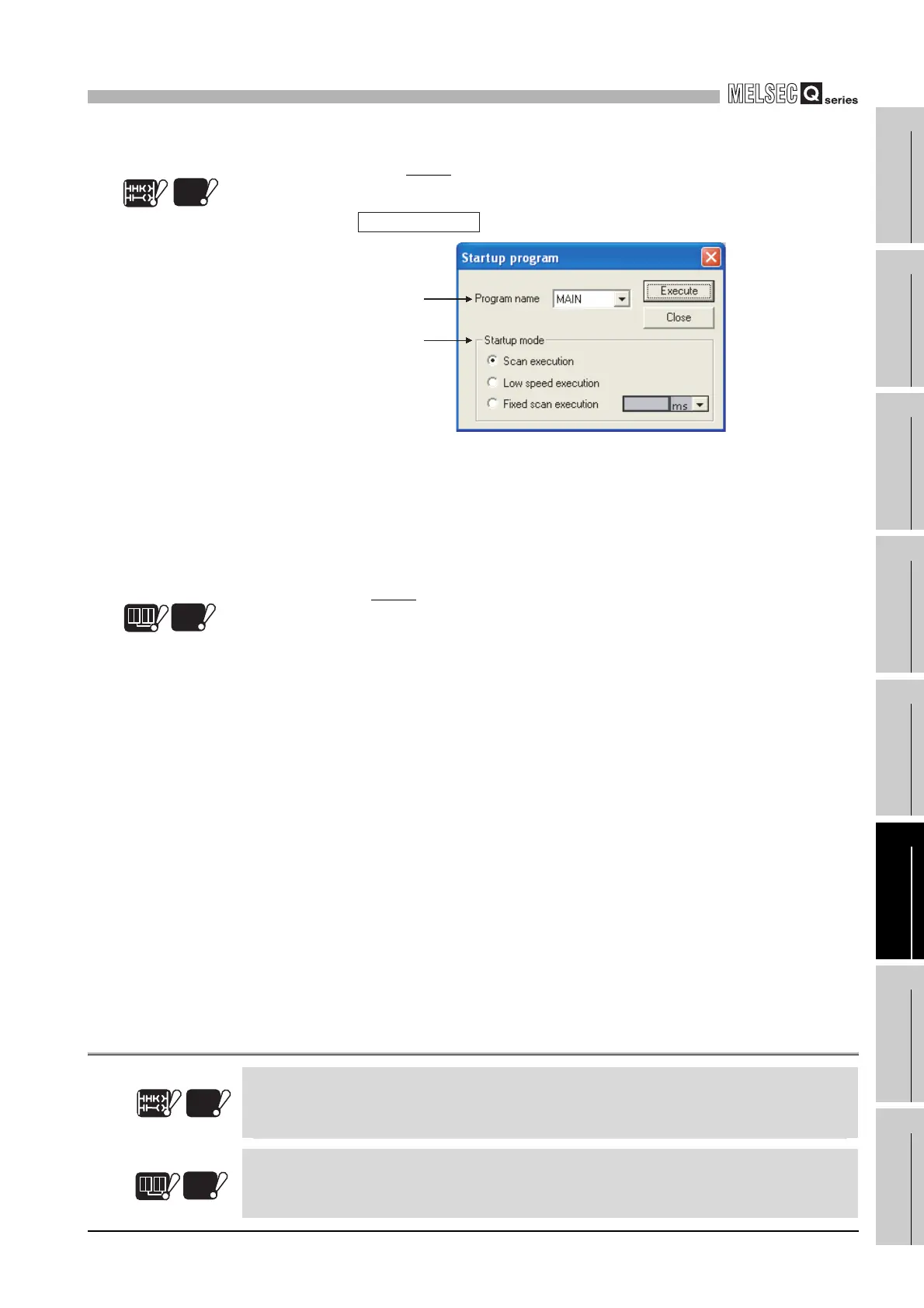

Figure 6.62 Startup program screen
Note38
Basic
Note6.36
Universal
UD
Note6.36
In the case of Basic model QCPU, a program cannot be started from the program list monitor
screen.
Basic
Universal
UD
Note6.36
Note6.36
Startup program
(b)
(a)
Redundant
Universal
UD
Note6.37
Note6.37
Since the Redundant CPU and Universal model QCPU cannot use low speed execution type
programs, "Low speed execution" cannot be selected in the start mode.
Redundant
Universal
UD
Note6.37 Note6.37
