COMMUNICATION WITH INTELLIGENT FUNCTION
MODULE
7.1 Communication Between CPU Module and Intelligent Function Modules
7.1.4 Communication by intelligent function module device
7
- 7
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication with Intelligent Function Module
8
Parameters
POINT
The intelligent function module device accesses the intelligent function module
every time the instruction is executed.
When reading/writing buffer memory data using multiple intelligent function
module devices in a sequence program, make sure to read/write the data in one
position of the program using the FROM/TO instruction.
When writing using multiple intelligent function module devices.
When writing using the TO instruction.

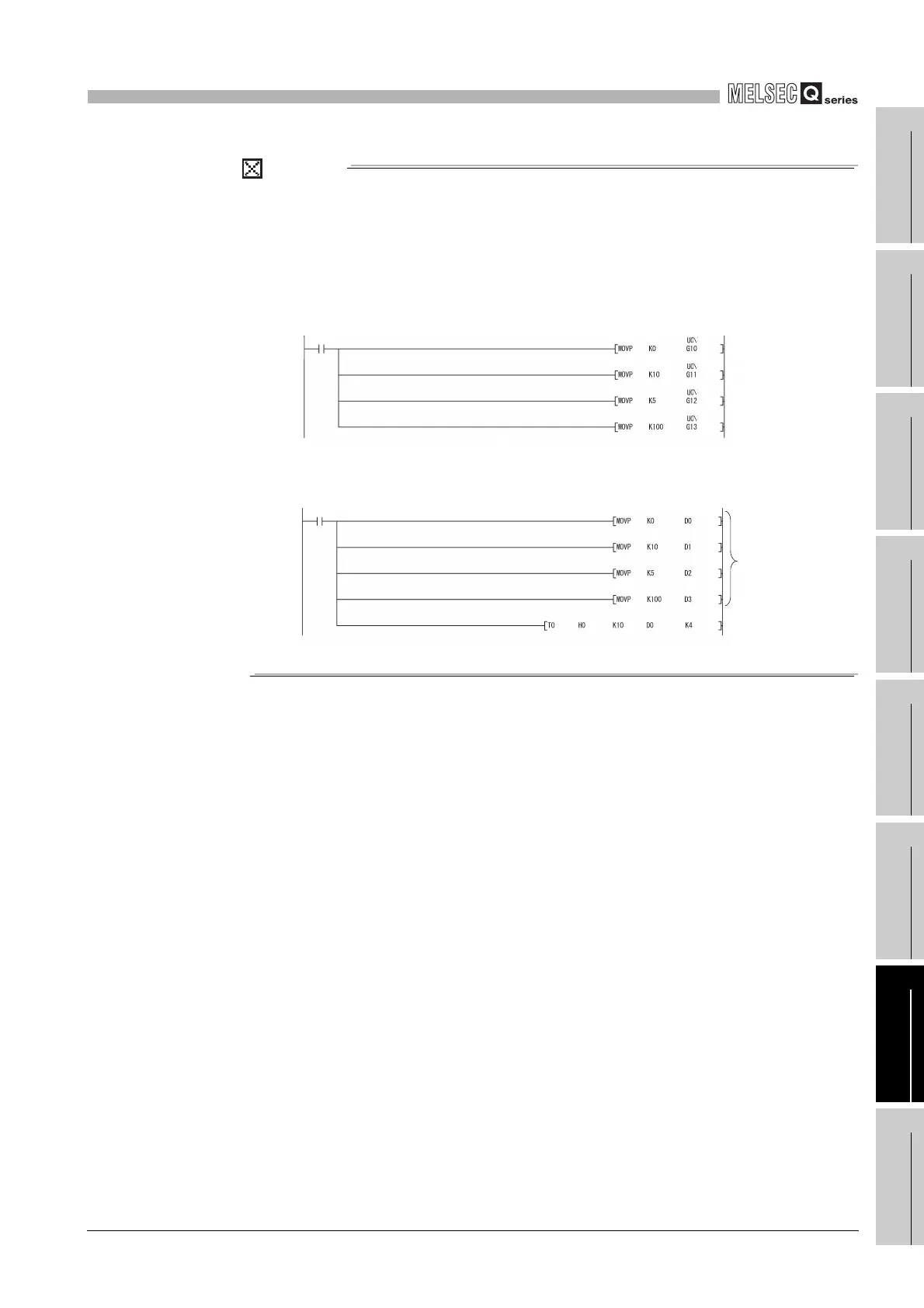

Diagram 7.5 When writing using multiple intelligent function module devices
Diagram 7.6 When writing using the TO instruction
Written in 1 location
Stored into data
register, etc.
