Mitsubishi Q02CPU

8
PARAMETERS
8.1 PLC Parameters
8.1.2 High Performance model QCPU, Process CPU, Redundant CPU
8
- 15
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication with Intelligent Function Module
8
Parameters
(2) PLC system
Make setting necessary to use the CPU module.
The parameters may be the default values to perform control.
* 1 : Cannot be set when the Process CPU or Redundant CPU is used.
(Continued on next page)

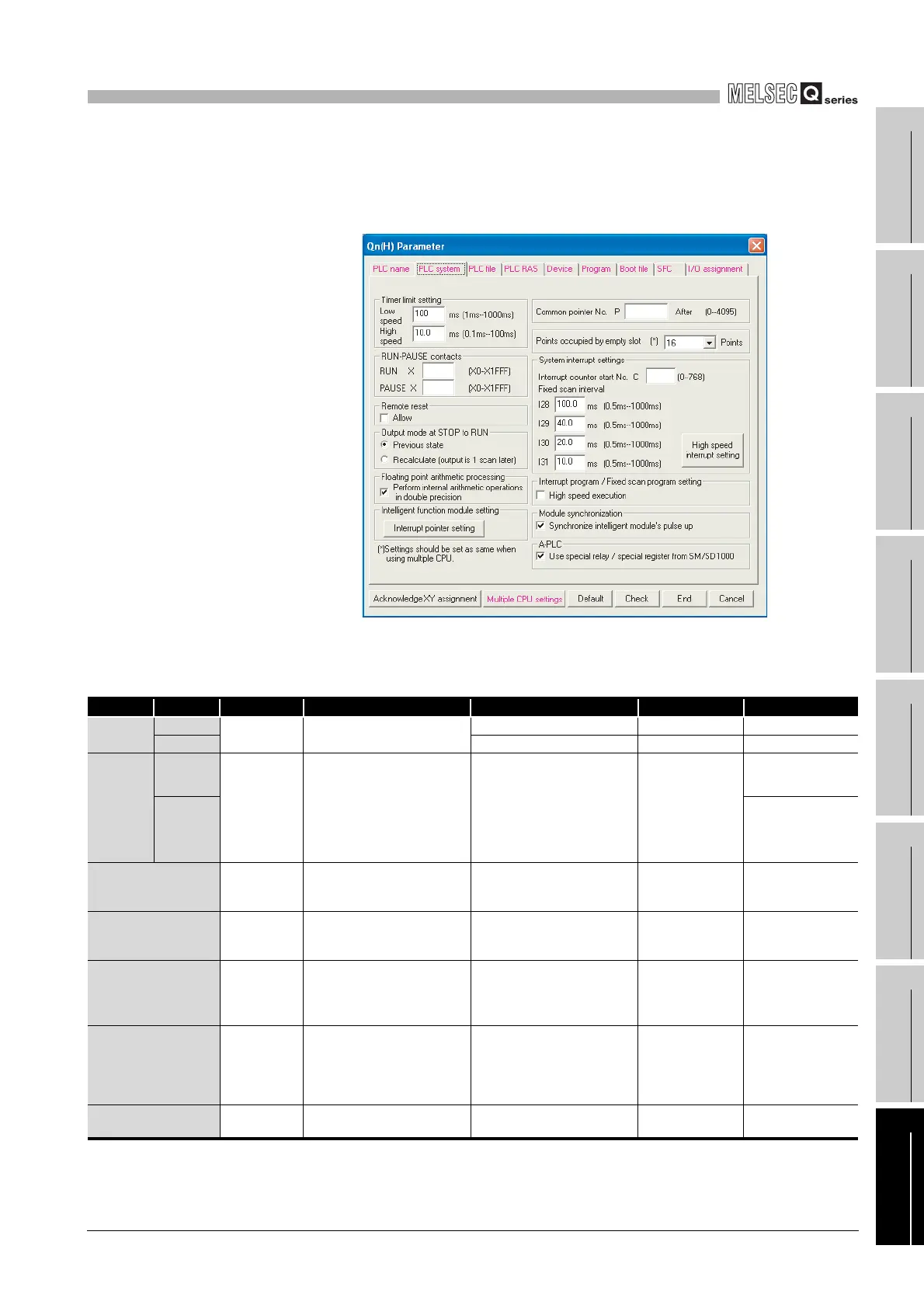

Diagram 8.13 PLC system
Table8.13 PLC system list
Item Parameter No. Description Setting range Default value Reference
Timer limit
setting
Low speed
1000
H
Set the time limit of the low
speed timer/high speed timer.
1ms to 1000ms (1ms unit) 100ms Section 9.2.10
High speed 0.1ms to 100.0ms (0.1ms unit) 10.0ms Section 9.2.10
RUN-
PAUSE
contact
RUN
1001
H
Set the contact that controls
RUN/PAUSE of the CPU
module. Setting of only the
PAUSE contact is not allowed.
(The RUN contact or RUN
contact and PAUSE contact can
be set.)
X0 to 1FFF No setting
Section 6.6.1
PAUSE Section 6.6.2
Remote reset 1002H
Set enable/disable of remote
reset operation from GX
Developer.
Enable/disable Disable Section 6.6.3
Output mode at STOP to
RUN
1003
H
Set the output (Y) status when
the STOP status is switched to
the RUN status.
Provide output (Y) status before
STOP/Clear output (Y) (output
one scan later)
Provide output (Y)
status before STOP
Section 6.4
Floating point arithmetic
processing
*1
1004H
Set whether the floating-point
operation processing is
performed with double precision
or not.
Perform/Do not perform floating-
point operation processing with
double precision
Perform floating-
point operation
processing with
double precision
Section 3.9.4
Intelligent function
module setting (interrupt
pointer setting)
100A
H
Set the assignment of the
interrupt pointers (I50 to 255)
and the start I/O No. and start SI
No. of the intelligent function
module.
Start I/O No.
Start SI No.
I50 to 255
No setting Section 9.10
Common pointer No. 1005
H
Set the start No. of the pointers
used as common pointers.
P0 to 4095 No setting Section 9.9.2
