OVERVIEW
1.1 Features
1.1.4 Features of Redundant CPU
1
- 16
1
Overview
2
Performance Specification
3
Sequence Program Configuration and Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files Handled by CPU Module
6
Functions
7
Communication with Intelligent Function Module
8
Parameters
(b) Redundant power supply system
Using the redundant main base unit (Q3 RB) and redundant power supply
module (Q6 RB) on the remote I/O station side, the remote I/O station side
power supply can be made redundant.
This enables the power supply module to be changed without stopping the system
if the remote I/O station side power supply module becomes faulty.
POINT
1. When using the Redundant CPU, use GX Developer Version 8.18U or later.
2. Use PX Developer in combination with GX Developer Version.
When using the Redundant CPU, use PX Developer Version 1.06G or later.
Refer to the PX Developer manual for details of PX Developer.
Remark
Refer to the following manual for detailed features, functions and others of the
Redundant CPU.
QnPRHCPU User's Manual (Redundant System)

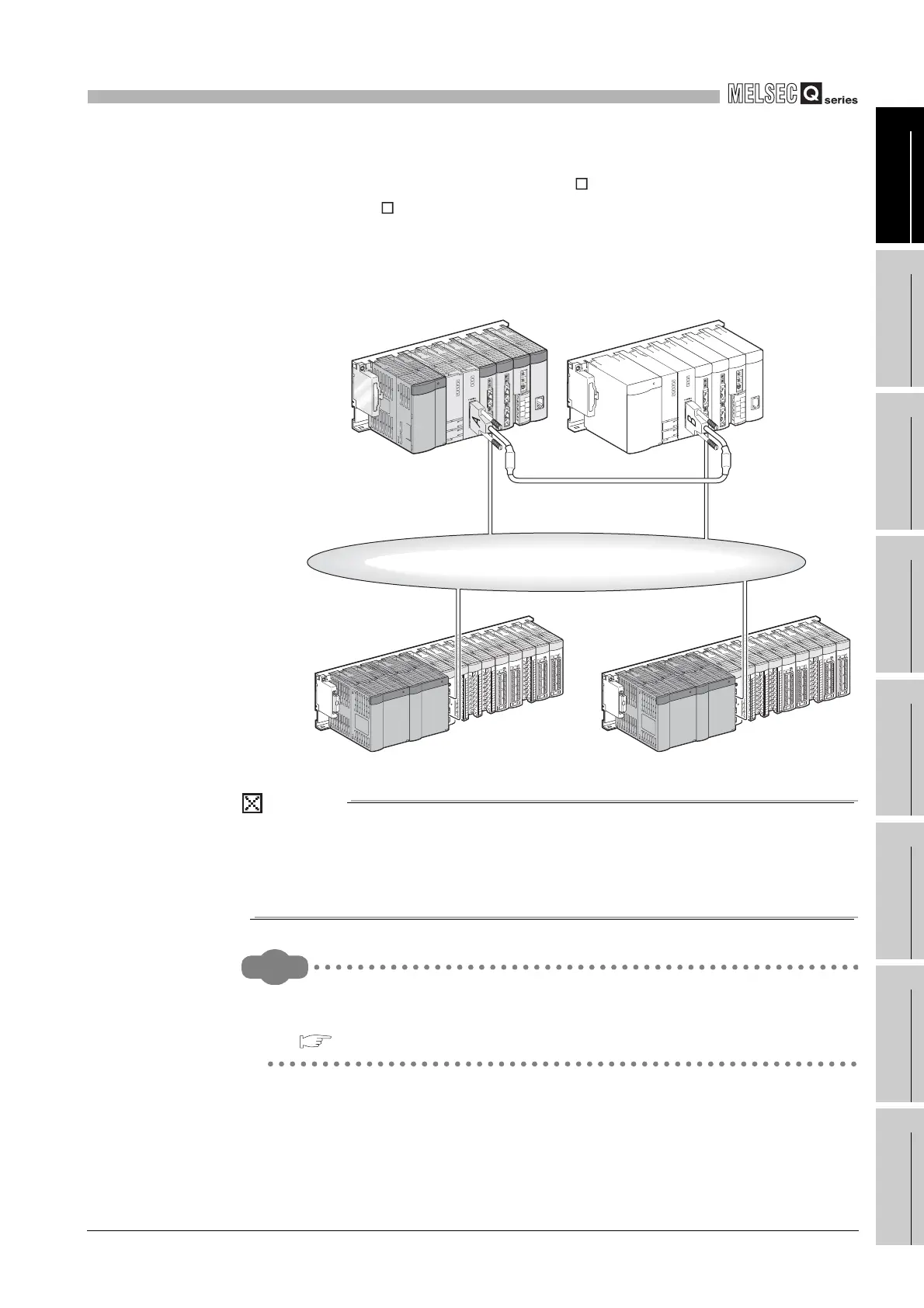

Diagram 1.6 Redundant power supply system
MELSECNET/H remote I/O network
Tracking cable
Redundant power
supply on remote
I/O station side!
Redundant power
supply on remote
I/O station side!
Control system
Standby system
