9.2 Internal User Devices
9.2.1 Input (X)
POINT
1. When debugging a program, an input (X) can be set to ON/OFF as described
below.
• GX Developer test operation
•OUT Xn instruction
2. The input (X) can also be used in the following cases.
• Refresh destination (CPU module side) device of RX of CC-Link
• Refresh destination (CPU module side) device of link input of
MELSECNET/H

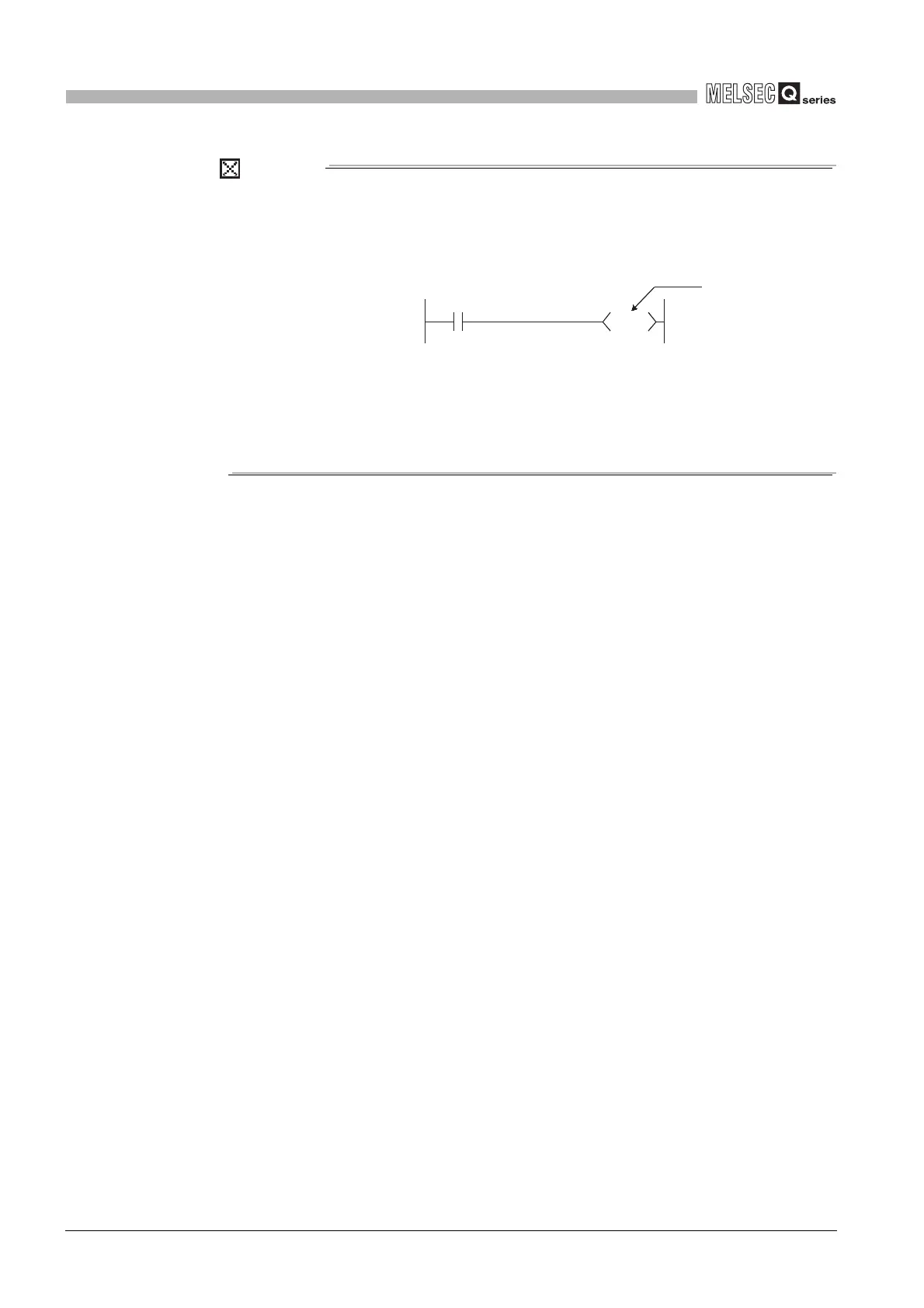

Diagram 9.5 Input(X) ON/OFF by the OUT Xn instruction
X1
OUTX1
ON/OFF command
To Next Page
