3.3 Settings for Creation and Execution of Multiple Sequence Programs
3.3.2 Scan execution type program
3
- 32
1
Overview
2
Performance
Specification
3
Sequence Program
Configuration and
Execution Conditions
4
I/O Nunber Assignment
5
Memories and Files
Handled by CPU Module
6
Functions
7
Communication with
Intelligent Function
Module
8
Parameters
(3) Settings for execution of scan execution type programs
(a) Program
Set the execution type to "Scan" in the program of the PLC parameter dialog box.
When using multiple scan execution type programs, register them in the order of
execution.
(b) WDT Setting
When changing the WDT from the default value, set the WDT within a range of
10ms to 2000ms in the WDT setting of the PLC parameter dialog box. (Setting
unit: 10ms)

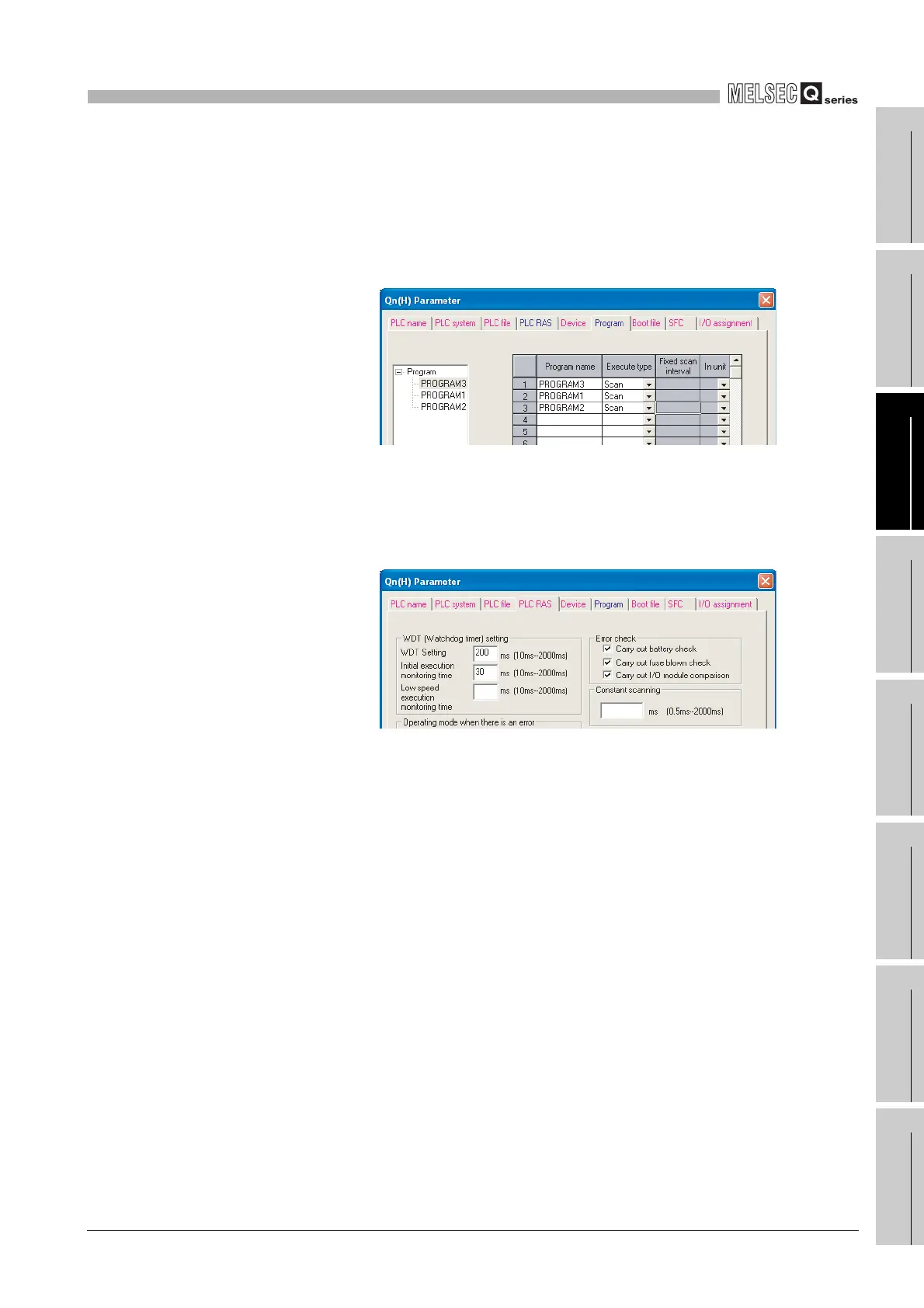

Diagram 3.27 Program
Diagram 3.28 PLC RAS (WDT Setting)
