Dansensor® Lippke® 5000 EN User Guide 113
P/N 380419-C
05/2022

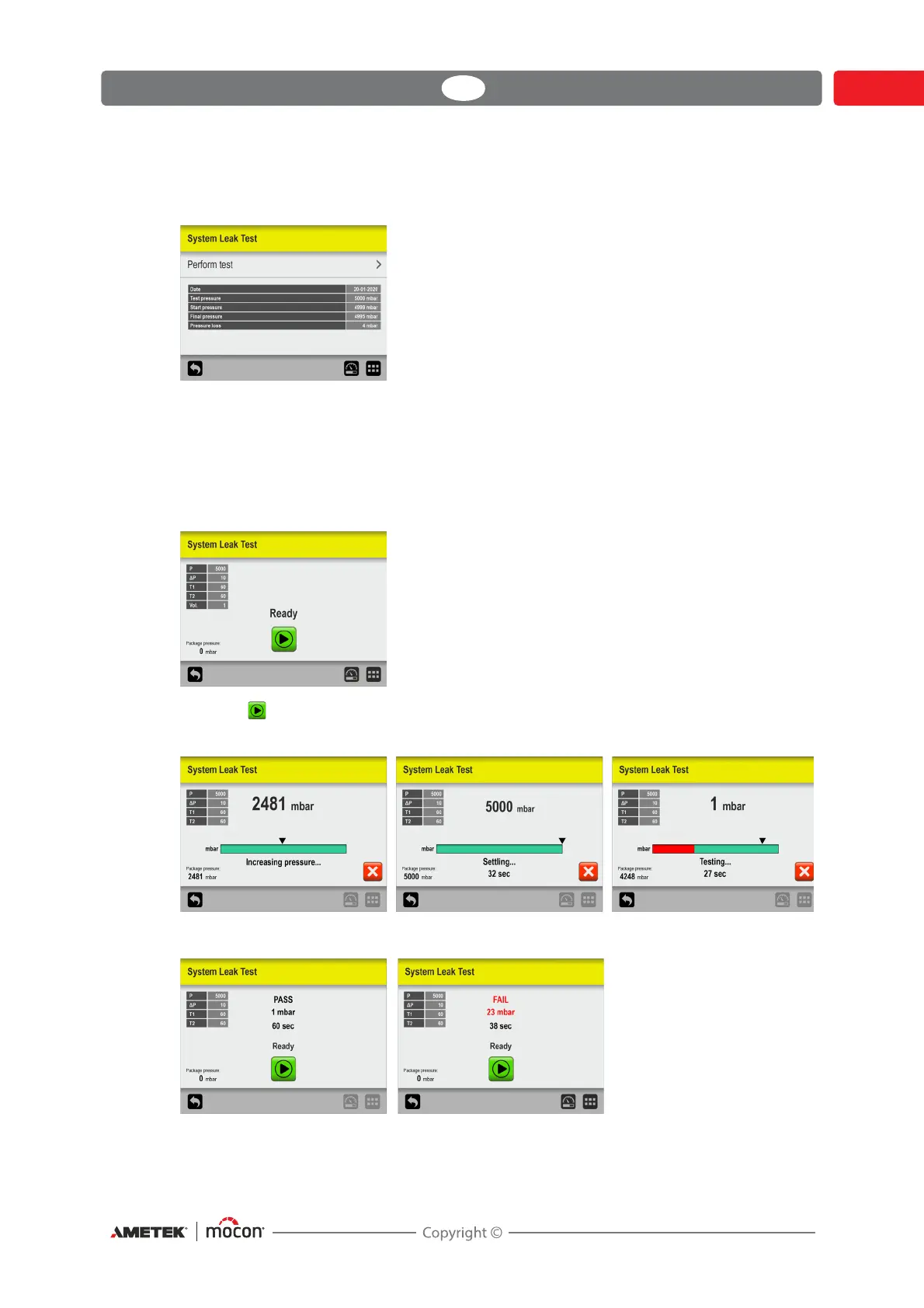

4. The System Leak Test screen shows the date, test pressures and measured pressure loss
for the most recent test.

Press Perform test.
5. The test screen shows the parameters for the current test. The test pressure (P) is
automatically adjusted to 1000 mbar below the current inlet pressure and the leak limit
(ΔP) is defined as follows:

Test pressure below 2500 mbar -> 5 mbar
Test pressure 2500 to 5500 mbar -> 0.2% of test pressure
Press the button to start the test.
6. The test goes through the various stages...
...and when finished the test result is displayed.
The highest measured pressure drop is displayed and for failed tests the specified time
shows how long it took before the specified
leak limit (ΔP) was exceeded.
