10 User Guide EN Dansensor® Lippke® 5000
P/N 380419-C
05/2022

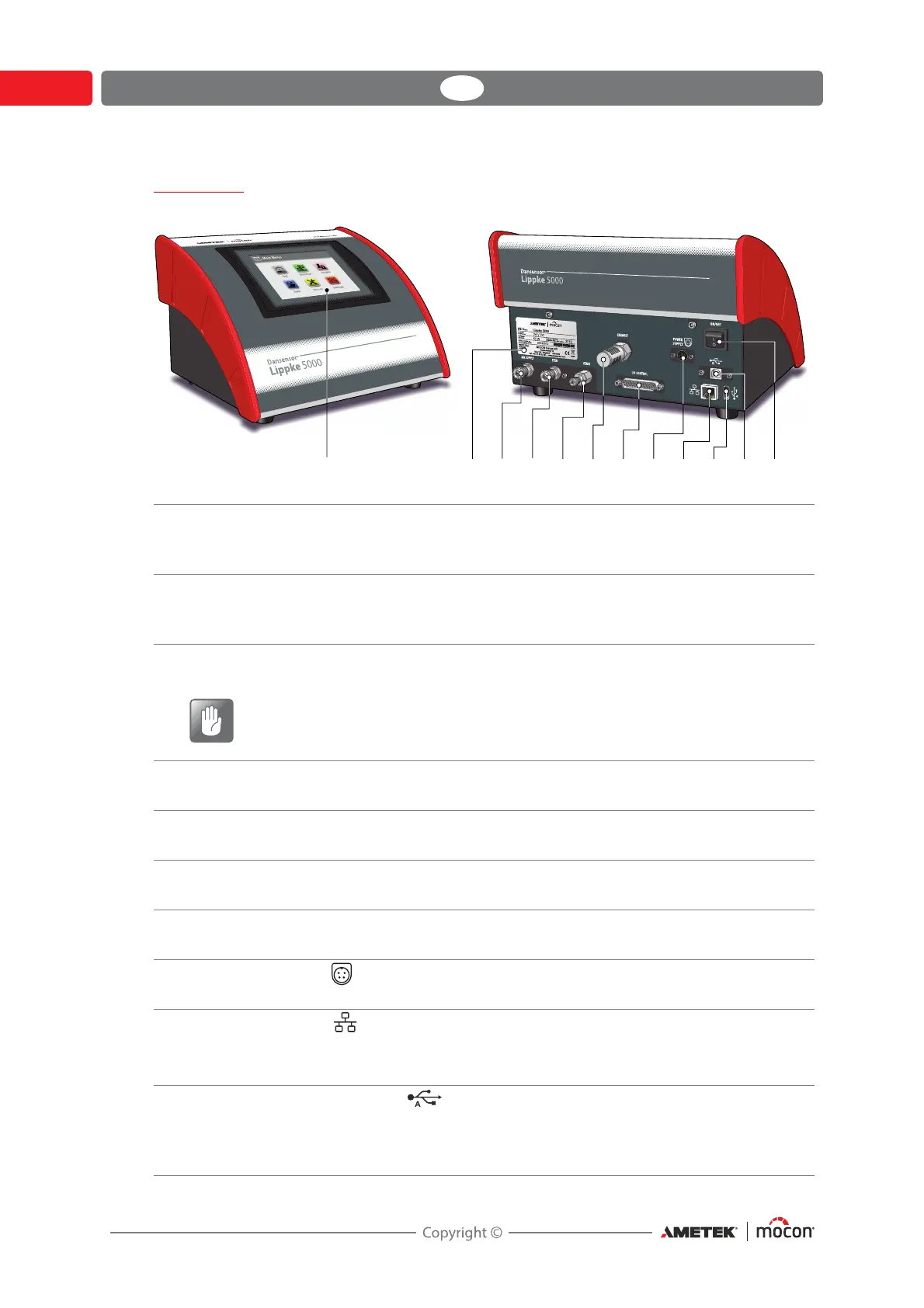

Overview
5.7" colour touch display
For intuitive operation of the device by use of explanatory icons and easy
understandable text messages and buttons.
Device name plate
Holds device information such as device model, voltage, manufacturing date and serial
number.
“AIR SUPPLY” connector
Connector for the device’s compressed air supply.
CAUTION! The supply pressure must not exceed the max. pressure as
specified in "Compressed air supply" on page 124.
“FEED” connector
Connector for the measurement accessory air supply outlet.
“SENSE” connector
Pressure measurement inlet connector.
“EXHAUST” outlet
Package pressure exhaust outlet. The outlet is fitted with a noise filter.
“I/O CONTROL” connector
(Not used)
“POWER SUPPLY”
For connection of the power supply delivered with the device.
LAN/Ethernet port
For connection to local computer network for external data collection (LAN Data dump).
The port has 2 built-in status indicator LED’s.
USB (2.0 - Type A) connector
For connection of a USB memory stick for exporting/importing of files and updating of
firmware or for auxiliary equipment such as a bar-code scanner, an external keyboard
and/or a printer.
