Dansensor® Lippke® 5000 EN User Guide 55
P/N 380419-C
05/2022

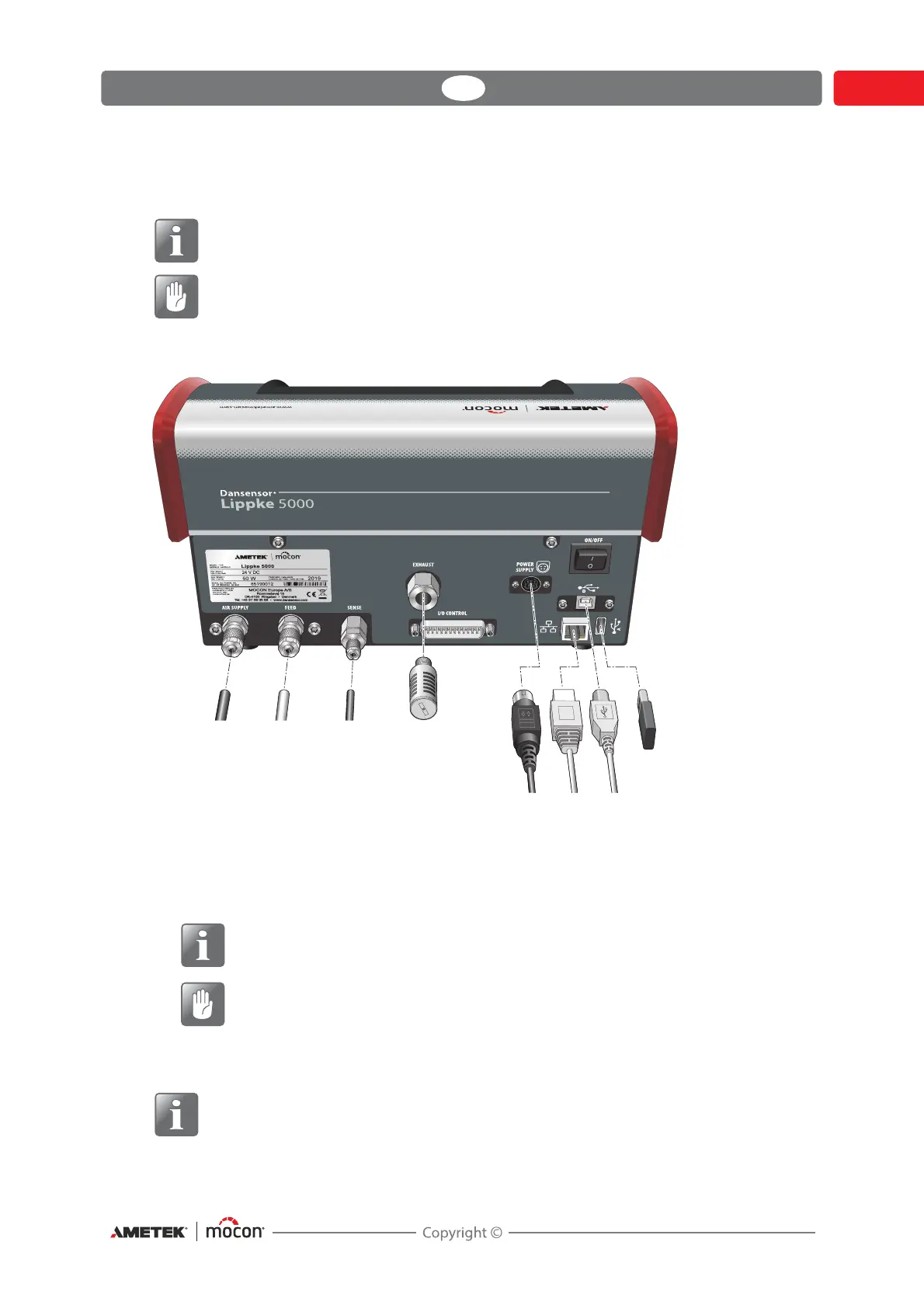

Connecting hoses and cables
NOTE! The device and the various accessories must be placed on an even and steady
surface with sufficient working area for the type of packages to be tested.
CAUTION! Make sure to place the device so that it is possible to easily switch off the
power to the unit, either by means of the ON/OFF switch or by disconnecting the
power supply from the device.
1. Connect the compressed air supply to the “AIR SUPPLY” inlet connector - see
"Compressed air supply" on page 124 for details.
NOTE! Make sure that the hose between the device and the pressure regulator
is max. 1m, otherwise you must compensate for the pressure drop in the hose.
CAUTION! When connecting the hose, make sure that it can not be squeezed or
blocked in any way.
2. Connect the Ø6/4 mm hose from the accessory to the “FEED” outlet connector.
3. Connect the Ø4/2.7 mm hose from the accessory to the “SENSE” inlet connector.
NOTE! The hoses from the connected accessory should be used as they are at
delivery and thus neither be shortened nor lengthened.
