PARISON CONTROLLER
moog
100 MAN145-UM-D01A-EN Moog Italiana srl - Bergamo
4.17 Recipe.

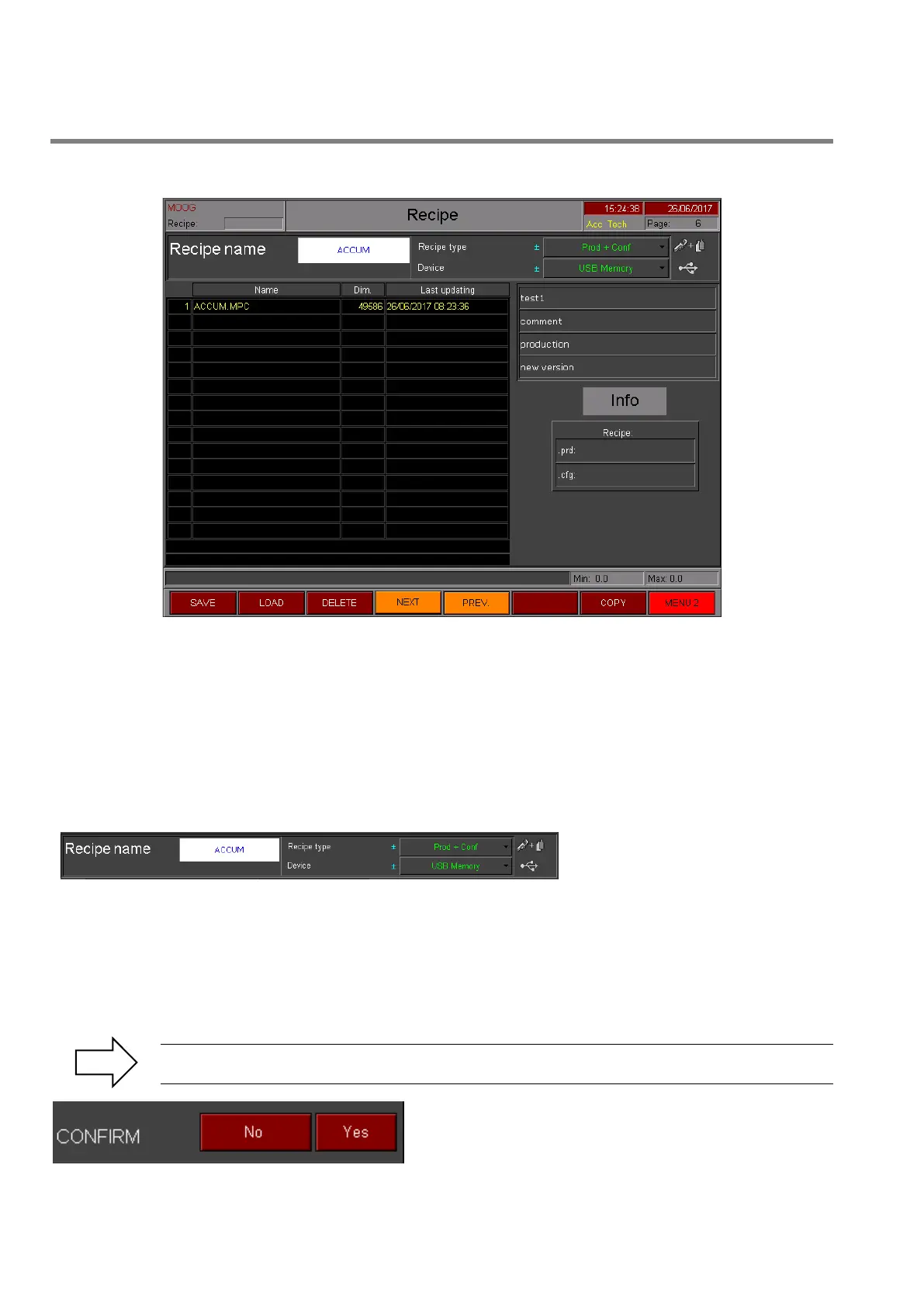

Figure 108
Recipe: Recipe page.
Access: From Main Menu 2 with key F4.
Use: In this page it’s possible to manage the recipes. It’s possible to save, load (only with machine in manual
mode) cancel or copy a recipe both on internal Ram Disk and on external USB by selecting the correct device.
It’s also possible to format the device.
Only a few recipes can be saved on Ram Disk (Max 6) while on USB it’s possible to save a lot of recipes.
4.17.1 Recipe Management.
Recipe Type: With Technical level it is
possible to select the recipe type
choosing between Product,
Configuration or both.
With Responsible level it is possible to use only Product recipe. The .PRD file contains data relating to the mould.
(Work Head data, Extruder data, Accumulator data, Production data, Timer Switch data). The .CFG file contains
data relating to the configuration of the machine (Calibration Machine setup data, Number heads, Work Head setup
data, Extruder setup data, Accumulator setup data).
Recipe Name: Write the name of the recipe. The maximum number of characters is 8.
Device: Select the device where to save the recipe (Ram Disk or USB).
To safely execute the commands in this page (SAVE - LOAD - DELETE - FORMAT - COPY) it is
necessary to confirm the operation with the following popup.
Figure 109
