Moog IMI220-145D001 User Manual

PARISON CONTROLLER
moog
Moog Italiana srl - Bergamo MAN145-UM-D01A-EN 47
4 Description of the Screen Functions.
4.1 Main Menu.

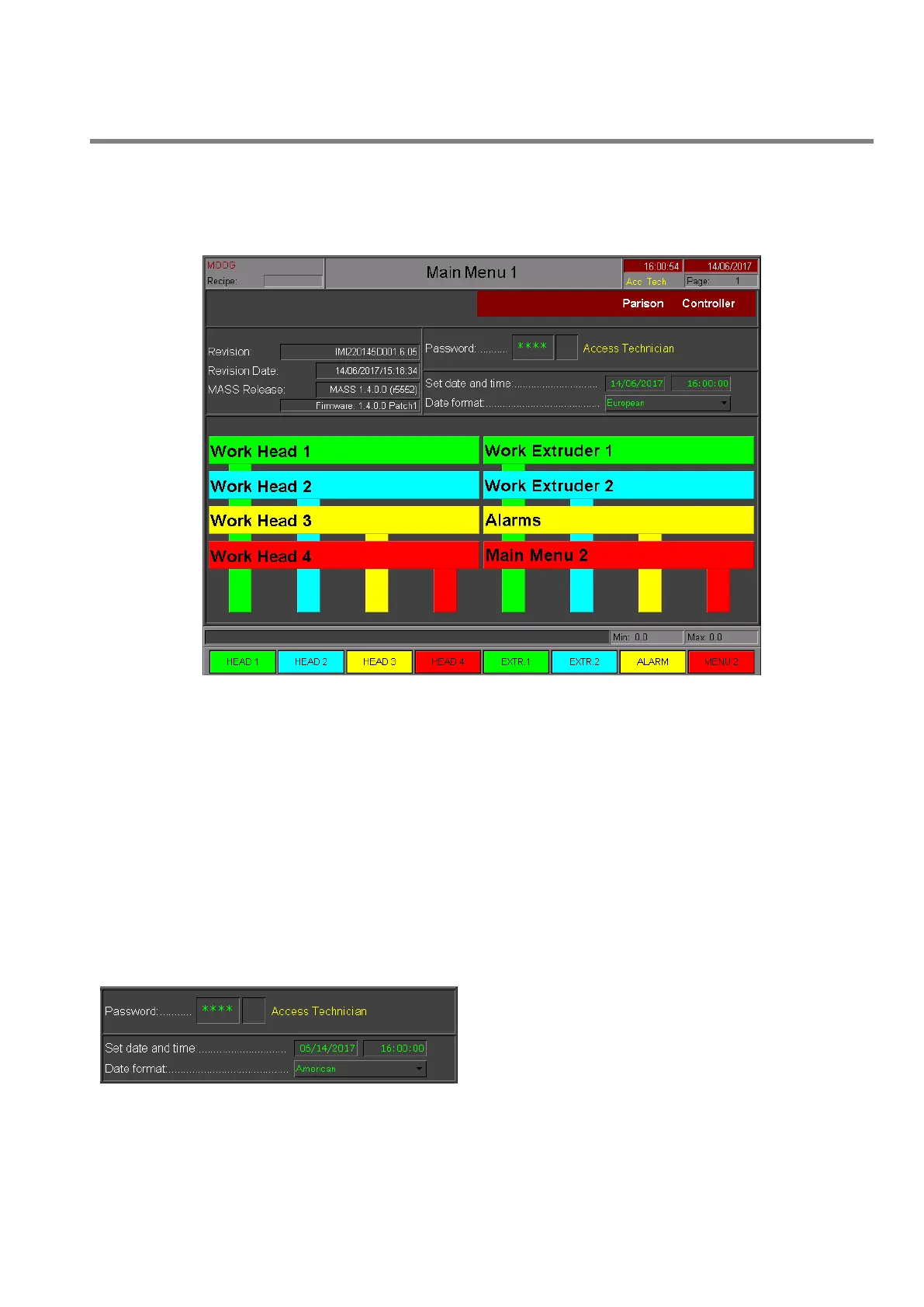

Figure 39
Main Menu: Main part of the Main Menu.
Access: From all pages with key F8.
Use: Change page to submenus using keys F1 to F8.
4.1.1 Password.
The password is a 4 character string; to insert the value:
 double-click on the field and then insert the string with the relative keyboard
 press Ent key to confirm the entry
 press Esc key to abandon the insertion
4.1.2 Date Change.
Figure 40
With Technician or Responsible password, the fields date,
actual time and data format will appear. To change any
value double-click the appropriate field and set the desired
value.
For example if you want to set 03/08/2017 (dd/mm/yy), you type 03082017 (as numeric fields) followed by Ent key.
Similarly for the actual time: if you want to set 08:50:00, you type 085000 followed by Ent key.
Is possible to select between European data format (dd/mm/yy) or American data format (mm/dd/yy).

Moog IMI220-145D001 Specifications

General

Brand	Moog
Model	IMI220-145D001
Category	Controller
Language	English
