Moog IMI220-145D001 User Manual

PARISON CONTROLLER
moog
74 MAN145-UM-D01A-EN Moog Italiana srl - Bergamo

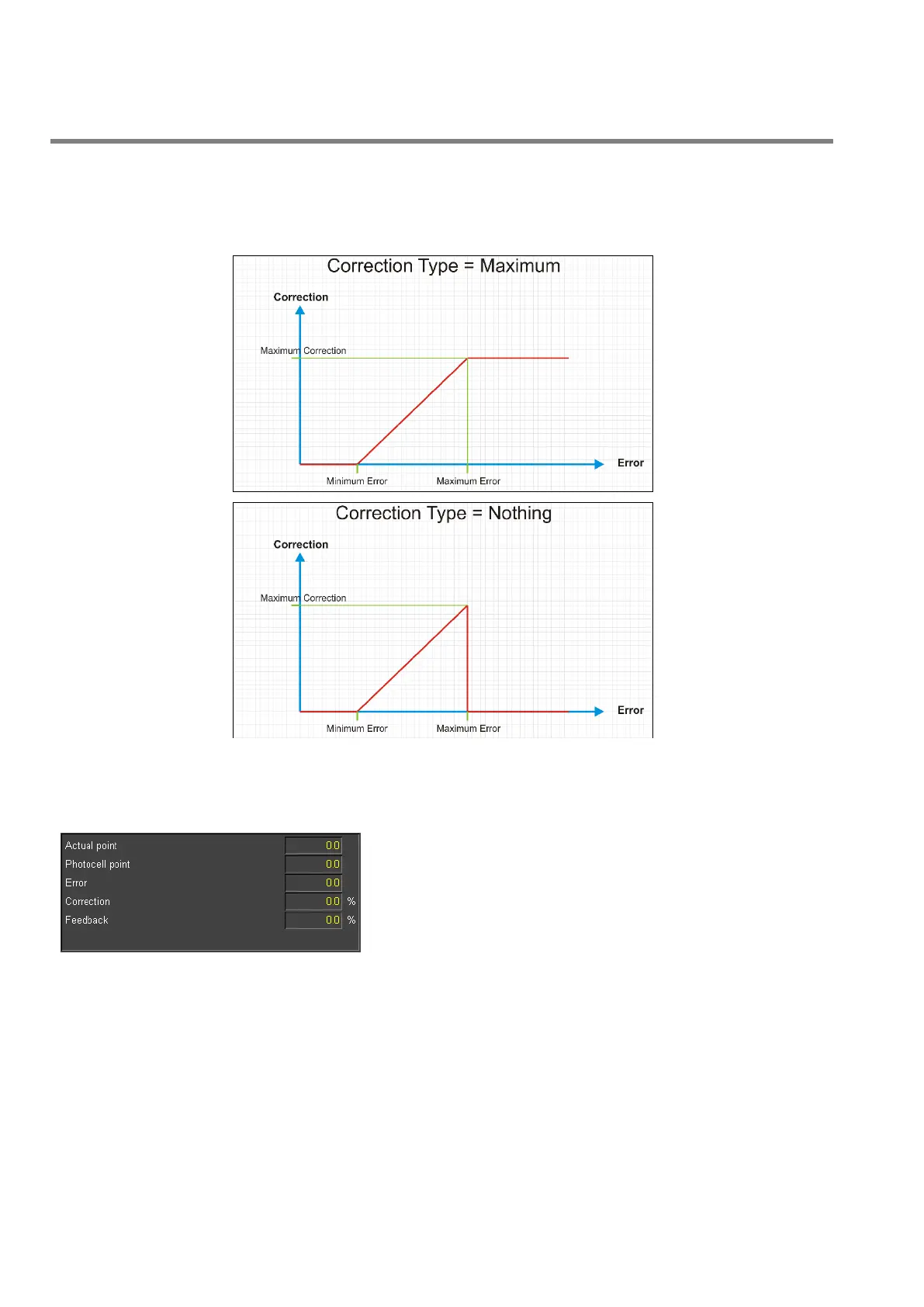

When the error is greater than Maximum error the correction can be of two types:
 Correction type = Maximum (The correction is the Maximum correction).
 Correction type = Nothing (No correction is made).
Figure 69
4.7.2 Correction.
Figure 70
Actual point: current point
Photocell point: working point triggered by the photocell signal
Error: difference between the control point and photocell point.
Correction: calculated value of correction that will be added to the
weight planned on the heads.
Feedback: real actual value.
