PARISON CONTROLLER
moog
Moog Italiana srl - Bergamo MAN145-UM-D01A-EN 77

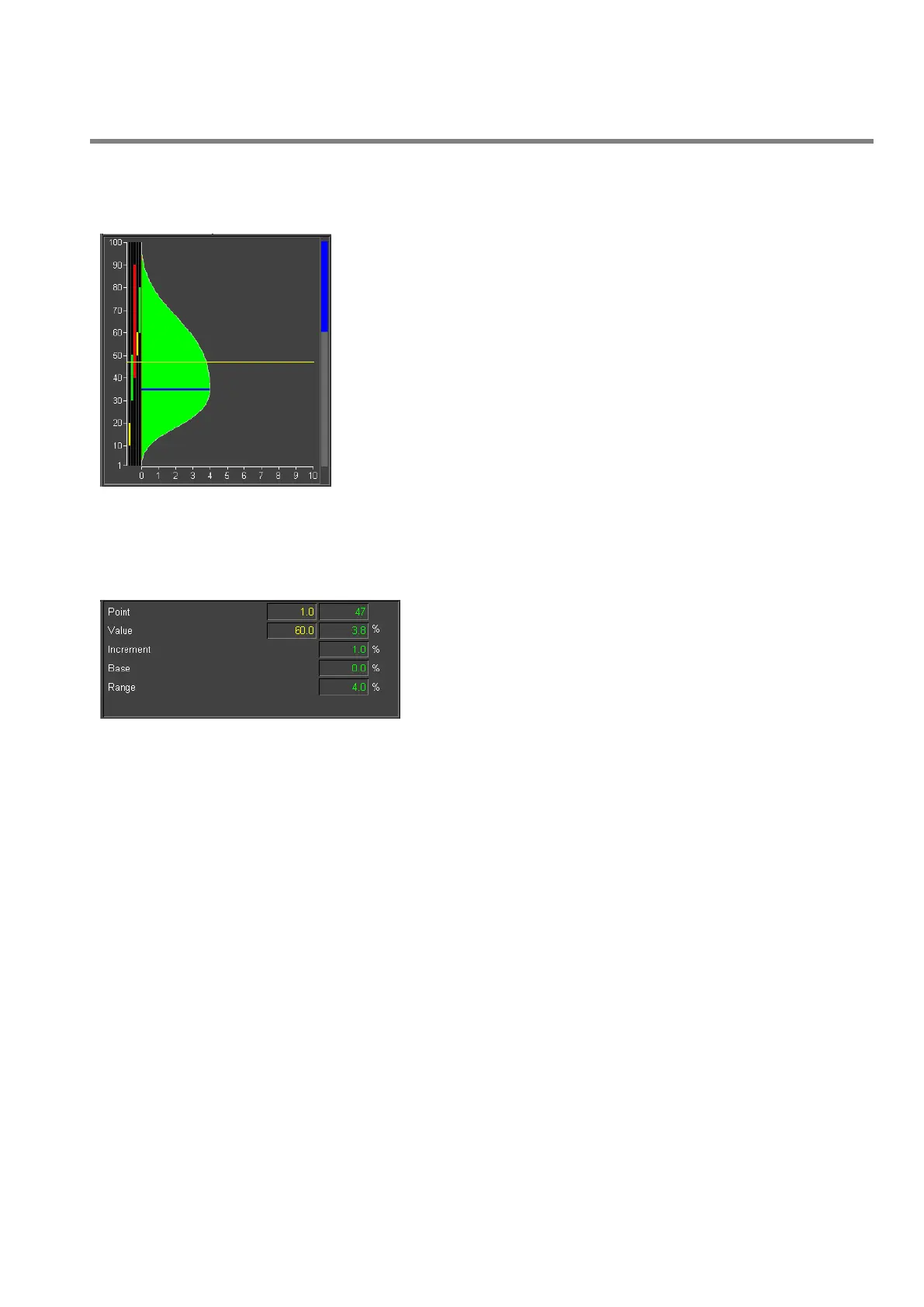

4.8.1 Profile Editor.
From left to right:
Vertical ruler: (white) From 1 to max 400 helps to navigate.
Horizontal ruler: (white) From 1 to max 100 %.
Serial Marker: Vertical logical state diagram that shows the state along the
profile.
Synchronisms: (only if enabled): 5 vertical lines, displays 5 synchronisms
signals defined by a couple of start and stop points. The line is yellow, if
working during Extrusion, green if working during Filling and red if working
both in Extrusion and Filling. Synchronisms are visible only on profile 1.
Bar graph: shows the working point of selected head as feedback. In case
of extrusion (or time based mode) the bar graph will be red and start at point
1. In case of filling (only accumulator mode) it is blue and starts at point max
400 (from top to bottom).
4.8.2 Profile parameters.
Point: The yellow value shows the actual point during the
movement; it follows the red bar graph on the right side of the
parison field. The green value shows the position of the cursor in the
parison field. Set this value (1 to 400 max) to change the cursor
position.
Value: The yellow value shows the actual feedback in %. The green
value shows in % the setpoint of the cursor point. By changing this
value it is possible to add a new setpoint or modify an existing one.
Increment: This is the increment / decrement that changes the setpoint of the cursor position in the parison field.
Base: Displays the minimum profile value. By changing the base it is possible to shift the whole profile. Range: 0%
to Max limit (Profile). The max limit added to the range must be inferior or equal to 100% (base + range <= 100).
Range: Displays the profile range as difference between maximum and minimum value. By changing the profile it
is possible to resize the entire profile. Range: 1% to Max limit ( Weight). The max limit added to the base must be
inferior or equal to 100% (base + range <= 100).
