PARISON CONTROLLER
moog
Moog Italiana srl - Bergamo MAN145-UM-D01A-EN 65
4.6 Head Setup.

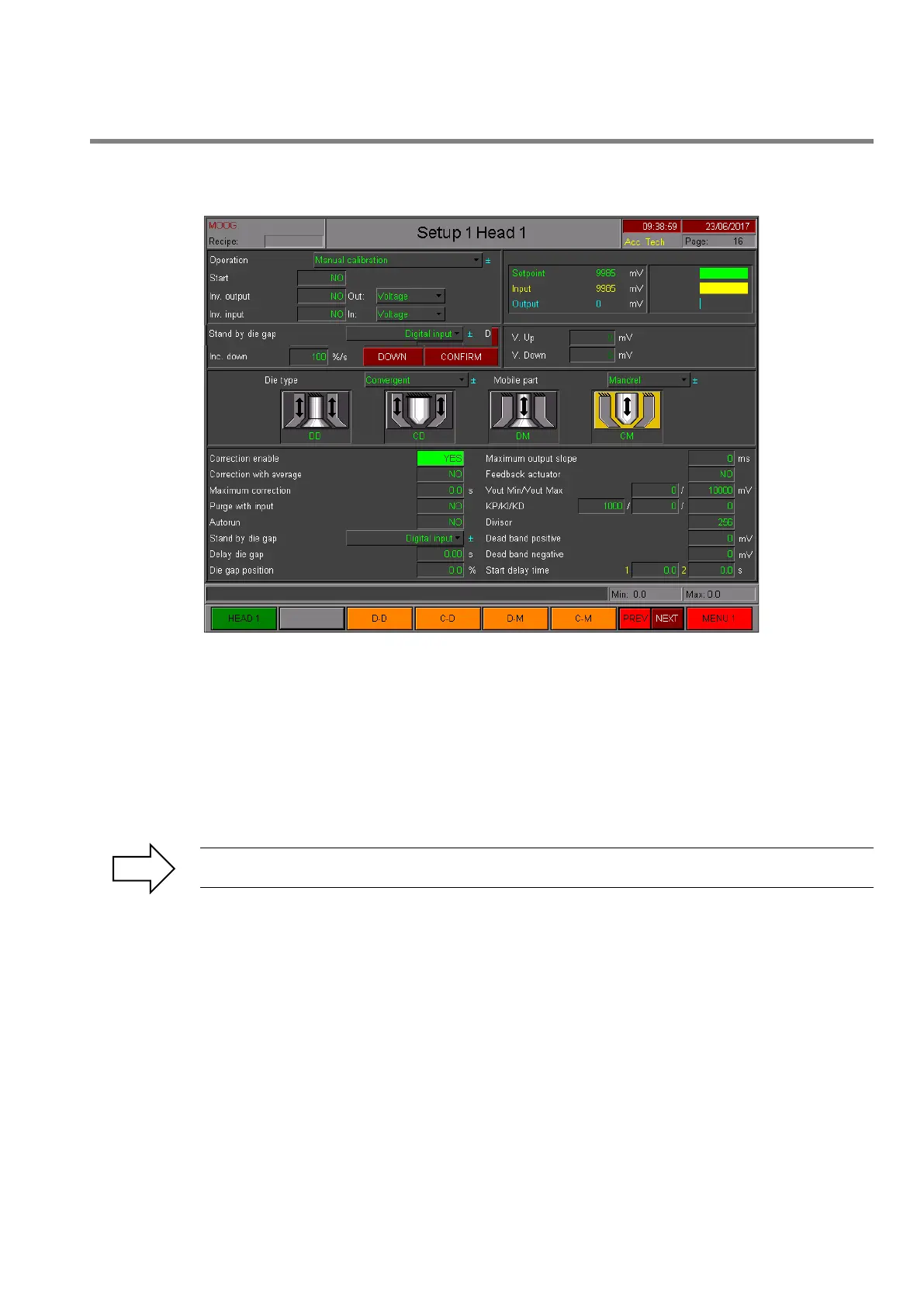

Figure 61
Setup 1| Head n: Setup 1 | Head n. page (n. = 1 to 4).
Access: From Work Page n. with key F1.
Use: For the calibration and the setup of the head parameters.
The regulator can operate in closed loop (with no-intelligent actuators) or in open loop (with intelligent actuators
that operate with an on-board closed loop). The input value is calibrated in range 0% - 100.00% through the
definition of upper stroke voltage and lower stroke voltage. In case of intelligent actuators the calibration points are
set to 0 mV and 10000 mV which are the correct values if no calibration is required.
In the normal polarity an increasing output command moves the actuator downwards (rod extracts)
and the feedback input value increases too.
It is possible to correct the polarity of both the command and feedback with specific settings in the setup page.
The procedure to check the wirings is described in the next chapter: “Check wirings”.
