PAR
ISON CONTROLLER
moog
Moog Italiana srl - Bergamo
MAN145-
UM
-D01A-
EN
61
4.5.6

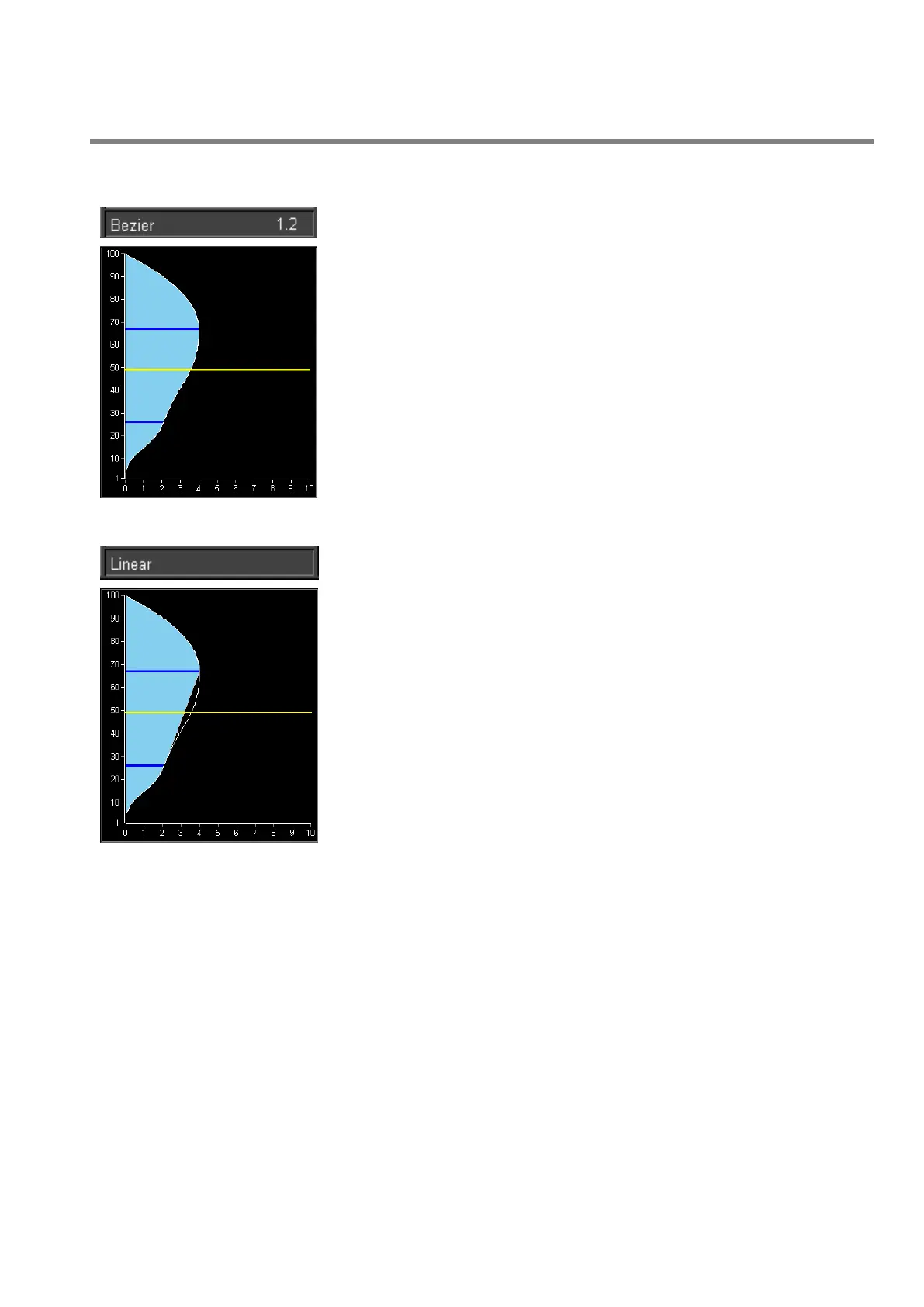

Interpolation.
Figure
53
Bezier:
Interpolation
between
two
m
asters:
the
interpolation
t
ype
visualized
corres
ponds
t
o
the
area
where th
e cursor
is
placed.
The
smooth
parameter
is
included between 0.
5 and 2.0 with step 0.1.
Figure
54
Linear:
Interpolation
between
two
m
asters:
the
interpolation
t
ype
visualized
corres
ponds
t
o
the
area
where the cursor is
placed.
60
62
Table of Contents
1 Installation
3
Installation Overview
3
Hydraulic Installation
4
Hydraulic Filtration
4
Servovalve Manifolds
4
Servoactuators
6
Flushing
6
A Word about Hydraulic Pumps
7
Transducers Installation
7
DCDT Position Transducers
8
Linear Position Transducer (Position Based Applications ONLY)
9
2 System Architecture
10
Terminal (Front)
10
Fast Access Keys and Knob
11
Usb Device
11
Display Led Panel
12
General
13
Colours Assignment for All
13
Page Header
13
Page Bottom
13
Change of Setpoints
14
The Parison Field
15
Field Appearance
15
Editing Profile
15
Normal Functioning
15
Other Possibilities
16
Other Function Keys Possibilities
17
Functionality
17
Safe Condition
17
Language Packages
17
Elements
18
Access
19
Keyboard Test Page
19
Machine Configuration
20
Continuous Extrusion or Time Accumulator
20
Position Accumulator
24
Control Update Rate
27
3 Hardware Description
28
Parison Controller Rack Based 600 Series (Rear)
28
Digital Input (Card IMI220-6100A001)
30
Digital Output (Card IMI220-6150A001)
30
Analog Input (Card IMI220-6200A001)
31
Analog Output (Card IMI220-6260A001)
31
Wiring
32
Terminal Measures
44
4 Description of the Screen Functions
47
Main Menu
47
Password
47
Date Change
47
Function Keys
48
Main Menu 2
49
Function Keys
49
Machine Setup
51
Function of the Machine
51
General Setup of the Machine
52
How to Chose the Correct Points Number
52
Machine Settings
53
Output Selection
53
Languages
53
Function Keys
55
Machine Setup 2
56
Machine Settings
56
Function Keys
57
Work Head N / Profile N
58
Profile Editor
58
Profile Parameters
58
Cycle Parameters
59
Die Gap
60
Weight
60
Interpolation
61
Synchronisms
63
Work Head N for PWDS Control
63
Function Keys
64
Head Setup
65
Check Wirings
66
Calibration
68
Die Type
69
Run Parameters
70
Regulator Parameters
70
Head Setup for PWDS
71
Function Keys
72
Head Setup 2
73
Control Length Parameters
73
Correction
74
Function Keys
75
Accumulator
76
Profile Editor
77
Profile Parameters
77
Accumulator Parameters
78
Real Position
79
Synchronisms
79
Function Keys
80
Setup Accumulator
81
Digital Accumulator
81
Run Parameters
82
Regulator Parameters
84
Function Keys
84
Work Extruder
85
Extruder Command
86
Velocity Increment and Decrement
86
Function Keys
86
Analog Extruder Setup
87
Extruder Type
87
Input Calibration
87
Output Calibration
88
Velocity Planned
88
Velocity Control
88
Function Keys
89
Digital Extruder Setup
90
Function Keys
91
Timer Switch
92
Enable Timer Switch
92
Weekly Start and Stop Time
93
Function Keys
93
Input / Output
94
Digital Input
94
Digital Output
95
Analog Input
95
Analog Output
95
Function Keys
95
Production
96
Production Parameters
96
Function Keys
97
Edit Profile
98
Copy in the Profile
98
Active Profiles on Heads
98
Function Keys
99
Recipe
100
Recipe Management
100
Index of the Recipes
101
Copy Recipe
101
Info of the Recipes
102
Function Keys
102
Alarms
103
Definitions Alarms Parameters
103
List of the Alarms
104
Function Keys
107
Print on File
108
