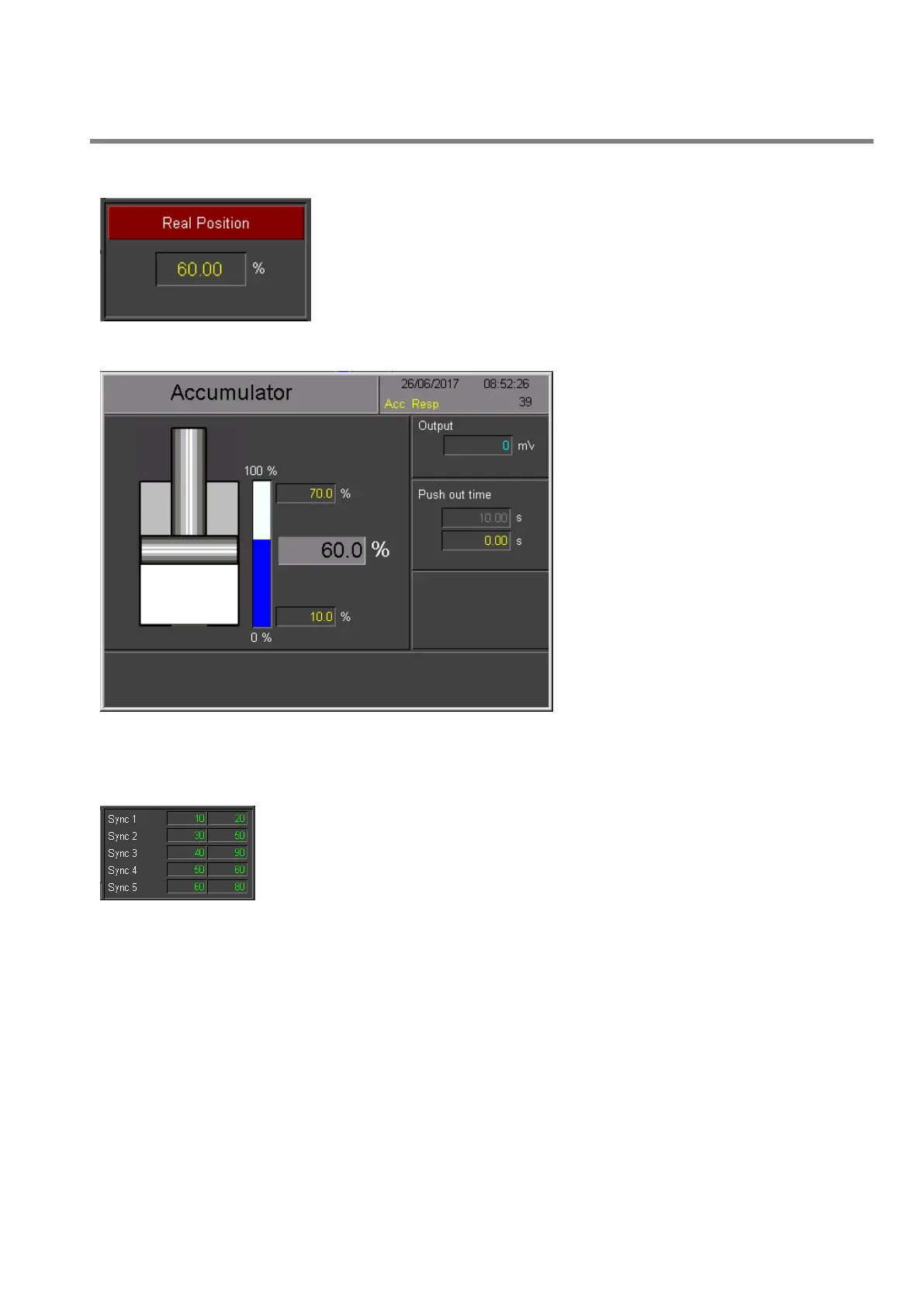

Accumulator popup window.
Output: output command value.
Push out time: extrusion time; if Time
control extrusion is enabled.
The red bar graph shows the real
accumulator position. (the value is the
yellow field with red background colour).
The two yellow fields without background
colour show the real end of filling and end
of extrusion values in case of the start
correction is enabled.
The led shows if the accumulator is in end
of filling position or in end of extrusion
position.
Last correction: last velocity correction if
enabled in the setup extruder page
Synchronisms: Only if enabled in machine setup page. Each synchronism is defined
by a pair of start and stop points along the profile (1…400 max). They are represented
also by vertical lines on the left of the profile-edit-field. They can be activated during
the extrusion, during the filling or in both movements.
