PARISON CONTROLLER
moog
90 MAN145-UM-D01A-EN Moog Italiana srl - Bergamo

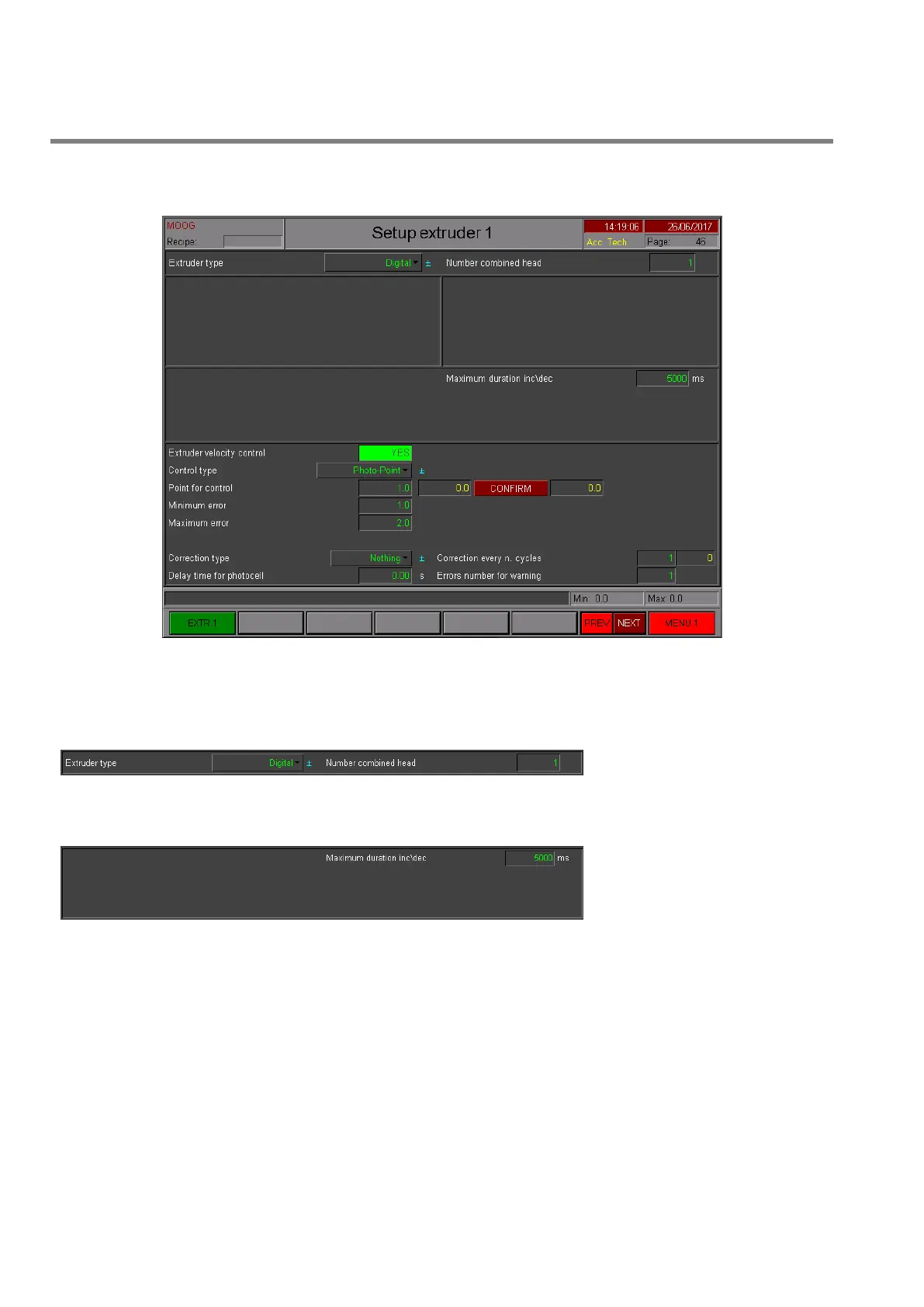

4.12 Digital Extruder Setup.
Figure 93
Extruder setup n.: Extruder Setup page n° (n° = 1 to 2).
Access: From Work Extruder Page 1 key F1.
Use: It is possible to setup the Extruder parameters.
Extruder type: to select the digital
extruder.
Number combined head: Only with continuous extrusion and control length profile enabled select the number of
the Head associated to the Extruder (1 to 4).
Figure 94
Maximum duration inc\dec:
maximum duration in millisecond of
the increment or decrement.
Errors lower than dead band values (in point) are not considered.
An error between the maximum and minimum error (inside the window) is scaled on a maximum correction value
(in millisecond). The correction is applied to the inc\dec digital output (output 9\10 extruder 1, output 11\12 extruder
2).
An error greater than the window can be ignored or cause the maximum correction (maximum duration).
