3 Hardware Description.

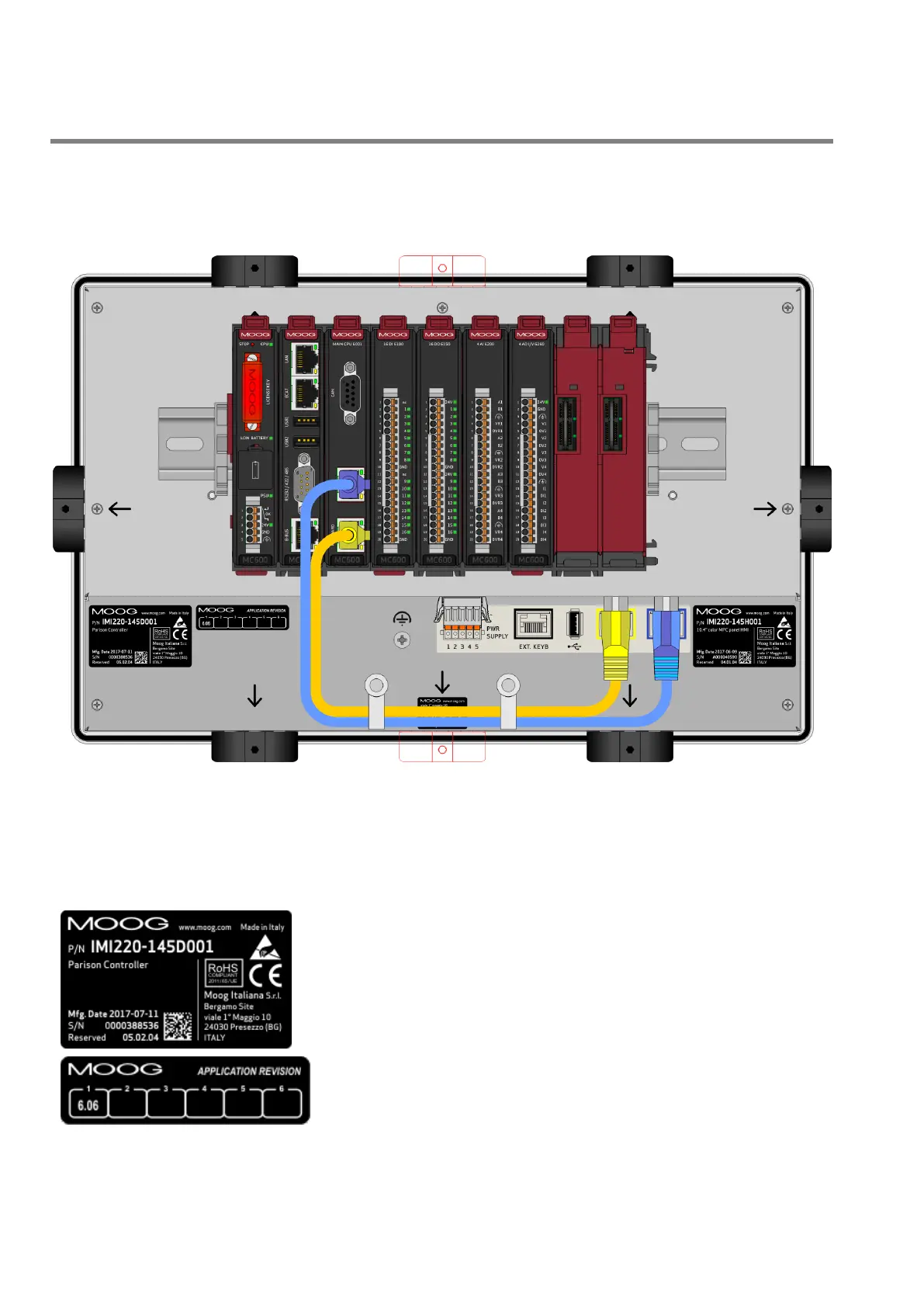

3.1 Parison Controller Rack based 600 Series (Rear).
Figure 29
Place 1/2/3 Card IMI220-6001A001 (POWER SUPPLY – MAIN CPU – HMI DRIVER).
Place 4 Card IMI220-6100A001 (16 Digital Input card 24Vdc).
Place 5 Card IMI220-6150A001 (16 Digital Output 24V 0.5A card).
Place 6 Card IMI220-6200A001 (4 Analog Input 16 Bit).
Place 7 Card IMI220-6260A001 (4 Analog Output I/V 16 Bit).
P/N: Ordering code (Product Code: 145; Release Level: D; hardware
equipment: 001).
Mfg. Date: Release date.
S/N: Serial number.
Reserved: Code reserved to the qualified personnel.
Application Revision
