PARISON CONTROLLER
moog
98 MAN145-UM-D01A-EN Moog Italiana srl - Bergamo

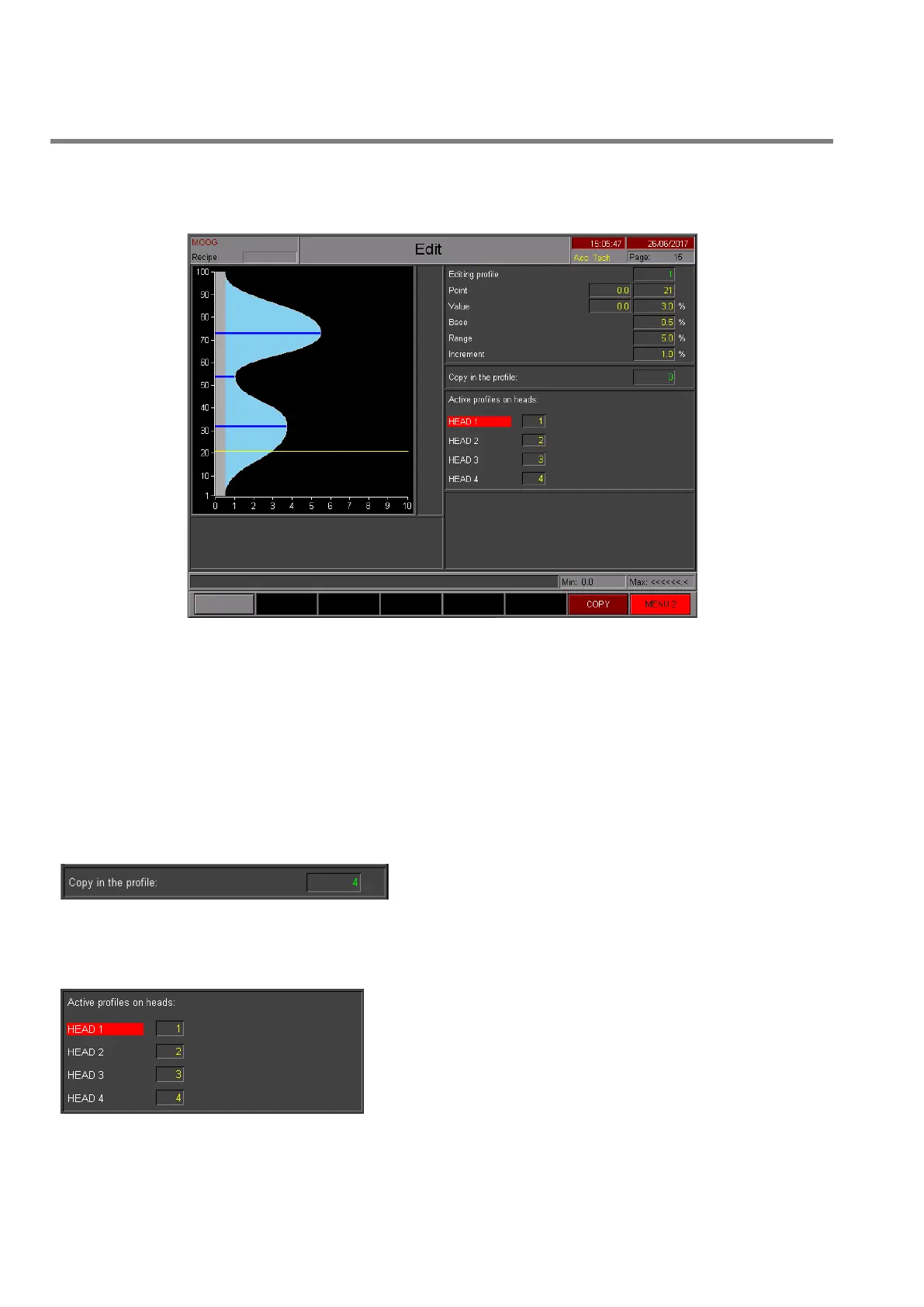

4.16 Edit Profile.
Figure 106
Edit: Edit page.
Access: From Main Menu 2 with key F1 (Edit) with the field Free profiles assignment ON (in the setup machine
page).
Use: In this page it is possible to create a new profile and copy the one visualized in another if it is not already
active on a head.
With the red line it is possible to see where the displayed profile is already active.
4.16.1 Copy in the profile.
Copy in the profiles: Pressing the function key F7 the profile
currently visualized is copied in the suitable profile in this field.
It's not possible to perform this function if the suitable profile is
already assigned to a head (See Active profiles on heads).
4.16.2 Active profiles on heads.
Active profiles on heads: It is possible to see the used heads
and which profile is associated to the relative head. The red
line displays where is active the selected profile.
